Запчасти Case IH 7140 (6-044) - TRANSMISSION, RANGE HOUSING, TRANSMISSION S/N AJB0044915 AND AFTER (06) - POWER TRAIN

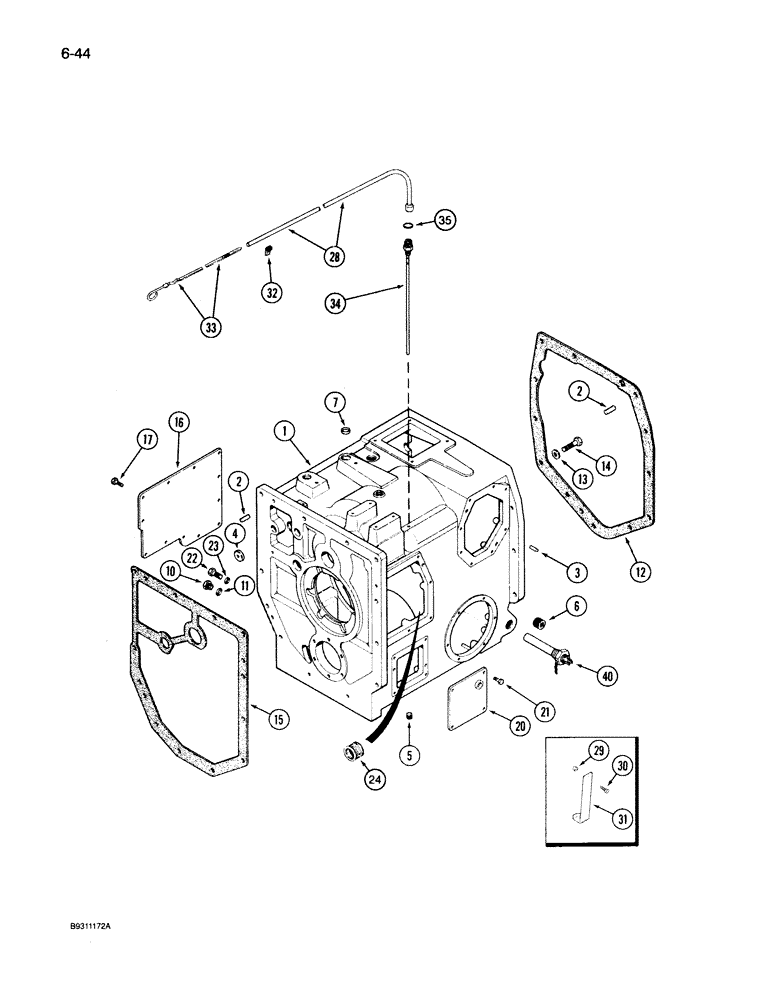

Схема запчастей Case IH 7140 - (6-044) - TRANSMISSION, RANGE HOUSING, TRANSMISSION S/N AJB0044915 AND AFTER (06) - POWER TRAIN
16
4
22
24
12
31
30
10
2
7
28
13
35
40
14
20
32
29
21
2
11
3
17
5
15
34
1
6
23
33

Артикул

Название

Примечание

Количество

1

1342885C1

HOUSING

ASSEMBLY - range, Includes: Ref. 2 thru 7, Start Serial: AJB0055133

1шт.

1

1342697C1

HOUSING

ASSEMBLY - range, Includes: Ref. 2 thru 7, Serial Range: AJB0044915-AJB0055132

1шт.

2

837-16035

DOWEL,M16 x 35

PIN - dowel, 16 x 35 mm

4шт.

3

837-12025

DOWEL,M12 x 25

PIN - dowel, 12 x 25 mm

2шт.

4

148681C1

PLUG

- support, lube tube, if used

1шт.

5

9409961

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4 inch PT

1шт.

6

23391R1

PLUG

- square socket head, 1-1/4 inch PT, Without heater

1шт.

7

41600D

PLUG,Cup, 1 1/8"

- cup, 1-1/8 inch diameter, Without hitch

1шт.

10

214389

PLUG,3/4" - 16 ORB

without MFD, Includes Ref. 11 Hex Hd, 3/4"-16 ORB

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

87390949

GASKET,0.79mm Thk

- housing

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

12шт.

14

813-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Hex, M16 x 55, 8.8

10шт.

14

813-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

15

92821C2

GASKET,0.79mm Thk

- housing, axle, Replaces: 92821C1

1шт.

16

93364C1

COVER

- access, shift fork

1шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

20

1976744C2

COVER ASSY

COVER - opening, brake

1шт.

21

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex, 10 x 20 mm

4шт.

22

613-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

23

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Replaces: A7982) -114, 70 Duro, .612" ID x .103" Thk

2шт.

24

301533R1

NEEDLE BEARING,Needle, 44.44mm ID x 53.96mm OD x 38.1mm W

BEARING - front, pinion shaft

1шт.

28

1340584C1

HYD TUBE,1" OD, 1063, 240 mm Length

TUBE - dipstick

1шт.

29

825-1406

NUT,M6, Cl 8

1шт.

30

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

31

1342132C1

SUPPORT

BRACKET - dipstick, With hitch

1шт.

31

1342155C1

SUPPORT

BRACKET - dipstick, Without hitch

1шт.

32

S77322

CLAMP

- tube, Replaces: A38799 and 98959R1

1шт.

33

1342137C2

DIPSTICK

ASSEMBLY - level, oil

1шт.

34

1968044C2

TUBE,250 mm Length

- dipstick, internal

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

536850R1

HEATER

ASSEMBLY - oil, transmission, steel cap not serviced separately

1шт.

Выбрано товаров: 32
