Запчасти Case IH 7140 (6-042) - TRANSMISSION, RANGE HOUSING, PRIOR TO TRANSMISSION S/N AJB0044915 (06) - POWER TRAIN

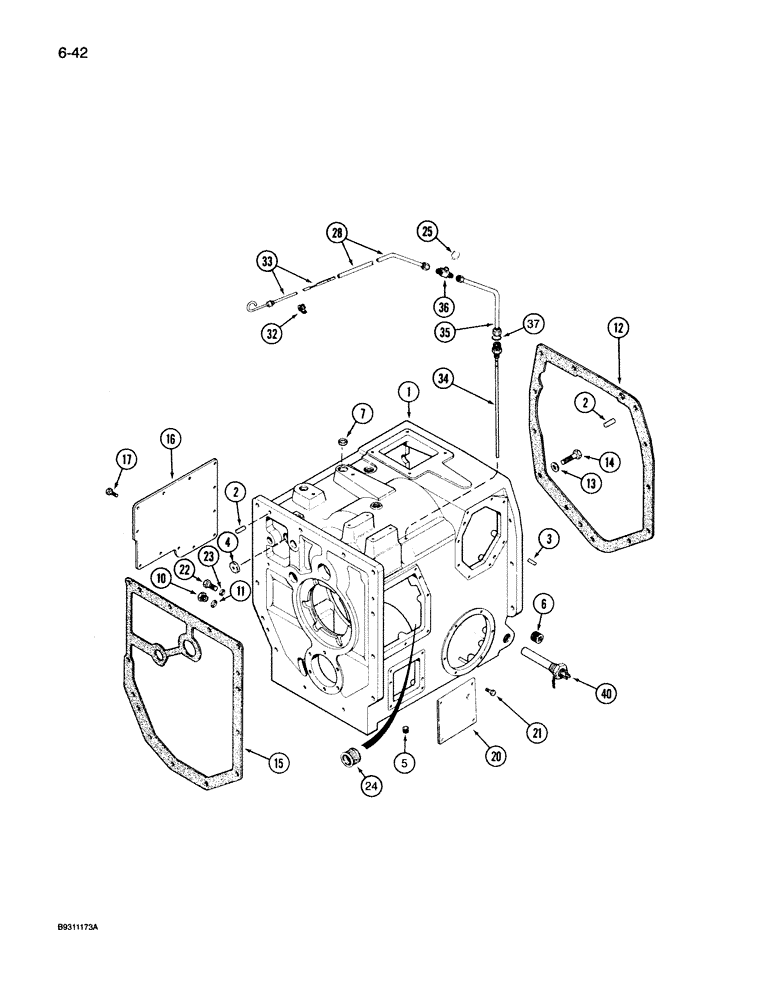

Схема запчастей Case IH 7140 - (6-042) - TRANSMISSION, RANGE HOUSING, PRIOR TO TRANSMISSION S/N AJB0044915 (06) - POWER TRAIN
15
20
23
3
36
28
11
17
10
13
1
40
12
34
22
32
2
25
4
24
35
2
16
33
21
5
6
37
7
14

Артикул

Название

Примечание

Количество

1

1963821C3

HOUSING

ASSEMBLY - range, Includes: Ref. 2-7

1шт.

2

837-16035

DOWEL,M16 x 35

PIN - dowel, 16 x 35 mm

4шт.

3

837-12025

DOWEL,M12 x 25

PIN - dowel, 12 x 25 mm

2шт.

4

148681C1

PLUG

- support, lube tube

1шт.

5

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket head, 3/4-14 inch

1шт.

6

23391R1

PLUG

- square socket head, 1-1/4 inch PT, Without heater

1шт.

7

41600D

PLUG,Cup, 1 1/8"

- cup, 1-1/8 inch diameter, Without hitch

1шт.

10

214389

PLUG,3/4" - 16 ORB

without MFD, Includes Ref. 11 Hex Hd, 3/4"-16 ORB

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

87390949

GASKET,0.79mm Thk

- housing, Replaces: 93410C1

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

12шт.

14

813-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Hex, M16 x 55, 8.8

10шт.

14

813-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

15

92821C1

GASKET

- housing, axle

1шт.

16

93364C1

COVER

- access, shift fork

1шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

20

1976744C2

COVER ASSY

COVER - opening, brake

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

22

613-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

23

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

24

301533R1

NEEDLE BEARING,Needle, 44.44mm ID x 53.96mm OD x 38.1mm W

BEARING - front, pinion shaft

1шт.

25

1971726C1

BREATHER,1/4" - 18

ASSEMBLY - housing

1шт.

28

1968118C1

HYD TUBE,0.5" OD

TUBE - dipstick

1шт.

32

S77322

CLAMP

- tube

1шт.

33

1968124C2

DIPSTICK

ASSEMBLY - level, oil

1шт.

34

1968044C2

TUBE,250 mm Length

- dipstick, internal

1шт.

35

1968119C1

HYD TUBE,0.5" OD

TUBE - dipstick, short

1шт.

36

1954128C1

TEE

- breather

1шт.

40

536850R1

HEATER

ASSEMBLY - oil, transmission, steel cap not serviced separately

1шт.

Выбрано товаров: 29
