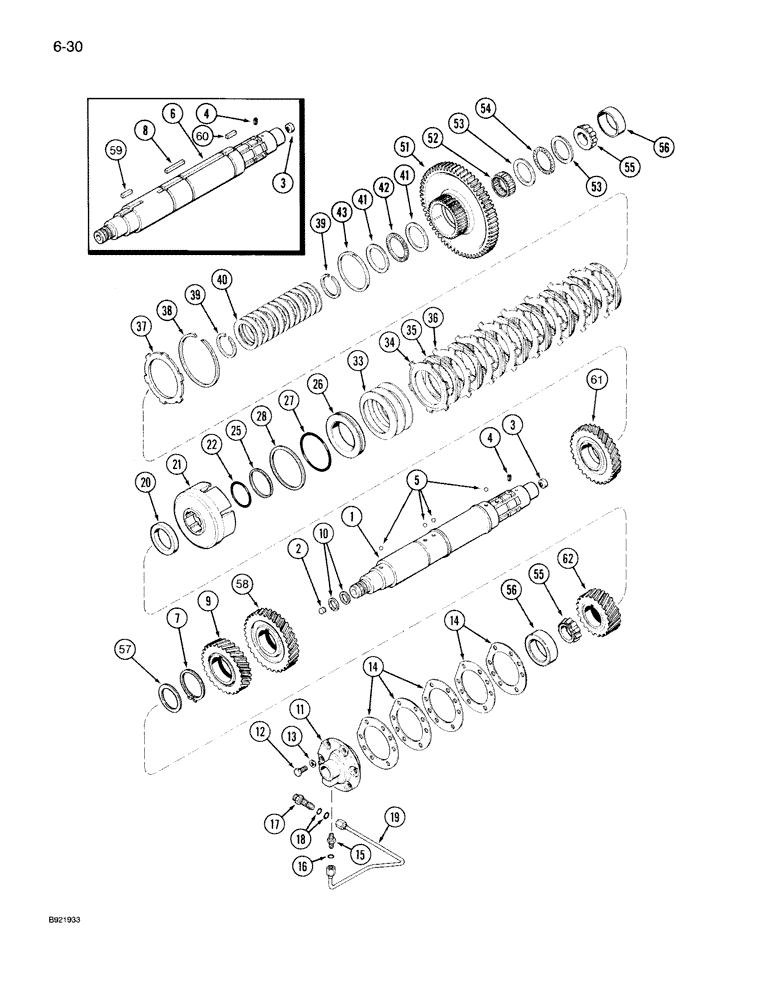

Запчасти Case IH 7140 (6-030) - TRANSMISSION SPEED, COUNTERSHAFT WITH CREEPER (06) - POWER TRAIN

1

1342318C1

SHAFT

COUNTERSHAFT ASSEMBLY - transmission, Includes: Ref. 2-4

1шт.

2

1286084C1

PIN,12.02mm OD x 11mm L

- dowel, 12 mm

2шт.

3

92825C1

CAP WASHER

PLUG - countershaft

1шт.

4

1963875C1

COTTER PIN

PIN - slotted spring

1шт.

5

211-210

BALL,3/8" Dia

- 3/8 inch, Grade 25

4шт.

6

92845C2

SHAFT

COUNTERSHAFT ASSEMBLY - transmission, If equipped, Also includes Refs. 2, 3 and 4

1шт.

7

304697C1

SNAP RING,#293, Ext

Ring, Snap, #293, Ext

1шт.

8

1286010C1

KEY

- center, shaft, If equipped

1шт.

9

1285983C1

DRIVING GEAR

GEAR - driver, third and fourth speed, 34T

1шт.

10

144242C3

RING,Locking, 28.43mm ID x 33.43mm OD x 3.8mm Thk

- seal, 33 mm

2шт.

11

92828C1

BEARING ASSY,33 mm ID x 148 mm OD x 52.8 mm

- bearing

1шт.

12

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 25 mm

6шт.

12

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm, If equipped

6шт.

13

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

- flat, hardened, 11 x 24 x 3 mm

6шт.

1264551C2

STRIPPER PACKAGE

SHIM KIT - bearing, Includes: Ref. 14

1шт.

14

120647C2

SHIM,0.080mm Thk

Bearing, 2 in kit 0.080mm Thk

1шт.

14

120648C2

SHIM,0.100mm Thk

Bearing, 2 in kit 0.100mm Thk

1шт.

14

120649C2

SHIM,0.130mm Thk

Bearing, 2 in kit 0.130mm Thk

1шт.

14

120650C2

SHIM,0.300mm Thk

Bearing, 2 in kit 0.300mm Thk

1шт.

14

120651C2

SHIM,0.760mm Thk

Bearing, 2 in kit 0.760mm Thk

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - short, 9/16-18 inch flare x O-ring boss, Incl. Ref. 16

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

(Replaces 237-6006) -012, 90 Duro, .364" ID x .070" Thk

1шт.

17

93104C2

UNION

- bulkhead

1шт.

19

92848C1

TUBE,.375" OD

- pressure

1шт.

20

92824C1

SPACER,63.65mm ID x 88.9mm OD x 14mm L

- carrier

1шт.

21

92797C1

CLUTCH HOUSING

CARRIER - clutch

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, low

1шт.

25

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

- piston, shift

1шт.

26

1285998C1

PISTON

- clutch

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - low, piston

1шт.

28

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston shift

1шт.

33

93129C1

BELLEVILLE WASHER

- Belleville, cushion

3шт.

34

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction

1шт.

35

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction

8шт.

36

92934C2

DISC

- separator

7шт.

37

1342645C2

CLUTCH DISC

DISC - backing, clutch, Replaces 1285994C1

1шт.

38

1285996C1

SNAP RING,151mm OD, Internal

RING - retaining

1шт.

39

93350C1

RING

- retaining, external

2шт.

40

1286012C2

BELLEVILLE WASHER

- Belleville, piston return

13шт.

41

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, bearing

2шт.

42

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle

1шт.

43

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal

1шт.

51

92795C1

PINION

GEAR - driven, creeper

1шт.

52

80906C1

BEARING ASSY,57.14mm ID x 66.7mm OD x 31.75mm W

BEARING ASSEMBLY - needle, caged

1шт.

53

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, bearing

2шт.

54

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

BEARING ASSEMBLY - thrust, needle

1шт.

55

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

CONE ASSEMBLY - bearing

2шт.

56

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing

2шт.

57

80910C1

THRUST WASHER

WASHER - thrust, If equipped

1шт.

58

1285986C1

GEAR

- driven, first, third and fifth speed, 39T

1шт.

59

1286011C1

KEY

- gear, If equipped

1шт.

60

1286009C1

KEY

- front, gear, If equipped

1шт.

61

1285989C1

GEAR

- driven, second, fourth and sixth speed, 37T

1шт.

62

1285981C1

GEAR

- driver, first and second speed, 29T

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
