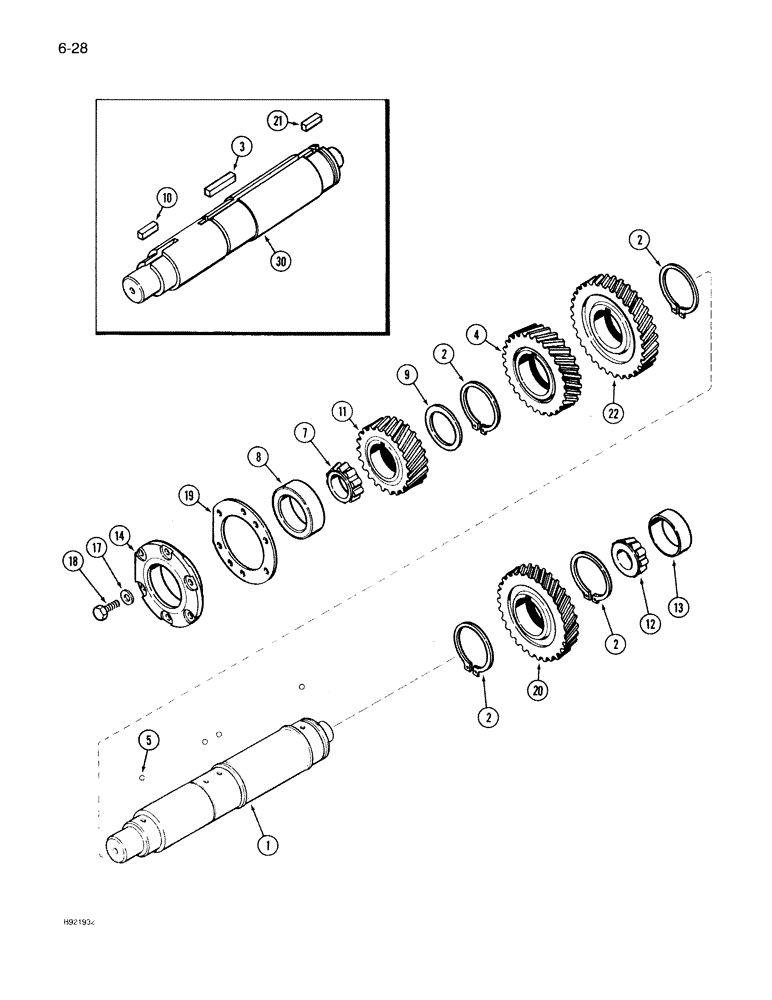

Запчасти Case IH 7140 (6-028) - TRANSMISSION SPEED, COUNTERSHAFT WITHOUT CREEPER (06) - POWER TRAIN

1

1342253C1

SHAFT

- counter

1шт.

2

304697C1

SNAP RING,#293, Ext

Ring, Snap, #293, Ext

2-4шт.

3

1286010C1

KEY

- center, shaft, If equipped

1шт.

4

1285983C1

DRIVING GEAR

GEAR - driver, third and fourth speed, 34T

1шт.

5

211-210

BALL,3/8" Dia

- 3/8 inch, Grade 25

4шт.

7

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CONE ASSEMBLY - bearing

1шт.

8

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - bearing

1шт.

9

80910C1

THRUST WASHER

WASHER - thrust, If equipped

1шт.

10

1286011C1

KEY

- rear, shaft, If equipped

1шт.

11

1285981C1

GEAR

- driver, first and second speed, 29T

1шт.

12

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

CONE ASSEMBLY - bearing

1шт.

13

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing

1шт.

14

1286000C3

ROLLER CAGE BEARING,82 mm ID x 148 mm OD x 9.9, 19 mm

- bearing

1шт.

17

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

- flat, 11 x 24 x 3 mm, If equipped

6шт.

18

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 25 mm

6шт.

1264551C2

STRIPPER PACKAGE

SHIM KIT - bearing, Includes: Ref. 19

1шт.

19

120647C2

SHIM,0.080mm Thk

Bearing, 2 in kit 0.080mm Thk

1шт.

19

120648C2

SHIM,0.100mm Thk

Bearing, 2 in kit 0.100mm Thk

1шт.

19

120649C2

SHIM,0.130mm Thk

Bearing, 2 in kit 0.130mm Thk

1шт.

19

120650C2

SHIM,0.300mm Thk

Bearing, 2 in kit 0.300mm Thk

1шт.

19

120651C2

SHIM,0.760mm Thk

Bearing, 2 in kit 0.760mm Thk

1шт.

20

1285989C1

GEAR

- driven, second, fourth and sixth speed, 37T

1шт.

21

1286009C1

KEY

- gear, If equipped

1шт.

22

1285986C1

GEAR

- driven, first, third and fifth speed, 39T

1шт.

30

1286004C1

SHAFT

- counter, Order 1342253C1

1шт.
