Запчасти Case IH 7140 (5-060) - FRONT WHEEL, MFD TRACTOR, WITH 4-1/4 INCH AND 5-1/4 INCH DISC OFFSET (05) - STEERING

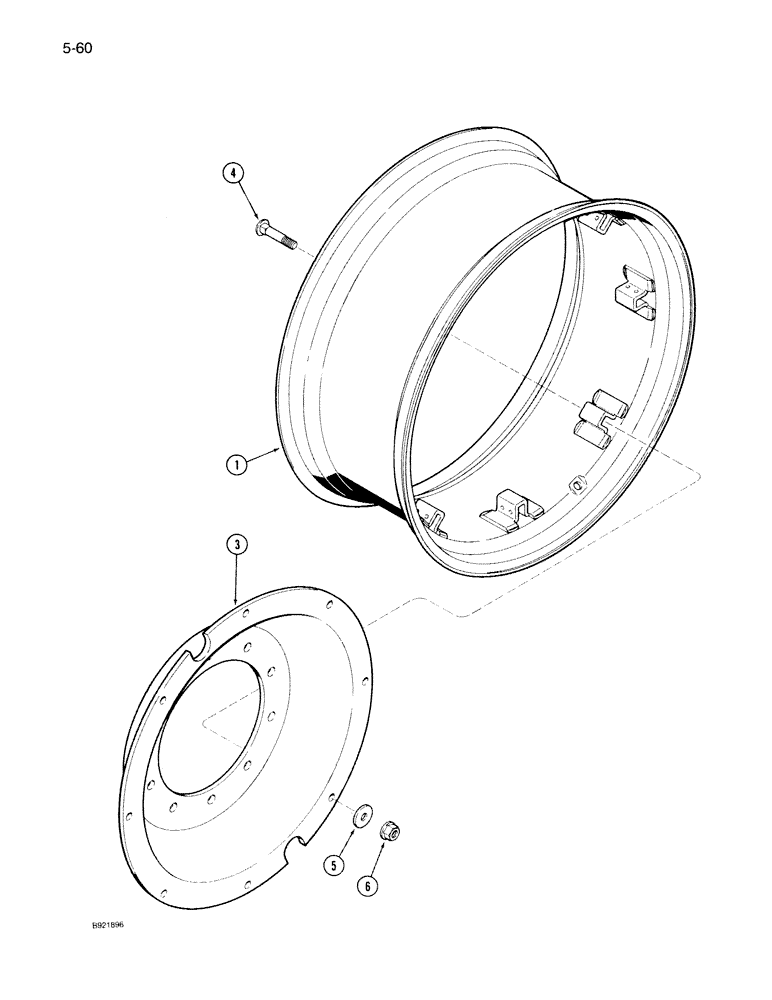

Схема запчастей Case IH 7140 - (5-060) - FRONT WHEEL, MFD TRACTOR, WITH 4-1/4 INCH AND 5-1/4 INCH DISC OFFSET (05) - STEERING
4
3
5
6
1

Артикул

Название

Примечание

Количество

1334496C1

WHEEL

ASSEMBLY - front, for 13.6 and 14.9 x 28 tire, Machinery Item, Includes: Ref. 1-6

2шт.

1

A185508

RIM

- wheel

1шт.

3

1334431C1

DISC

- wheel 5-1/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

1334501C1

WHEEL

ASSEMBLY - front, for 14.9 x 30 tire, Machinery Item, Includes: Ref. 1-6

2шт.

1

1334499C1

RIM

- wheel

1шт.

3

1334555C1

DISC

- wheel 5-1/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

1334494C1

WHEEL

ASSEMBLY - front, for 16.9 x 28 tire, Machinery Item, Includes: Ref. 1-6

2шт.

1

A185509

RIM

- wheel

1шт.

3

1334431C1

DISC

- wheel 5-1/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

1334495C1

WHEEL

ASSEMBLY - front, for 16.9 and 18.4 x 26 tire, Machinery Item, Includes: Ref. 1-6

2шт.

1

A185510

RIM

- wheel

1шт.

3

1334430C1

DISC

- wheel 4-1/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 5/8 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex flange, 5/8 inch NC

8шт.

1978522C1

WHEEL ASSY.

WHEEL ASSEMBLY - front, for 16.9 x 30 tire, Machinery Item, Includes: Ref. 1-6

2шт.

1

1978525C1

RIM

- wheel

1шт.

3

1334555C1

DISC

- wheel 5-1/4 inch offset

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

8шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC

8шт.

A20058

VALVE STEM

VALVE STEM - Tubeless tire, not shown

2шт.

Выбрано товаров: 31
