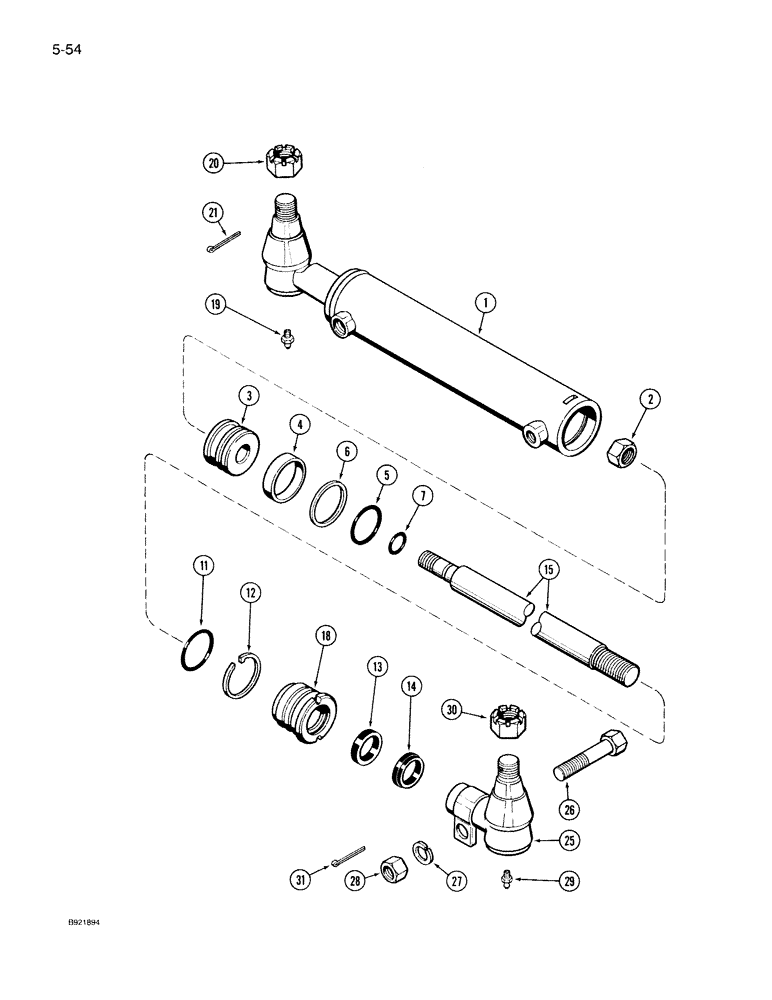

Запчасти Case IH 7140 (5-054) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR, 1349019C1 AND 1349018C1 (05) - STEERING

1349019C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering axle, left, Includes: Ref. 1 thru 21

1шт.

277765A1R

REMAN-HYD CYLINDER

7130, 7140 Both (10/87-12/93), 7150 (11/91-12/93), Reman for New P/N 1349019C1

1шт.

277765A1C

CORE-HYD CYLINDER

Return Number

1шт.

1349018C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering axle, right, Includes: Ref. 1 thru 21

1шт.

277766A1R

REMAN-HYD CYLINDER

7130, 7140, 7150, All (10/87-12/93) w/MFD, Reman For new P/N's 1349018 & 277766A1,

1шт.

277766A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282023C1

LOCK NUT

- hex lock, cylinder rod

1шт.

3

1277263C1

PISTON

- cylinder

1шт.

1957983C1

SEAL KIT

SEAL KIT - cylinder repair, Includes: Ref. 4-14

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - wear

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

1971565C1

PISTON ROD

ROD - cylinder, right Shown

1шт.

15

1277264C1

ROD

- cylinder, left

1шт.

18

1277265C1

CYLINDER END CAP

GLAND - piston rod

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45°, 1/8 PT x 7/8 inch

1шт.

20

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF

1шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

25

1277261C1

BALL JOINT

JOINT ASSEMBLY - ball, cylinder, Includes: Ref. 26-31

2шт.

26

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- hex, 5/8 NF x 2-3/4 inch

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

425-1110

NUT,5/8"-18, G5

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45°, 1/8 PT x 7/8 inch

1шт.

30

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF

1шт.

31

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.
