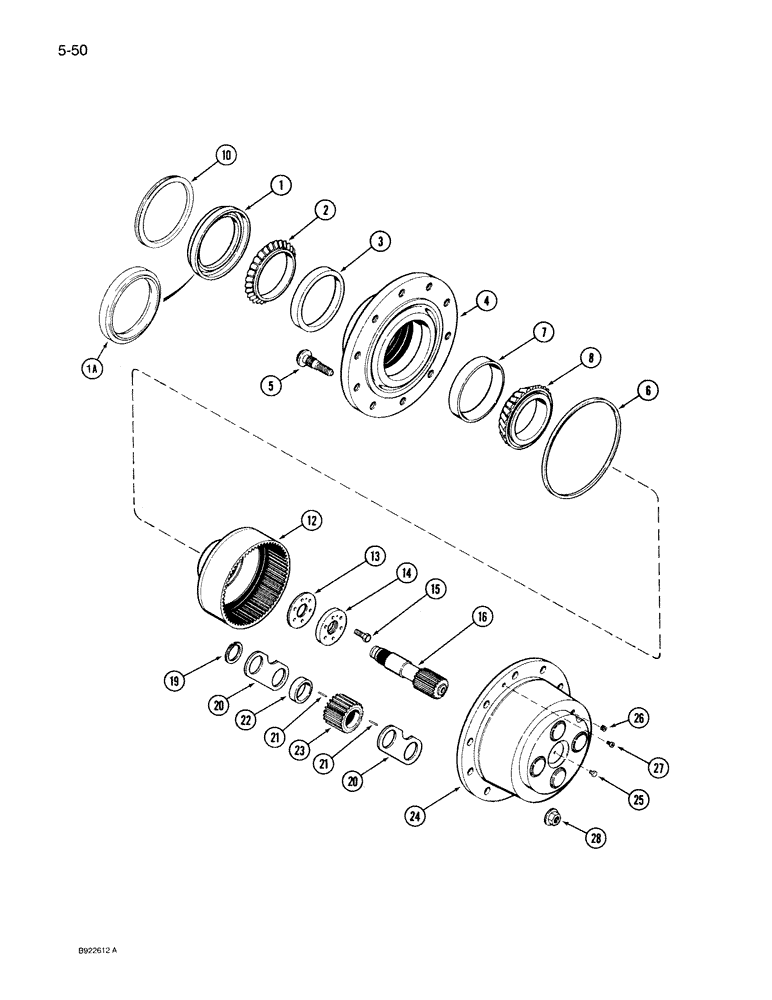

Запчасти Case IH 7140 (5-050) - FRONT AXLE PLANETARIES AND HUB, MFD TRACTOR (05) - STEERING

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, MFD tractor Replaces: P/N A183552, Includes: Ref. 1-27 in this figure and parts in Figures 5-042 thru 5-046 and 5-052 and 5-054

1шт.

1

1961763C1

OIL SEAL

- oil, wheel hub, if used

2шт.

1a

128648A1

OIL SEAL

- oil, wheel hub, if used

2шт.

2

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

BEARING - inner

2шт.

3

1277344C1

BEARING CUP

CUP - bearing, inner

2шт.

4

1944402C1

HUB

- front wheel, remanufactured

2шт.

4

1944403C1

HUB ASSY.

HUB - front wheel, use this part number to return hub for credit when using a remanufactured hub

2шт.

4

1349338C1

HUB

- front wheel, new Replaces: P/N 1961760C1

2шт.

5

1997468C1

STUD,3/4" - 16 x 67.2mm, Grade 5

BOLT - wheel Replaces: P/N S68212

20шт.

6

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

If equipped -274, Cl 8, 9.984" ID x .139" Thk

2шт.

Shim kit and Ref. 6 have a 6 hole pattern.

1шт.

7

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing, outer

2шт.

8

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

BEARING - outer

2шт.

10

1349339C1

SEAL,171mm ID x 187mm OD x 12mm Thk

- V-ring

1шт.

12

1277250C1

GEAR, RING

GEAR - planetary ring

2шт.

1981236C1

SHIM KIT

- wheel end, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.001 inch

5шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.002 inch

5шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.005 inch

5шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.010 inch

5шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.020 inch

5шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.030 inch

5шт.

14

1981278C1

LARGE PLATE

PLATE - retaining, planetary carrier

2шт.

15

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

6шт.

16

1961770C1

GEAR

- sun, planetary drive

2шт.

16

1961770C1R

REMAN-GEAR

- Sun, planetary drive

2шт.

16

1961770C1C

CORE-GEAR

Reman Return Number

2шт.

19

28606R1

SNAP RING,#175, 1.673", Ext Spiral

RING - retaining

4шт.

20

1277372C2

SPACER

- flat Replaces: P/N 1277372C1

4шт.

21

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

BEARING Qty. 376 each side- needle (replaces Qty. 476 each side)

752шт.

22

1277371C1

SPACER

- bearing

4шт.

23

1349038C1

PINION

GEAR - planetary

4шт.

24

1969847C1

FLANGE

CARRIER - planetary gears

1шт.

25

FOR444613

PLUG

- hex head pipe, 1/8 inch if equipped

1шт.

There was a vented plug on early production. The P/N for the vented plug is P/N 27632R1

1шт.

26

444667

PLUG

- square socket, 1/2-14 inch PT

1шт.

27

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket, 1/4 NC x 1/2 inch

4шт.

28

1280579C1

WHEEL NUT

- hex flange, wheel

20шт.
