Запчасти Case IH 7140 (5-038) - TIE RODS AND STEERING LINKAGE, TWO WHEEL DRIVE (05) - STEERING

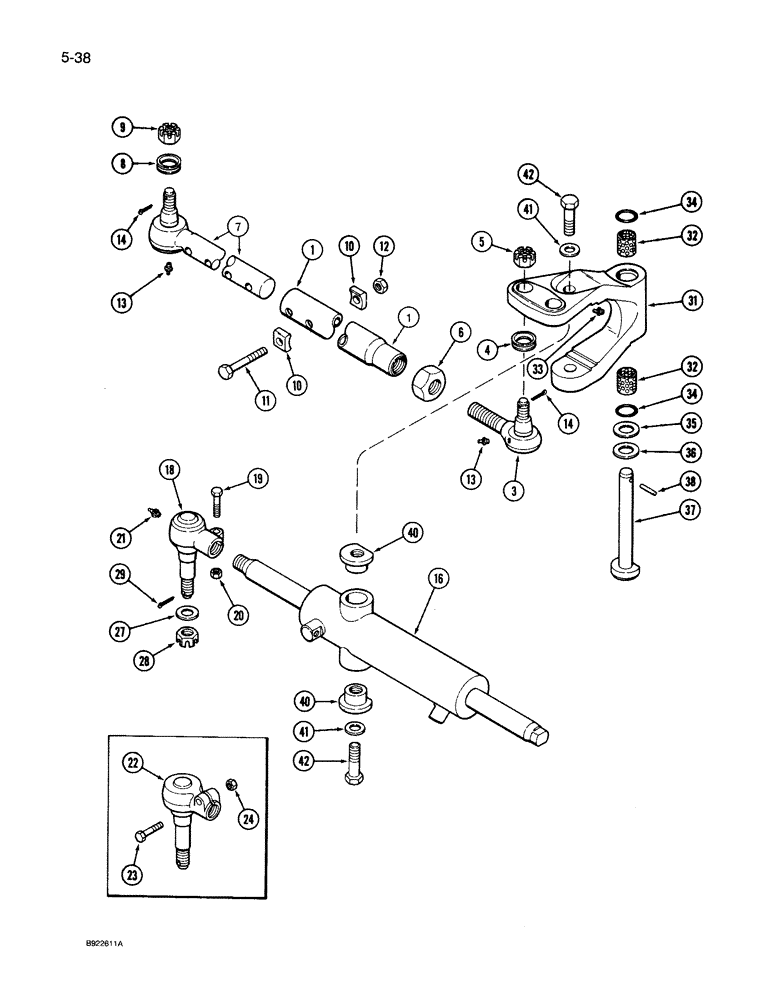

Схема запчастей Case IH 7140 - (5-038) - TIE RODS AND STEERING LINKAGE, TWO WHEEL DRIVE (05) - STEERING
22
37
8
7
14
23
1
32
29
31
10
16
24
40
12
38
14
40
34
28
13
32
35
21
34
20
42
33
4
42
19
41
6
11
27
9
13
5
1
41
10
18
36
3

Артикул

Название

Примечание

Количество

1270788C1

DRAG LINK

TIE ROD ASSEMBLY - steering, Includes: Ref. 1-13

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

- tie rod

1шт.

3

1280658C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end, Includes: Ref. 4-5

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

5

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.5

1шт.

6

1280661C1

NUT

NUT - hex jam, 1-1/8" inch NF

1шт.

7

1280662C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, Includes: Ref. 8-9

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

9

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.5

1шт.

10

A43369

CLAMP

- tie rod

4шт.

11

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

12

131-1133

NUT,3/8"-24, GC

NUT - hex center lock, 3/8 inch NF

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figure 5-032

1шт.

1280566C2

BALL JOINT

JOINT ASSEMBLY - end ball, steering cylinder, Includes: Ref. 18-24

1шт.

18

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, TRW, Includes: Ref. 19-21

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

131-463

NUT,3/8"-16

NUT - hex, heavy lock, 3/8 inch NC

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

22

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, 0&S, Includes: Ref. 23-24

1шт.

23

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

24

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex lock, 7/16 inch NC

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

28

25-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT - hex slotted, 7/8 inch NF

1шт.

29

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

31

1259579C5

ARM

ASSEMBLY - center, steering Replaces: P/N 1259579C4, Includes: Ref. 32

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

- steering arm, center

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

1шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", if used

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 x 1-1/4 inch

2шт.

35

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

36

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch Replaces: P/N 495-81073 1/16 inch thich washer

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

PIN - pivot, center arm

1шт.

38

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

40

1259582C3

FITTING

- cap, trunnion Replaces: P/N 1259582C2

2шт.

41

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

42

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT, Hex, M20 x 60, 10.9, Full Thd

2шт.
