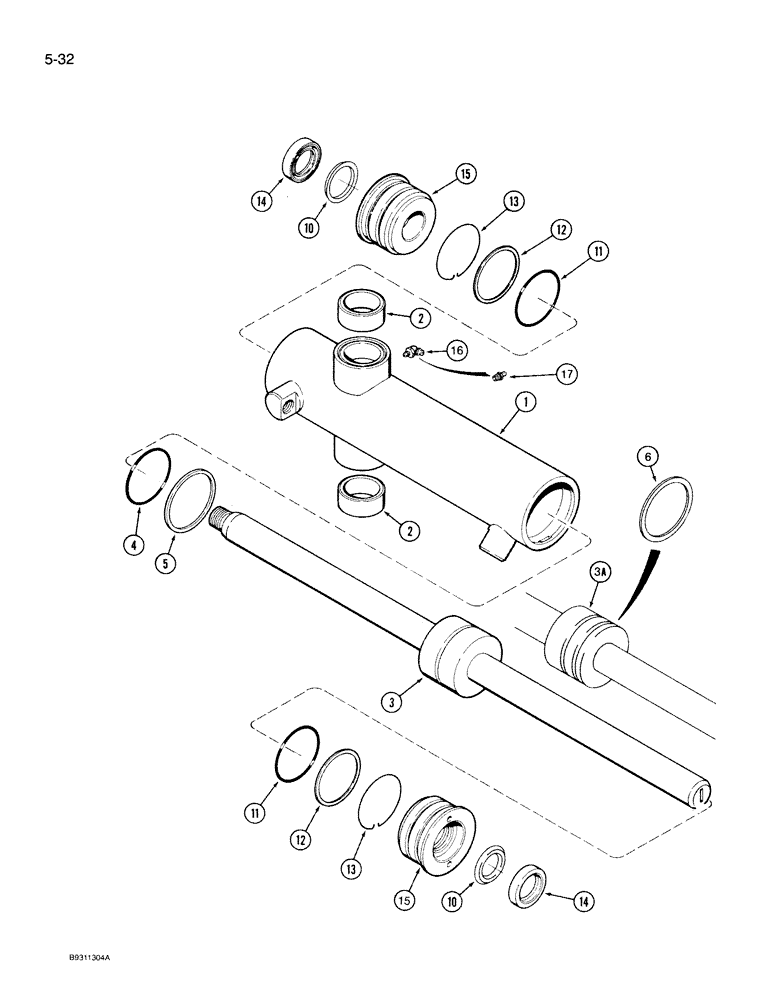

Запчасти Case IH 7140 (5-032) - STEERING CYLINDER ASSEMBLY, TWO WHEEL DRIVE (05) - STEERING

93194C6

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, uses Ref.16, 65° fitting Replaces: P/N 93194C5, no longer available, Order: P/N 93194C8 cylinder, Includes: Ref. 1 thru 15

1шт.

93194C9R

REMAN-HYD CYLINDER

7150 (11/91-12/93), 7130, 7140, Both (NORTH AMERICA) (10/87-12/93), All CASE IH MAGNUM TRACTOR, CYLINDER ASSEMBLY - steering, Reman For New PN 93194C6

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

93194C7

CYLINDER

ASSEMBLY - steering, uses Ref. 17, straight fitting, no longer available, Order: P/N 93194C8 cylinder, Includes: Ref.1 thru 15

1шт.

93194C9R

REMAN-HYD CYLINDER

7150 (11/91-12/93), 7130, 7140, Both (NORTH AMERICA) (10/87-12/93), All CASE IH MAGNUM TRACTOR, CYLINDER ASSEMBLY - steering, Reman For New PN 93194C7

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, uses Ref. 17, straight fitting, Includes: Ref.1-15

1шт.

93194C9R

REMAN-HYD CYLINDER

7150 (11/91-12/93), 7130, 7140, Both (NORTH AMERICA) (10/87-12/93), All CASE IH MAGNUM TRACTOR, CYLINDER ASSEMBLY - steering, Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE - cylinder body Replaces:P/N 1954124C3, Includes: Ref. 2

1шт.

2

1255304C1

BUSHING

- pivot

2шт.

3

1255306C4

PISTON ROD

ROD - piston, cylinder Replaces: P/N 1255306C2, no longer available, Order: P/N 1255306C5 rod and P/N 80448C2 seal kit

1шт.

3a

1255306C5

PISTON ROD

ROD - piston, cylinder, used with Ref. 6 bearing

1шт.

80448C2

SEAL KIT

KIT - seal Replaces: P/N 80448C1, Includes: Refs. 4-14

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL - piston, cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - 1255306C5 piston rod

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- piston rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

End -143, 90 Duro, 2.425" ID x .103" Thk

2шт.

12

1255311C1

WASHER

- backup

2шт.

13

1255312C1

RETAINING WIRE

RING - retaining

2шт.

14

D95141

WIPER SEAL

SEAL - wiper, piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - end, cylinder

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch, used with P/N 91394C5 or P/N 93194C6 cylinder only, if used

2шт.

17

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", Used with P/N 93194C7 or P/N 93194C8 cylinder only, if used

2шт.
