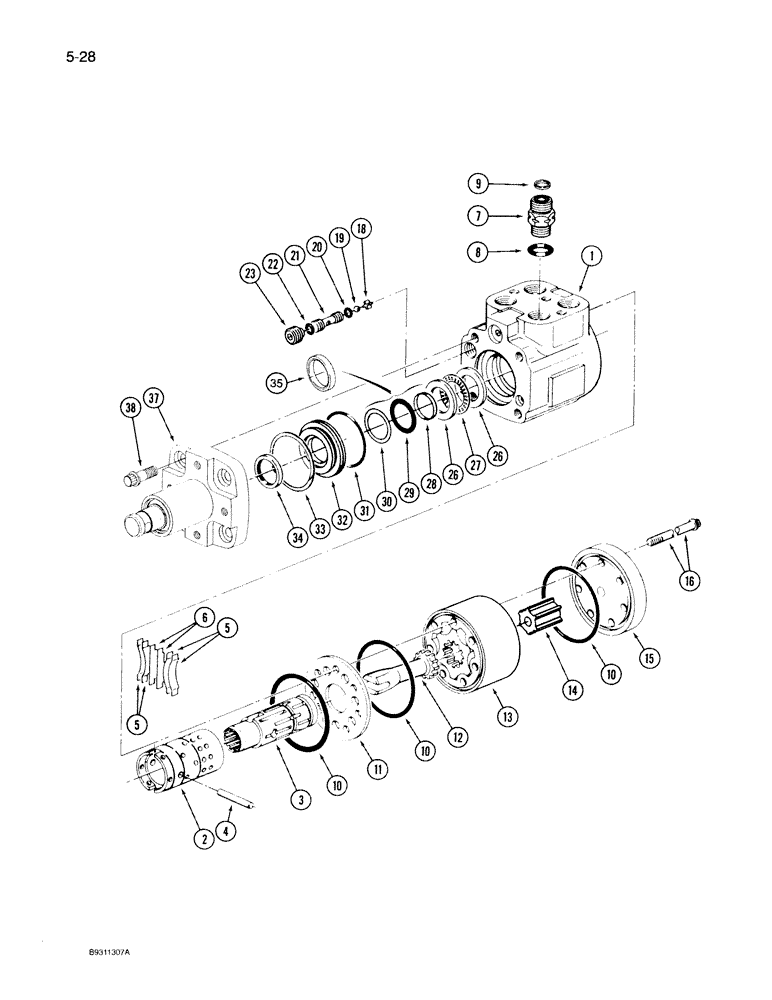

Запчасти Case IH 7140 (5-028) - STEERING PUMP ASSEMBLY, EATON PUMP, MFD TRACTOR (05) - STEERING

1542617C2

PUMP

ASSEMBLY - steering Replaces: 1542617C1, Includes: Ref. 1-35

1шт.

Does Not Include Housing Pump Column 1343647C1

1шт.

Must Order 1343647C1 Separately to Complete crossover from TRW Pump to Eaton Pump.

1шт.

225390A2R

REMAN-HYD PUMP

7130, 7140, Both (10/87-12/93), 7150 (11/91 - 12/93), Reman For New P/N's 1542617C2 & 225390A2

1шт.

225390A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1978326C1

PUMP

ASSEMBLY - steering, no longer available, order 1542617C2 pump, Includes: Ref. 1 thru 35

1шт.

225390A2R

REMAN-HYD PUMP

7130, 7140, Both (10/87-12/93), 7150 (11/91 - 12/93), Reman For New P/N's 1978326C1

1шт.

225390A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND CONTROL ASSEMBLY - pump, Includes: Ref. 1 thru 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump, includes check valves

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering Not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet Not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

L30888

PIN

- centering

1шт.

N14250

KIT

SPRING KIT - centering, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering Set of six springs

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

7

1343649C1

VALVE, CHECK

VALVE ASSEMBLY - check used with P/N 1978326C1 pump only, Includes: Ref. 8 and 9

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - end cap

3шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

DRIVE - gerotor

1шт.

13

1343637C1

GEAR-SET

GEROTOR ASSEMBLY - pump

1шт.

14

1343645C1

SPACER

- gerotor

1шт.

15

D82809

COVER

CAP - end

1шт.

16

1343640C1

12 PT SCREW,Flg, 5/16" - 24 x 2 1/4", Gr 8

BOLT, 12 Pt Flg, 5/16"-18 x 2 1/4", G8

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-208

BALL,5/16" Dia

- check

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL , 7/16 x 5/16 x 1/16 in

1шт.

21

D82806

VALVE SEAT

SEAT - check ball

1шт.

22

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - 3/8 inch ID

1шт.

Part of pump SEAL KIT, P/N 1343658C2

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Assy - Needle

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, if used

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

if used -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

30

N13314

RING

- backup, if used

1шт.

31

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - 1-7/8 inch ID

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

A28211

OIL SEAL

- 1 inch ID

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - shaft, if used

1шт.

Part of pump SEAL KIT, P/N 1343658C2

1шт.

37

1343647C1

HOUSING

COLUMN ASSEMBLY - pump, no longer included with pump, purchase separately

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.

1343658C2

SEAL KIT

SEAL KIT - pump, Includes: Ref. 10, 20, 22, 28 - 31, 34 and 35

1шт.
