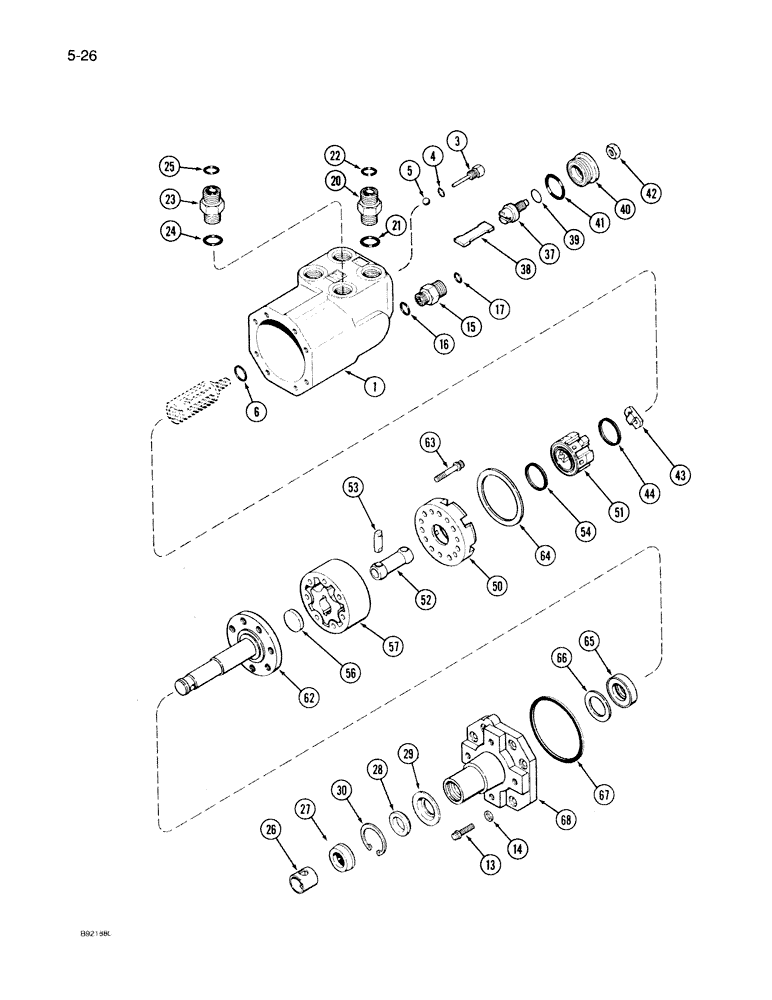

Запчасти Case IH 7140 (5-026) - STEERING PUMP ASSEMBLY, TRW PUMP, IF EQUIPPED, MFD TRACTOR (05) - STEERING

92850C2

PUMP

ASSEMBLY steering, order 1542617C2 pump on Figure 5-028, Includes: Refs. 1-68

1шт.

1

NSS

NOT SOLD SEPARAT

BODY steering

1шт.

3

1301867C91

PIN ASSY.

PIN ASSEMBLY, guide, Includes: Ref. 4

1шт.

4

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

5

17009R1

BALL

9/32 inch diameter

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 ID x 1/16 inch

1шт.

9

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

13

1957916C1

BOLT (SPREADER),1/4" - 28 x 1"

BOLT cap retaining

8шт.

14

1957917C1

WASHER

retaining bolt

8шт.

15

1957910C1

VALVE

ASSEMBLY, check, Includes: Refs. 16-17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

20

1957911C1

VALVE

ASSEMBLY, inlet check, Includes: Refs. 21-22

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

23

1957912C1

VALVE

ASSEMBLY, outlet check, Includes: Refs. 24-25

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

26

1957915C1

COLLAR CLAMP

COLLAR input shaft

1шт.

1957914C3

SEAL KIT

KIT shaft, Replaces: P/N 1957914C2, Includes: Refs. 27-30

1шт.

27

1986512C1

SEAL

shaft

1шт.

28

1986530C1

WASHER

backup

1шт.

29

1986513C1

SEAL

shaft

1шт.

30

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

37

A45194

ADJUSTMENT SCREW

SCREW ASSEMBLY, adjusting, Includes: Ref. 38

1шт.

38

1971540C1

FAN

BLADE torsion

2шт.

39

A45195

O-RING,0.556" ID x 0.073"

adjusting screw

1шт.

40

A47006

PLUG

ASSEMBLY, adjusting screw, Includes: Ref. 41

1шт.

41

A47005

O-RING,1.053" ID

1-3/64 ID x 7/64 inch

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex jam, 3/8 inch NC

1шт.

43

A47668

RING

drive

1шт.

44

A47421

SEALING RING

ASSEMBLY, sleeve

1шт.

A47419

MANIFOLD

ASSEMBLY, pump, Includes: Refs. 50-51

1шт.

50

NSS

NOT SOLD SEPARAT

MANIFOLD pump

1шт.

51

NSS

NOT SOLD SEPARAT

COMMUTATOR pump

1шт.

52

A48140

LINK

drive

1шт.

53

F19636

PIN

lock

2шт.

54

A47421

SEALING RING

ASSEMBLY, manifold

1шт.

56

A48141

SPACER

rotor

1шт.

57

NLS

NO LONGER SERVICED

ROTOR SET pump

1шт.

62

1971542C1

SHAFT

input

1шт.

63

A48132

SCREW,1/4" x 1 5/8"

cap, manifold, stator and shaft

7шт.

64

A160850

WASHER

manifold

1шт.

65

1971545C1

BALL BEARING,0.878" ID x 1.515" OD x 0.38"

BEARING thrust, needle

1шт.

66

1971546C1

SPACER

WASHER KIT thrust, contains 10 washers

1шт.

67

A47004

RING

seal, square section, 2-63/64 ID x 1/16 inch

1шт.

68

1971543C1

HOUSING

COVER upper pump and valve

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
