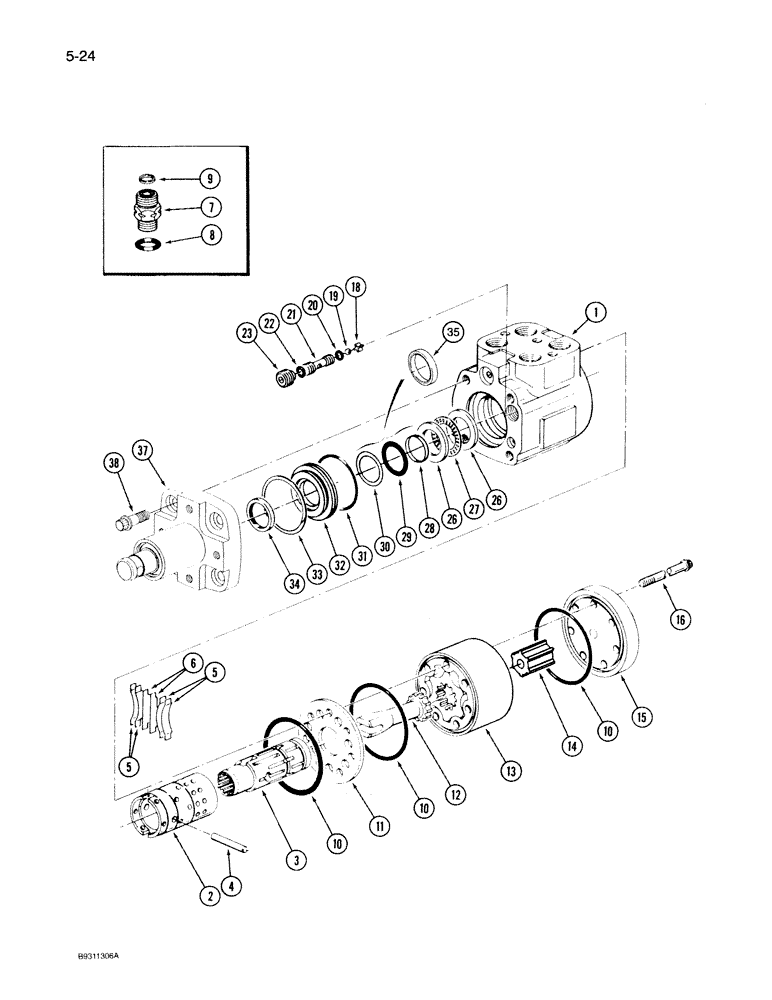

Запчасти Case IH 7140 (5-024) - STEERING PUMP ASSEMBLY, EATON PUMP, TWO WHEEL DRIVE (05) - STEERING

1542616C2

PUMP

ASSEMBLY steering, Replaces: P/N 1542616C1, Includes: Ref. 1 thru 35

1шт.

When replacing pump 1978324C1 with 1542616C2 pump, also order (1) 201-303 elbow and (1) 1542766C1 hose, Ref. 12 and 20 on Figure 5-012.

1шт.

Must Order 1343647C1 Separately to Complete crossover from TRW Pump to Eaton Pump.

1шт.

Does Not Include Housing Pump Column 1343647C1.

1шт.

1978324C1

PUMP

ASSEMBLY steering, no longer available, order 1542616C2 pump, Includes: Ref. 1 thru 35

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND CONTROL ASSEMBLY pump, Includes: Ref. 1 thru 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY pump, includes check valves

1шт.

NSS

NOT SOLD SEPARAT

VALVE check, manual steering, Not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE check, inlet, Not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control

1шт.

4

L30888

PIN

centering

1шт.

N14250

KIT

SPRING KIT centering, Includes: Refs. 5-6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING centering, Set of 6 springs

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER spring

2шт.

7

1343649C1

VALVE, CHECK

VALVE ASSEMBLY, check, used with P/N 1978324C1 pump only, Includes: Refs. 8-9

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL end cap

3шт.

Part of SEAL KIT, 1343658C2

1шт.

11

S113037

PLATE

spacer

1шт.

12

L30878

DRIVE SHAFT

DRIVE gerotor

1шт.

13

1343636C1

ROTOR

GEROTOR ASSEMBLY, pump

1шт.

14

1343644C1

SPACER

gerotor

1шт.

15

D82809

COVER

CAP end

1шт.

16

1343639C1

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

BOLT, 12 point flange, 5/16 NC x 2 inch

7шт.

18

L35368

RETAINER

check ball

1шт.

19

211-208

BALL,5/16" Dia

check

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL, 7/16 x 5/16 x 1/16 in

1шт.

Part of SEAL KIT, 1343658C2

1шт.

21

D82806

VALVE SEAT

SEAT check ball

1шт.

22

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL, 3/8 inch ID

1шт.

23

D82805

SET SCREW

SCREW set

1шт.

26

D82804

RACE

thrust bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Assy - Needle

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon, if used

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

if used -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

30

N13314

RING

backup, if used

1шт.

31

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL, 1-7/8 inch ID

1шт.

Part of SEAL KIT, 1343658C2

1шт.

32

N13312

CYLINDER END CAP

BUSHING seal gland

1шт.

33

S110169

WASHER

RING retaining

1шт.

34

A28211

OIL SEAL

1 inch ID

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL shaft, if used

1шт.

Part of SEAL KIT, 1343658C2

1шт.

37

1343647C1

HOUSING

COLUMN ASSEMBLY, pump, no longer included with pump, purchase separately

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.

1343658C2

SEAL KIT

KIT seal, pump, Includes: Ref. 10, 20, 22, 28 to 31, 34 and 35

1шт.

1542502C1

SEAL

dirt

1шт.
