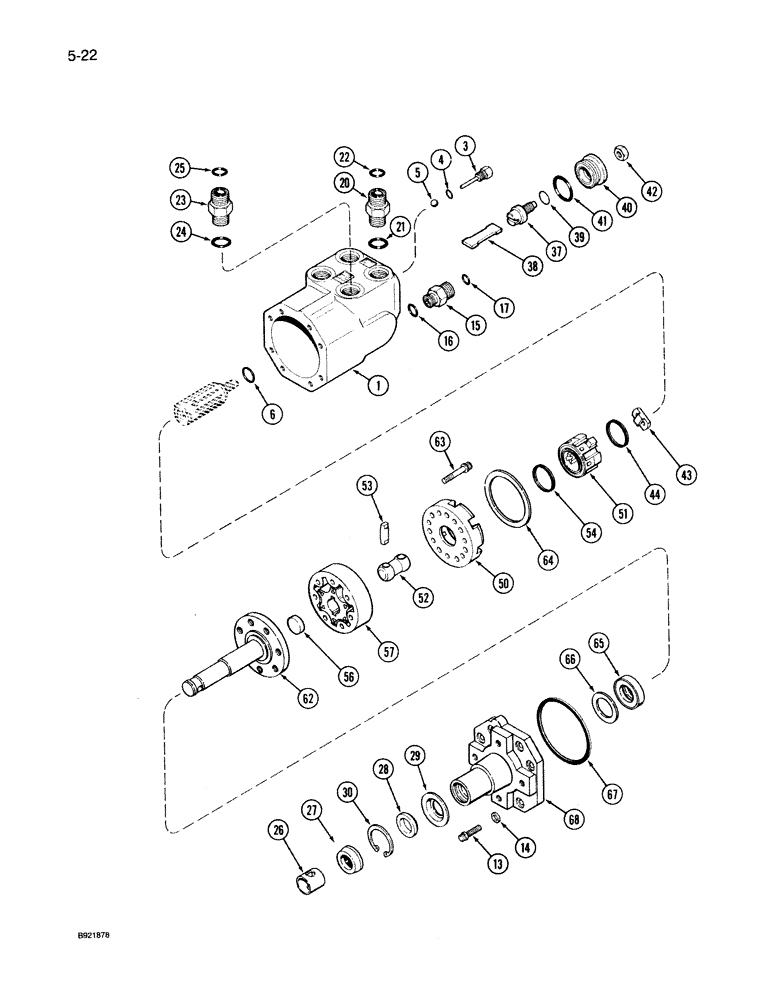

Запчасти Case IH 7140 (5-022) - STEERING PUMP ASSEMBLY, TRW PUMP, IF EQUIPPED, TWO WHEEL DRIVE (05) - STEERING

92849C2

PUMP

ASSEMBLY, steering, Order P/N 1542616C2 pump on Figure 5-024, Includes: Refs. 1-68

1шт.

When replacing P/N 92849C2 TRW pump with P/N 1542616C2 Eaton pump, also order (1) 201-103 elbow, (1) 1542766C1 hose, (1) 1977683C1 seal, (2) 1978480C1 tube, (1) 1978481C1 tube, (1) 1978482C1 tube, (2) 201-102 connector, See Figure 5-012 and (1) 1343647C1 column and (4) 1343650C1 screws, See Figure 5-024

1шт.

1

NSS

NOT SOLD SEPARAT

BODY steering

1шт.

3

1301867C91

PIN ASSY.

PIN ASSEMBLY, guide, Includes: Ref. 4

1шт.

4

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

5

17009R1

BALL

9/32 inch diameter

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 ID x 1/16 inch

1шт.

9

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

13

1957916C1

BOLT (SPREADER),1/4" - 28 x 1"

BOLT cap retaining

8шт.

14

1957917C1

WASHER

retaining bolt

8шт.

15

1957910C1

VALVE

ASSEMBLY, check, Includes: Refs. 16-17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

20

1957911C1

VALVE

ASSEMBLY, inlet check, Includes: Refs. 21-22

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

23

1957912C1

VALVE

ASSEMBLY, outlet check, Includes: Refs. 24-25

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

26

1957915C1

COLLAR CLAMP

COLLAR input shaft, Includes: Refs. 27-30

1шт.

1957914C3

SEAL KIT

KIT shaft, Replaces: P/N 1957914C2, Includes: Ref. 27 thru 30

1шт.

27

1986512C1

SEAL

shaft

1шт.

28

1986530C1

WASHER

backup

1шт.

29

1986513C1

SEAL

shaft

1шт.

30

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

37

A45194

ADJUSTMENT SCREW

SCREW ASSEMBLY, adjusting, Includes: Ref. 38

1шт.

38

1971540C1

FAN

BLADE torsion

2шт.

39

A45195

O-RING,0.556" ID x 0.073"

adjusting screw

1шт.

40

A47006

PLUG

ASSEMBLY, adjusting screw, Includes: Ref. 41

1шт.

41

A47005

O-RING,1.053" ID

1-3/64 ID x 7/64 inch

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex jam, 3/8 inch NC

1шт.

43

A47668

RING

drive

1шт.

44

A47421

SEALING RING

ASSEMBLY, sleeve

1шт.

A47419

MANIFOLD

ASSEMBLY, pump, Includes: Refs. 50-51

1шт.

50

NSS

NOT SOLD SEPARAT

MANIFOLD pump

1шт.

51

NSS

NOT SOLD SEPARAT

COMMUTATOR pump

1шт.

52

A48140

LINK

drive

1шт.

53

F19636

PIN

lock

2шт.

54

A47421

SEALING RING

ASSEMBLY, manifold

1шт.

56

A48141

SPACER

rotor

1шт.

57

1971544C1

ROTOR

SET pump

1шт.

62

1971541C1

SHAFT

input

1шт.

63

A48132

SCREW,1/4" x 1 5/8"

cap, manifold, stator and shaft

7шт.

64

A160850

WASHER

manifold

1шт.

65

1971545C1

BALL BEARING,0.878" ID x 1.515" OD x 0.38"

BEARING thrust, needle

1шт.

66

1971546C1

SPACER

WASHER KIT thrust, contains 10 washers

1шт.

67

A47004

RING

seal, square section, 2-63/64 ID x 1/16 inch

1шт.

68

1971543C1

HOUSING

COVER upper pump and valve

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
