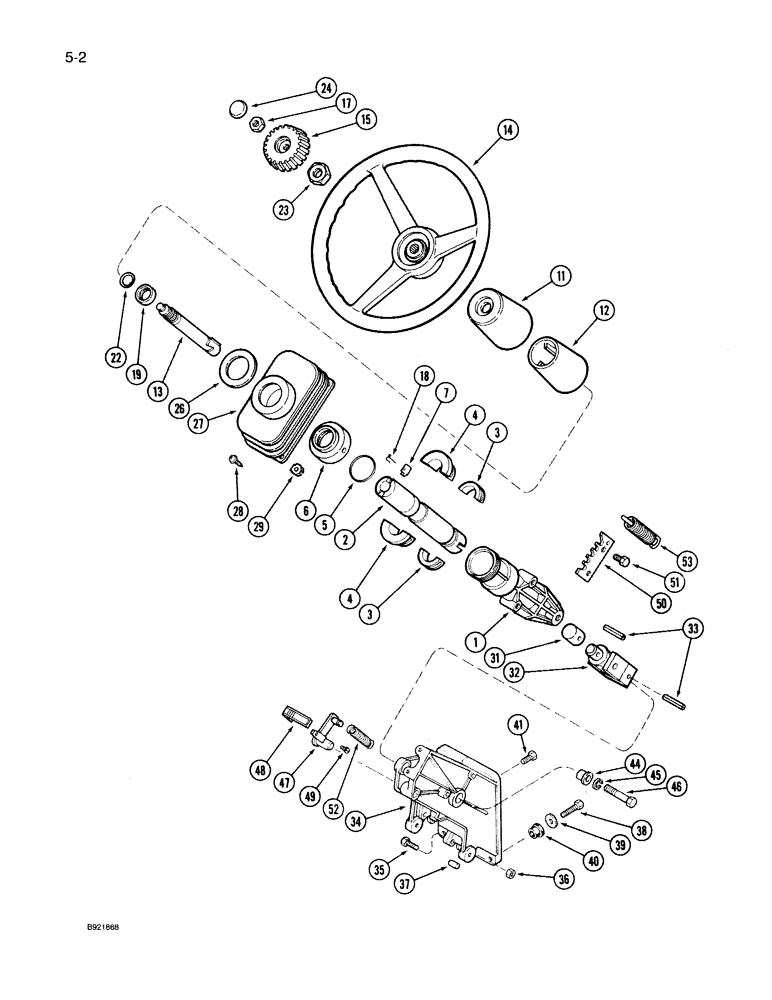

Запчасти Case IH 7140 (5-002) - STEERING WHEEL AND COLUMN, STANDARD (05) - STEERING

1

1989917C1

HOUSING

support, steering, Replaces: P/N 148422C3

1шт.

2

1954243C2

TUBE

steering wheel, Replaces: P/N 1954243C1

1шт.

3

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

lower, steering tube

2шт.

4

103985C1

BUSHING,35.05mm ID x 50.9mm OD x 38.1mm L

upper, steering tube

2шт.

5

1348393C1

O-RING,1.984" ID x 0.139" Width

steering column cap, Replaces: P/N 238-6033

1шт.

6

148921C1

CAP

column, steering

1шт.

7

1954248C1

PIN

stop

1шт.

11

1954245C1

SHIELD

outer, column

1шт.

12

1954244C1

PROTECTOR

SHIELD inner, column

1шт.

13

1954247C1

SHAFT

telescoping

1шт.

14

A65544

STEERING WHEEL

Standard

1шт.

15

A141827

CAP

KNOB lock, wheel

1шт.

17

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

1шт.

18

1954249C2

LINCH PIN

CLIP pin, stop upper

1шт.

19

1954250C1

GASKET

COLLAR lower

1шт.

22

1954253C1

SNAP RING,#87, Ext, Crescent

Ring, Snap, #87, Ext, Crescent

1шт.

23

F19646

LOCK NUT,13/16"-20, Thin

NUT lock, wheel

1шт.

24

A180055

CAP ASSY.

INSERT steering wheel, emblem, Case globe and eagle, Replaces: P/N 1342054C1

1шт.

26

1954246C1

WASHER

shield

1шт.

27

1974720C2

BOOT

column

1шт.

28

1975919C1

SELF-TAP SCREW

special, No. 10-16 x 1 inch, black

4шт.

29

104036C1

NUT

hex expansion

4шт.

31

104008C1

RUBBER INSULATOR

INSULATOR shaft

1шт.

32

148431C1

JOINT

ASSEMBLY, universal

1шт.

33

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

34

148426C2

SUPPORT ASSY.

SUPPORT ASSEMBLY, Includes: Refs. 35-37

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 x 25 mm

2шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

37

837-10016

DOWEL,M10 x 16

PIN dowel, 10 x 16 mm

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, 10 x 35 mm

3шт.

39

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

flat, 13/32 x 1-1/16 x 3/32 inch

3шт.

40

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

ISOMOUNT mounting

3шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

44

148920C1

BUSHING

pivot, column

2шт.

45

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

46

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

47

97109C1

LEVER

release, tilt

1шт.

48

97111C4

HANDLE

lever

1шт.

49

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

pan head, No. 8 x 5/16 inch

1шт.

50

96972C1

PLATE ASSY.

PLATE detent, tilt

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 x 16 mm

2шт.

52

538321R1

SPRING

detent

1шт.

53

148480C1

SPRING

support, tilt

1шт.
