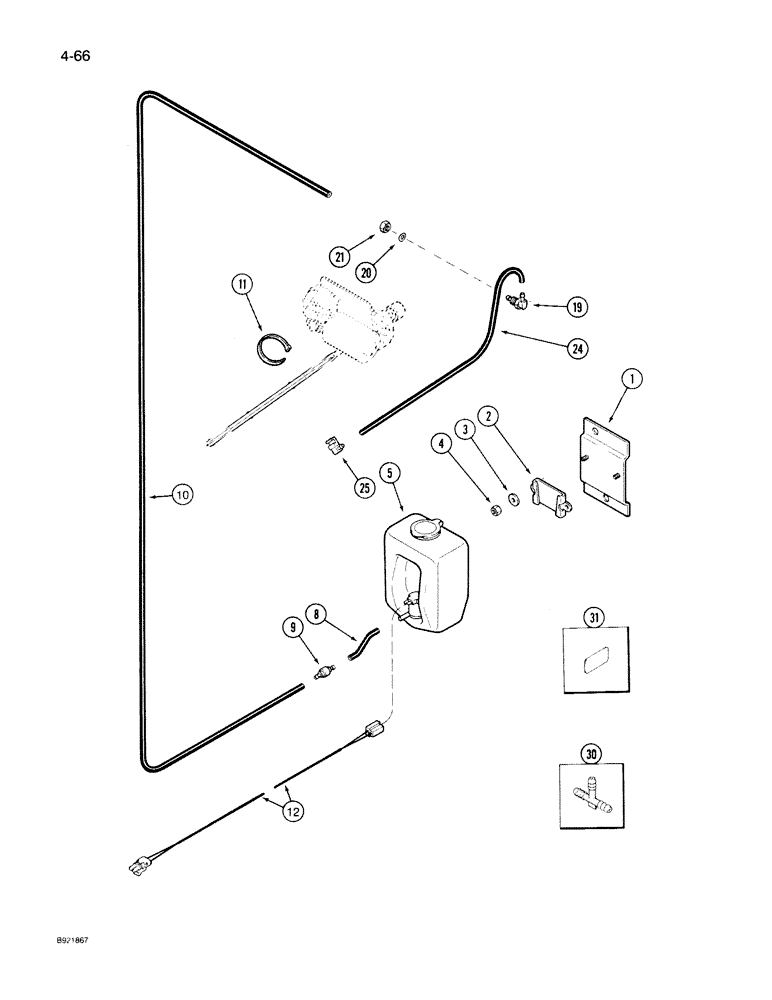

Запчасти Case IH 7140 (4-066) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

1968022C1

SUPPORT

BRACKET mounting

1шт.

2

K304597

SUPPORT

BRACKET reservoir mounting

1шт.

3

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

4

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

5

K304596

RESERVOIR

AND PUMP ASSEMBLY, washer fluid

1шт.

8

1968057C1

HOSE

TUBING washer, 100 mm, Order: P/N 1968141C1 and cut to length, see below

1шт.

9

K307050

VALVE

non return

1шт.

10

1968058C1

HOSE

TUBING washer, 3600 mm, Order: P/N 1968141C1 and cut to length, see below

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

STRAP tie, harness

9шт.

12

1964673C1

HARNESS

wiring, washer pump

1шт.

19

1968053C1

ELBOW

CONNECTOR bulkhead, 90°, mounts to P/N 1968052C1 bracket, Ref. 32

1шт.

20

N8361

SPRING WASHER

spring, 8 mm

1шт.

21

825-1408

NUT,M8, Cl 8

1шт.

24

1968059C1

HOSE

TUBING washer, 500 mm, Order: P/N 1968141C1 and cut to length, see below

1шт.

25

1968054C1

JET

NOZZLE windshield washer

1шт.

30

1968129C1

FITTING

TEE nylon, barb ends, Converting for rear washer

1шт.

31

1968130C1

CLIP

nozzle, Converting for rear washer

2шт.

32

1968052C1

BRACKET

connector to bulkhead, not shown

1шт.

1968141C1

HOSE

TUBING, 5/32 ID x 50 foot bulk roll

1шт.
