Запчасти Case IH 7140 (4-060) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

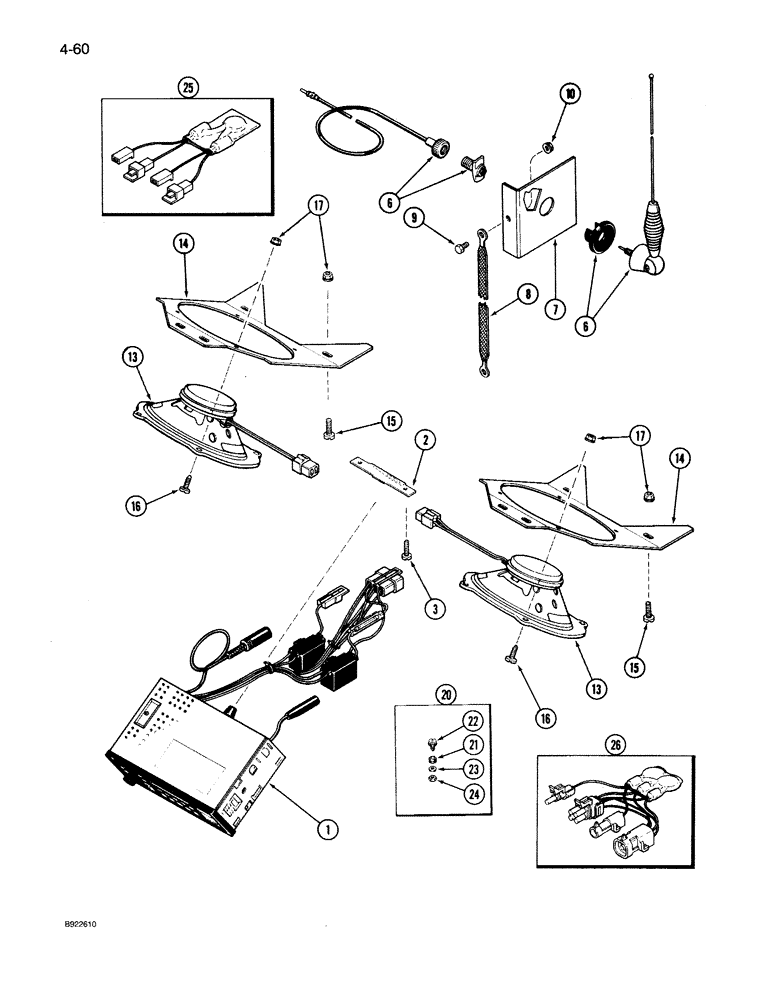

Схема запчастей Case IH 7140 - (4-060) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS
22
3
1
13
10
17
7
14
25
26
16
8
14
9
21
24
20
6
2
13
6
15
17
15
16
23

Артикул

Название

Примечание

Количество

1

1983602C1

RADIO

KIT AM-FM stereo, Replaces: P/N A186177 and P/N ZAE90ST

1шт.

1

1983603C1

RADIO

KIT AM-FM stereo with cassette tape player, Replaces: P/N A186178 and P/N ZAE90CAS

1шт.

2

97127C3

SUPPORT ASSY.

SUPPORT radio

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

6

97080C1

ANTENNA

radio

1шт.

1987530C1

SCREW

antenna base flat head special, Not Shown

1шт.

7

97073C1

SUPPORT

BRACKET mounting, antenna

1шт.

8

97074C1

STRAP

ground, antenna

1шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

245343C3

SPEAKER

radio, 5 x 7 40 Hm, Replaces: P/N 245343C2

2шт.

14

97051C1

PLATE ASSY.

PLATE support, speaker

2шт.

15

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

16

27093R1

SCREW

pan head, No. 10-24 x 5/8 inch

8шт.

17

174097C1

FLANGE NUT,Flg, USR, #10-24

hex flange lock, No. 10-24

8шт.

20

1964958C1

KIT

SUPPORT KIT radio, Includes: Refs. 21-24

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING rubber

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT hex, 5 x 15 mm

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER flat, 5 mm

1шт.

24

NSS

NOT SOLD SEPARAT

NUT hex lock, 5 mm

1шт.

25

1987508C1

SUPPRESSOR

blower frequency

1шт.

26

1987509C1

SUPPRESSOR

wiper frequency

1шт.

Выбрано товаров: 22
