Запчасти Case IH 7140 (4-054) - LAMP ASSEMBLIES, LOWER FRONT FLOOD LAMP AND FENDER FLOOD LAMP (04) - ELECTRICAL SYSTEMS

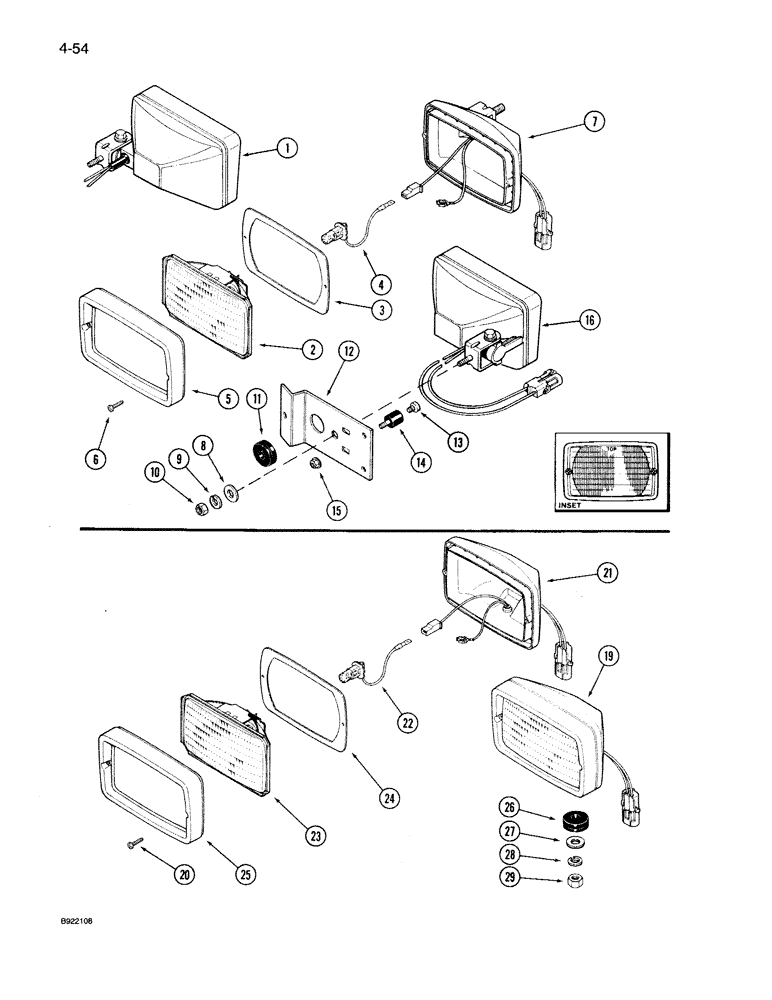

Схема запчастей Case IH 7140 - (4-054) - LAMP ASSEMBLIES, LOWER FRONT FLOOD LAMP AND FENDER FLOOD LAMP (04) - ELECTRICAL SYSTEMS
26
7
5
8
21
10
3
23
13
25
9
20
28
19
24
16
14
11
12
1
15
4
29
2
27
22
6

Артикул

Название

Примечание

Количество

A187547

LAMP

KIT flood lamp, lower front, assembly, Machinery Item, Includes: Ref. 1-15

2шт.

1

92266C1

HEADLIGHT

LAMP ASSEMBLY flood, left, lower front, Includes: Ref. 2-7

1шт.

2

1964807C1

LAMP BASE

LENS reflector, lamp, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET lens

1шт.

4

1312210C1

BULB

lamp

1шт.

5

1964806C1

BEZEL

HOUSING front, lamp

1шт.

6

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

SCREW retainer, housing

2шт.

7

NSS

NOT SOLD SEPARAT

BASE lamp

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Lower front flood lamp assembly M11 x 24 x 2

1шт.

9

892-11010

LOCK WASHER,M10

Lower front flood lamp assembly M10

1шт.

10

825-1410

NUT,M10, Cl 8

Lower front flood lamp assembly M10, Cl 8

1шт.

11

96901C1

GROMMET

lamp wiring, lower front, flood, assembly

1шт.

12

1334607C2

BRACKET

mounting, flood lamp, lower front, assembly

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

BOLT special, 1/4 NC x 3/8 inch, lower front flood lamp assembly

3шт.

14

1334650C1

SHOCK ABSORBER

MOUNT rubber, lower front flood lamp assembly

3шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Lower front flood lamp assembly Flg, USR, 1/4"-20

3шт.

16

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY, flood, lower right, front

1шт.

For service Order: P/N 92266C1 lamp. Remove lens and turn upside down and install so top of lens is on top. See inset.

1шт.

A187548

LIGHT

KIT flood lamp, fender, Machinery Item, assembly, Includes: Ref. 19-29

2шт.

19

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

LAMP ASSEMBLY flood, fender, Includes: Ref. 20-25

1шт.

20

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

SCREW retainer, housing

2шт.

21

NSS

NOT SOLD SEPARAT

BASE lamp

1шт.

22

1312210C1

BULB

lamp

1шт.

23

1964807C1

LAMP BASE

LENS reflector, lamp, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET lens

1шт.

25

1964806C1

BEZEL

HOUSING front, lamp

1шт.

26

96901C1

GROMMET

lamp wiring, fender flood lamp assembly

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Fender flood lamp assembly M11 x 24 x 2

1шт.

28

892-11010

LOCK WASHER,M10

Fender flood lamp assembly M10

1шт.

29

825-1410

NUT,M10, Cl 8

Fender flood lamp assembly M10, Cl 8

1шт.

Выбрано товаров: 30
