(4-006) - FRONT HARNESS

Запчасти Case IH 7130 (4-006) - FRONT HARNESS (04) - ELECTRICAL SYSTEMS

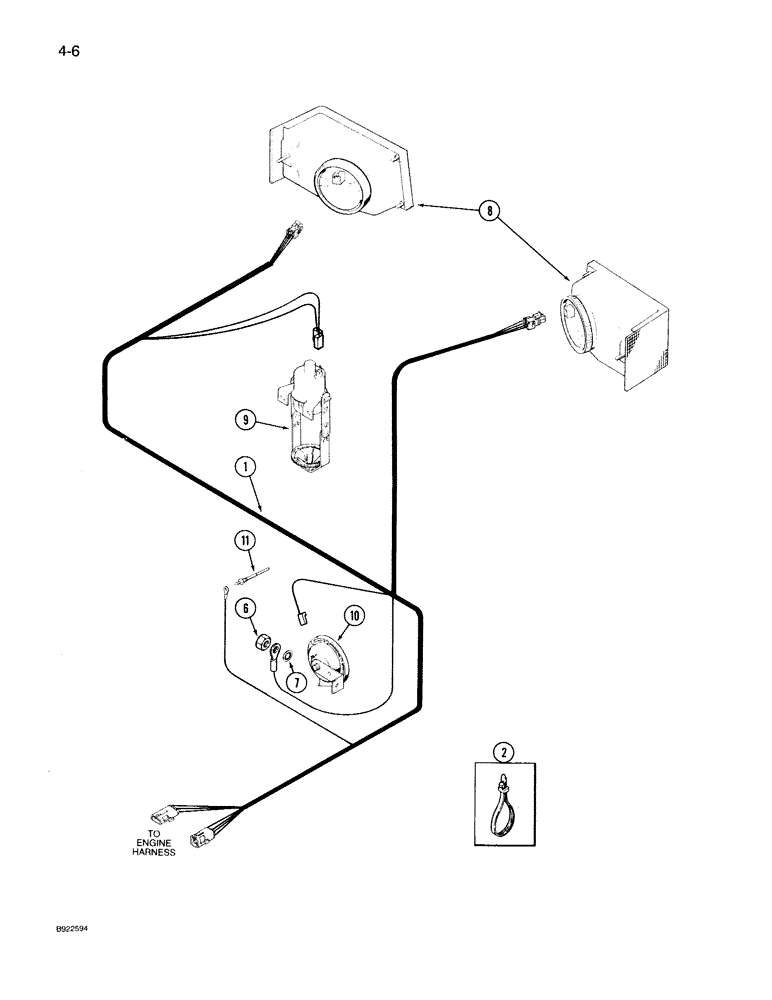

Схема запчастей Case IH 7130 - (4-006) - FRONT HARNESS (04) - ELECTRICAL SYSTEMS
9
11
7
2
10
1
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

92032C2

HARNESS

- front, order P/N 1983257C1, See Figure 4-008

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

7

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

1шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - head, See Figure 4-052

2шт.

9

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start, See Figure 2-014

1шт.

10

411949C91

HORN

- tractor

1шт.

11

A145513

SENSOR

- level, coolant

1шт.
