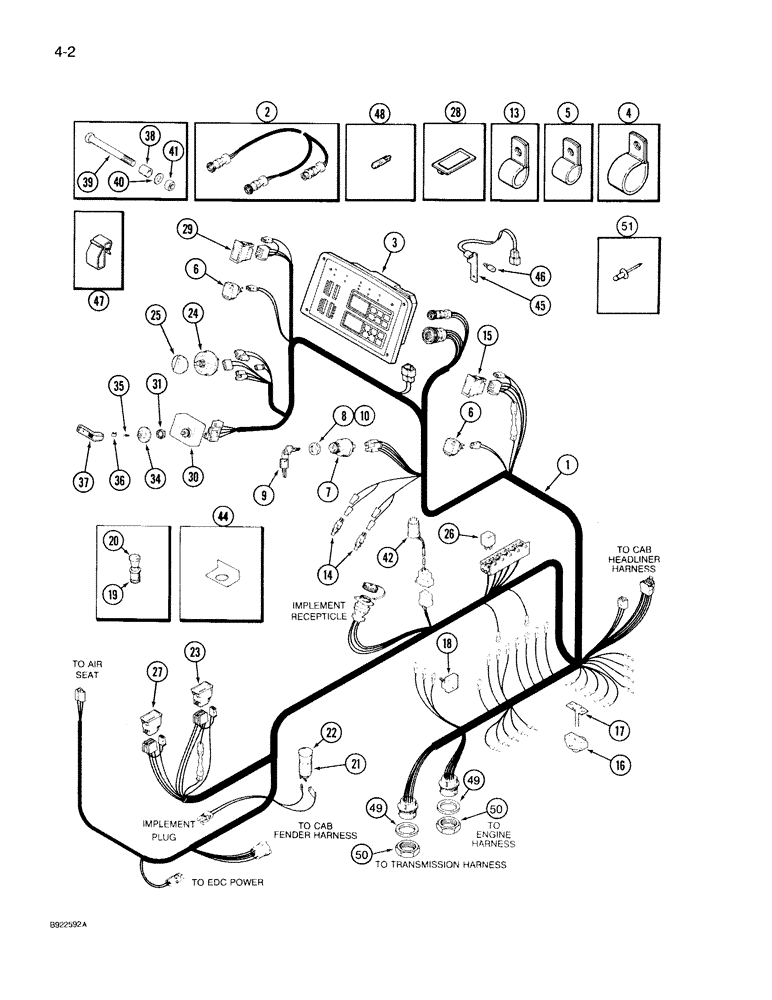

Запчасти Case IH 7130 (4-002) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

1964583C2

HARNESS

- cab, lower, used with Ref. 18 junction block

1шт.

1a

1964583C3

HARNESS

- cab, lower, used without Ref 18 junction block, not shown

1шт.

2

A177090

HARNESS

implement monitor, cluster, for ground speed sensor

1шт.

When looking at Ref. 2 on the illustration, the ends from left to right are for: ground speed sensor, implement monitor and cluster

1шт.

See S/B NTR SB 05988 P/N 225165C1 Female Connector body P/N 225164C1, Male connector body P/N 225166C1 Male Pin, 225168C1 Female Pin. these pieces service the implement receptacle. Adaptor 187103A1 is a male harness that has 17" wires and connects to the existing female implement receptacle

1шт.

3

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument, See Figure 4-030

1шт.

4

92385C1

CLIP

- retaining, harness

2-4шт.

5

92386C1

CLAMP,7/8", Insul, 7/16" Bolt

CLIP - retaining, harness, at left rear of main fuel tank, if used

1шт.

6

92365C1

SWITCH

- horn and ether start

2шт.

7

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Refs. 8-9

1шт.

8

A77314

NUT

- mounting

1шт.

9

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

10

1964785C1

NUT

- mounting, ignition switch

1шт.

13

S88820

CLAMP

CLIP - retaining, harness

1шт.

14

A163160

SWITCH

- brake, differential lock

2шт.

15

92345C1

SWITCH

ASSEMBLY - override, shutdown, Includes: Ref. 48 and switch, bulb, socket and decal

1шт.

91855C1

SWITCH

- rocker, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

91957C1

DECAL

- red, lens, snap-in

1шт.

16

468647C1

BLOCK ASSY.

BLOCK - junction, See Figure 4-034 for mounting hardware

1шт.

17

1964561C1

BAR

- junction block, See Figure 4-034 for mounting hardware

1шт.

18

245539C1

CONNECTION

BLOCK - junction, See Figure 4-034 for mounting hardware, if used

1шт.

19

1964773C1

CIGAR LIGHTER

LIGHTER ASSEMBLY - cigar, 12 volt, if equipped, Includes: Ref. 20

1шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - pop-out unit, Small knob

1шт.

21

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar, 12 volt, if equipped, Includes: Ref. 22

1шт.

22

378781R1

LIGHTER, CIGARETTE

ELEMENT - pop-out unit, Large knob

1шт.

23

92346C1

SWITCH

ASSEMBLY - differential lock, Includes: Ref. 48 and switch, bulb, socket and decal

1шт.

Double headed connector is P/N 548239R2

1шт.

91956C1

SWITCH ASSY

SWITCH - rocker, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

83884C1

SYMBOLS

DECAL - green, lens, snap-in

1шт.

24

91921C1

SWITCH

- lighting

1шт.

25

97107C3

BUTTON

KNOB - light switch, Replaces: P/N 97107C2

1шт.

26

146461C1

RELAY

- electrical

5шт.

27

92343C1

SWITCH

ASSEMBLY - MFD, Includes: Ref. 48 and switch, bulb, socket and decal

1шт.

91855C1

SWITCH

- rocker, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

83884C1

SYMBOLS

DECAL - green, lens, snap-in

1шт.

28

245918C1

LENS

PLUG - blanking

1шт.

29

92344C1

SWITCH

ASSEMBLY - high/low, Includes: Ref. 48 and switch, bulb socket and decal

1шт.

91855C1

SWITCH

- rocker, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

91856C1

SYMBOLS

DECAL - blue, lens, snap-in, high beam

1шт.

30

1987422C1

SWITCH

- turn signal and flasher, Replaces: P/N A77184

1шт.

If dlr looking for conversion kit for 7100, 7200 or 8900, to a heavier switch, for units prior to S/N JJA0090943, order P/N 321561A1.

1шт.

31

131-428

LOCK NUT,PAL, 3/4"-20

NUT - hex special, 3/4-20

1шт.

34

97102C1

ADAPTER

- lever, turn signal

1шт.

35

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- slotted pan head, No. 5-40 x 3/8 inch

1шт.

36

1329896C1

CLASP

CLIP - retaining, lever

1шт.

37

97103C3

LEVER

- turn signal

1шт.

38

1334638C1

SPACER

- ground, electrical

1шт.

39

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

1шт.

40

893-16016

LOCK WASHER,Int Tooth, M16

1шт.

41

825-1416

NUT,M16, Cl 8

1шт.

42

92043C2

SWITCH

- drive, creeper

1шт.

44

1977626C1

ANGLE

- spacer, lighter

1шт.

45

1983363C2

LAMP

LIGHT ASSEMBLY - cluster, Includes: Ref. 46

1шт.

46

28791R1

BULB

- light, No. 161

1шт.

47

104389C1

CLIP

- retainer, light

1шт.

48

3141107R1

BULB,W5/1.2, 12V, 1.2W

- switch, 2 watt

4шт.

49

459330C1

LOCK WASHER

WASHER - lock, No. 24

2шт.

50

459329C1

NUT

- hex, No. 24

2шт.

51

151-535

RIVET,Pop, 1/8" x .462"

to mount three pin connector Pop, 1/8" x .462"

4шт.

1330293C1

SUPPORT

controller plate, for 1682 monitor

1шт.

1330294C1

TIE-ROD,5/16" - 18 x 140mm

BOLT, for 1682 monitor

1шт.
