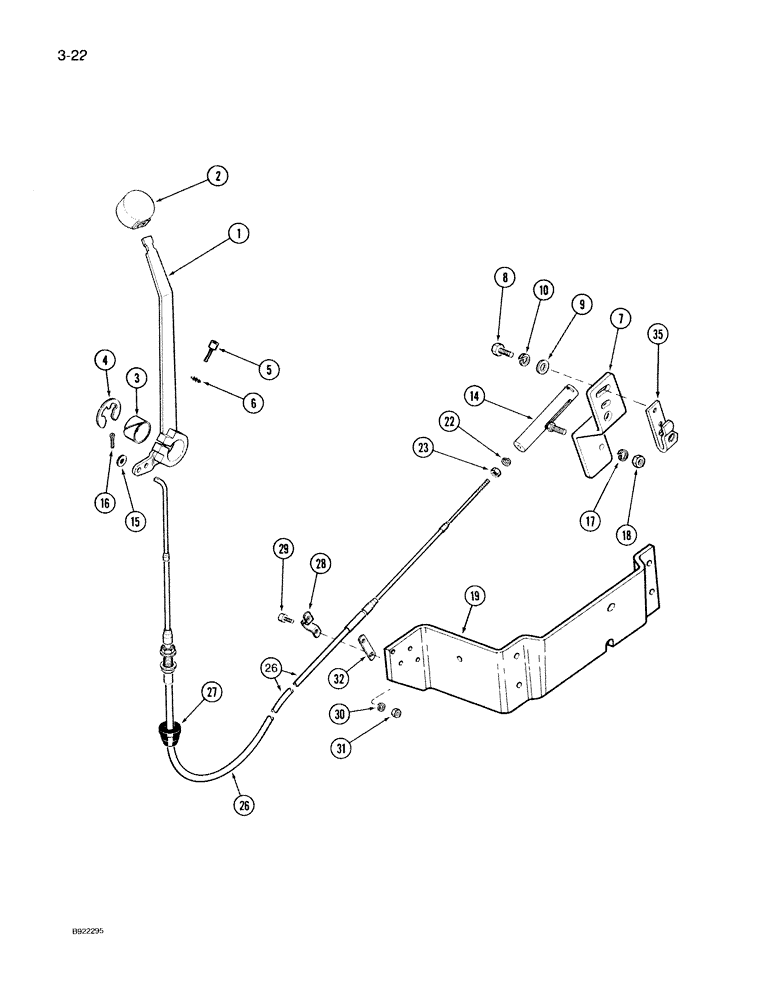

Запчасти Case IH 7130 (3-022) - HAND THROTTLE (03) - FUEL SYSTEM

1

96572C3

LEVER

- throttle control

1шт.

2

1975823C1

HANDLE

KNOB - control lever

1шт.

3

96576C1

BUSHING

- control lever

1шт.

4

933355R1

CIRCLIP,M20

E-RING - retaining

1шт.

5

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

BOLT - hex socket, 4 x 20 mm

1шт.

6

893-11004

LOCK WASHER,Ext Tooth, M4

1шт.

7

1289365C1

SUPPORT

BRACKET - throttle lever

1шт.

8

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

9

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm

2шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

14

1974525C1

BALL JOINT

- throttle cable

1шт.

15

95-81060

WASHER,5.56mm ID x 14.28mm OD x 1.7mm Thk

- flat, 7/32 x 9/16 x 1/64 inch, Replaces: P/N 3479

1шт.

16

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

225-14210

NUT,#10-32

1шт.

19

1289499C2

SUPPORT

BRACKET - throttle cable, Replaces: P/N 1289366C1

1шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

225-14210

NUT,#10-32

1шт.

26

1267688C2

CABLE

ASSEMBLY - throttle, Replaces: P/N 1267688C1, Includes: Ref. 27

1шт.

27

96988C2

GROMMET

- cable, no longer split, Replaces: P/N 96988C1

1шт.

28

A75815

CLAMP

- Cable

1шт.

29

461-31012

HEX SOC SCREW,#10 - 24 x 3/4"

SCREW - hex socket, No. 10-24 x 3/4 inch

2шт.

30

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

31

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, No. 10 NC, Replaces: P/N 225-14110

2шт.

32

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

- clamp

1шт.

35

1808728C1

LEVER

- pump control

1шт.
