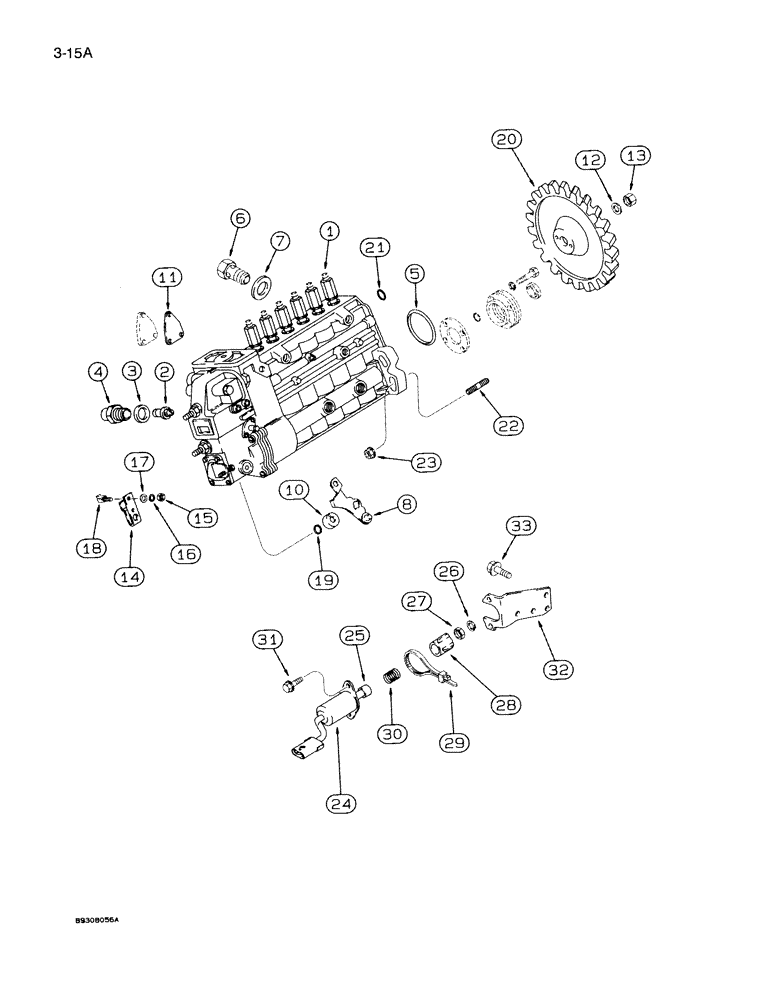

Запчасти Case IH 7130 (3-015A) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, ENGINE S/N 44827491 AND AFTER (03) - FUEL SYSTEM

JR921093

REMAN-FUEL INJ PUMP

PUMP ASSEMBLY injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC913339

CORE

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J921093

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new, Includes: Ref. 2-19

1шт.

2

A77720

PIN

timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J913681

BANJO BOLT

VALVE bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J923230

LEVER

pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

11

A46322

GASKET

cover plate

1шт.

12

A77775

LOCK WASHER

lock

1шт.

13

A41852

LOCK NUT

hex lock

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

1806312C1

NUT

throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

special sealing

1шт.

20

J912614

GEAR

fuel pump

1шт.

21

J916284

O-RING

12.37 ID x 2.62 mm, fuel pump to gear housing

1шт.

22

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

4шт.

23

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

24

J923257

SOLENOID

fuel shutoff, 12 volt, Includes: Ref. 25-30

1шт.

25

A77807

SET

KIT plunger, ball socket and clip

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

28

J925171

BOOT

protective, plunger

1шт.

29

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

30

J923887

SPRING

return, plunger

1шт.

31

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm, special

2шт.

32

J923254

SUPPORT

BRACKET solenoid mounting

1шт.

33

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
