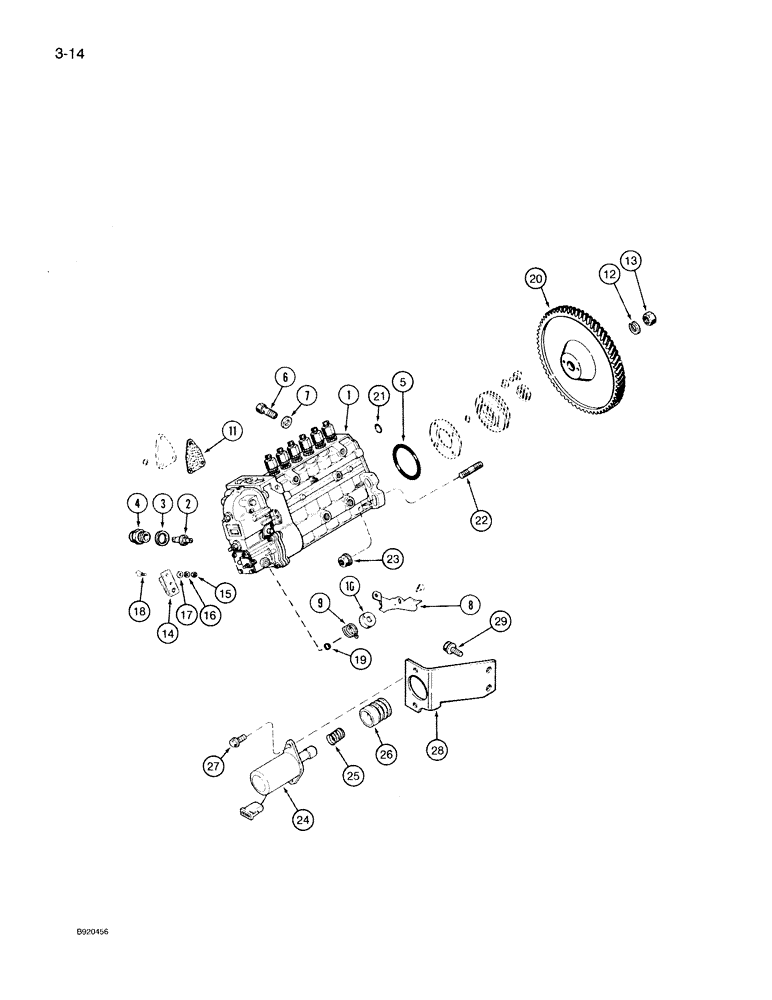

Запчасти Case IH 7130 (3-014) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO ENGINE S/N 44827491 (03) - FUEL SYSTEM

1

J915685

PUMP

ASSEMBLY fuel injection, new, Includes: Ref. 2-19

1шт.

1

JR915685

REMAN-INJECTION PUMP

Pump Assembly Injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC915685

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1

JC913339

CORE

Return Part Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J912886

VALVE

bolt, overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing

1шт.

8

J910979

LEVER

pump shutoff, Replaces: P/N J914094 lever

1шт.

9

J912890

SPRING

lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

11

A46322

GASKET

cover plate

1шт.

12

A77775

LOCK WASHER

lock, Replaces: P/N J912895 washer

1шт.

13

A41852

LOCK NUT

hex lock

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

1806312C1

NUT

throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

special sealing

1шт.

20

J912614

GEAR

fuel pump

1шт.

21

J916284

O-RING

sealing, fuel pump oil supply to gear housing

1шт.

22

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

4шт.

23

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

24

J921978

SOLENOID

fuel shutoff, 12 volt, Replaces: P/N J9186006 solenoid, Includes: Ref. 25-26

1шт.

25

J921760

SPRING

return, plunger, Replaces: P/N A77702 spring

1шт.

26

J924912

BOOT

protective, plunger, Replaces: P/N A77681 boot

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

28

J916142

SUPPORT

BRACKET solenoid mounting

1шт.

29

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
