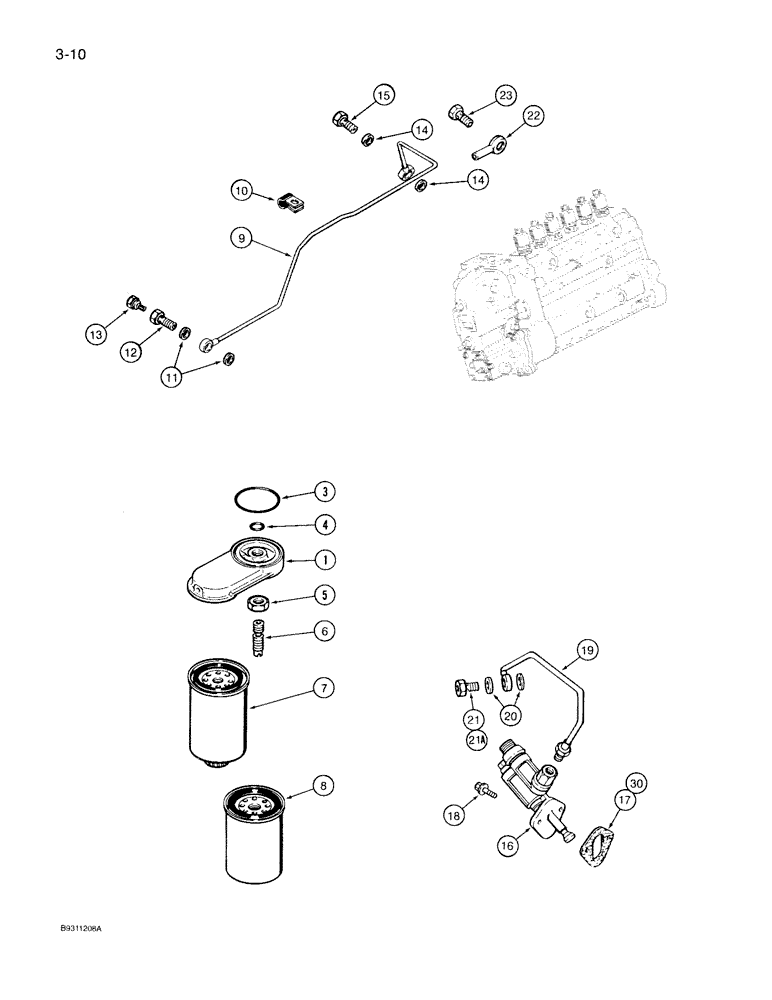

Запчасти Case IH 7130 (3-010) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD fuel filter, Replaces: P/N J904362 head

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER fuel, primary, Replaces: P/N J903410 filter

1шт.

8

J903640

FILTER, FUEL

FILTER fuel, secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE fuel supply, 7130 Tractor

1шт.

9

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE fuel supply, 7140 Tractor

1шт.

10

J914711

CLIP

tube retaining, Replaces: P/N A77436 clip

1шт.

11

J918191

PACKING RING

WASHER sealing, Replaces: P/N J903037 washer

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, connector, Includes: Ref. 12-13

1шт.

12

NSS

NOT SOLD SEPARAT

BOLTconnector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, 14 x 20 x 1 mm

4шт.

15

J907541

BANJO BOLT

BOLT connector, banjo

1шт.

16

J917998

PUMP

fuel transfer, Replaces: P/N J906795 pump

1шт.

Ref. 16 - Lift pump numbers that are listed may cause a high lift pump pressure and noise complaint. Use J934468 on all Magnums (7100-7200) below P.I.N. JJA0064989

1шт.

16

J934468

FEED PUMP

fuel transfer, use with J913681 banjo reducing connector

1шт.

17

J914304

GASKET

mounting, pump

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE supply

1шт.

20

J918191

PACKING RING

WASHER sealing, Replaces: P/N J903037 washer

2шт.

21

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, , Prior to Engine S/N 44713107 M12 x 1.5 x 24

1шт.

Ref. 21. This bolt has 12 mm male threads and 6 mm female threads.

1шт.

21a

J916361

BANJO BOLT

BOLT banjo connector, 8 mm threads, Engine Serial Number 44713107 and after

1шт.

Ref. 21A. This bolt has 12 mm male threads and 8 mm female threads.

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

23

REF

INSTRUCTION

VALVE bolt, overflow, See Ref. 6, Figures 3-014, 3-015A, 3-016, and 3-017A

1шт.

24

J923615

GASKET KIT

KIT repair, fuel transfer pump, not shown, Replaces: P/N J920544 kit, Includes: Ref. 25-31

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

3шт.

29

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

30

J914304

GASKET

mounting, pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.
