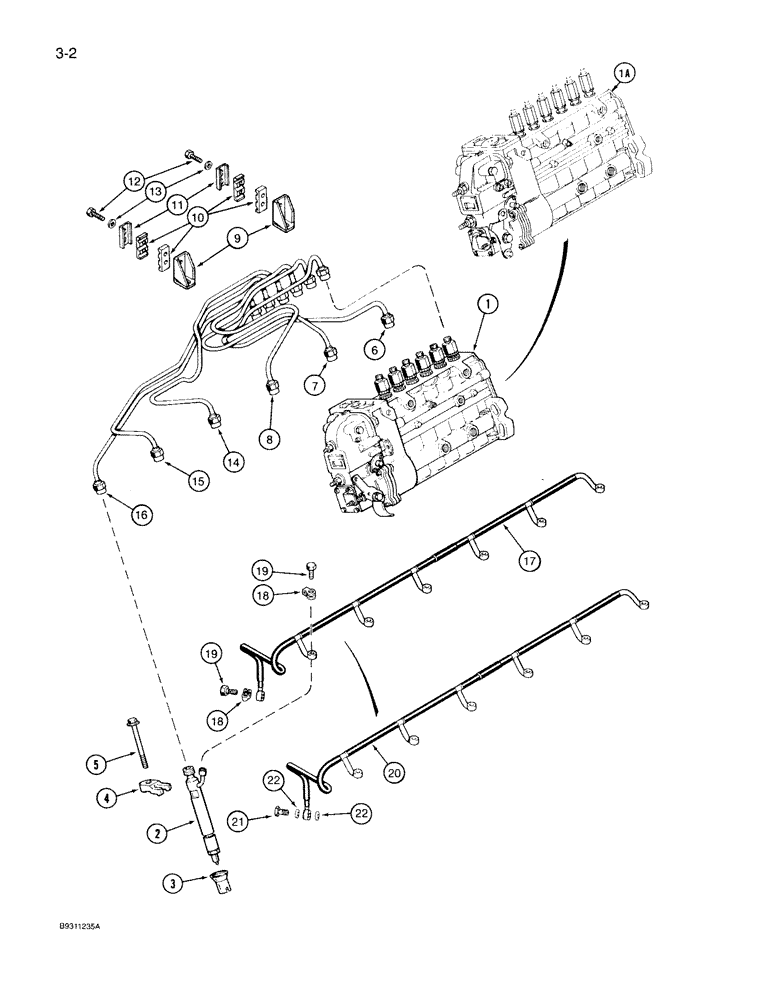

Запчасти Case IH 7130 (3-002) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM

1

J915685

PUMP

ASSEMBLY fuel injection, prior to Engine Serial Number 44827491, See Figure 3-014

1шт.

1

JR915685

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC915685

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1a

J921093

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, Engine Serial Number 44827491 and after, See Figure 3-015A

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, See Figure 3-020

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector

6шт.

4

J910279

CLAMP

injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE fuel, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE fuel, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE fuel, No. 3 cylinder

1шт.

9

J917776

BRACE

tube, Replaces: P/N J906584 brace

2шт.

10

J917747

CLAMP

tube, Replaces: P/N J914339 clamp

4шт.

11

J904519

SUPPORT

BRACE tube

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces P/N J903609 bolt Hex Hd, M5 x .8 x 20, w/LW

4шт.

13

J903723

WASHER

flat, 6 x 10 x 1 mm

4шт.

14

J910521

FUEL TUBE

TUBE fuel, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE fuel, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE fuel, No. 6 cylinder

1шт.

17

J915695

MANIFOLD

fuel drain, prior to Engine S/N 44713107, no longer available, order Ref. 20-22, manifold, check valve, and washers on this figure, and Ref. 20 J918191 washers and Ref. 21A J916361 banjo bolt on Figure 3-010

1шт.

18

J903380

SEAL

connector 6 used with Ref. 20, P/N J920595 manifold, 7 used with Ref. 17, P/N J915695 manifold

6-7шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , 6 used with Ref 20, P/N J920595 manifold, 7 used with Ref 17, P/N J915695 manifold M6 x 1 x 14.3

7шт.

20

J920595

TUBE ASSY.

MANIFOLD fuel drain, Engine Serial Number 44713107 and after

1шт.

21

J916360

VALVE

check

1шт.

22

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.
