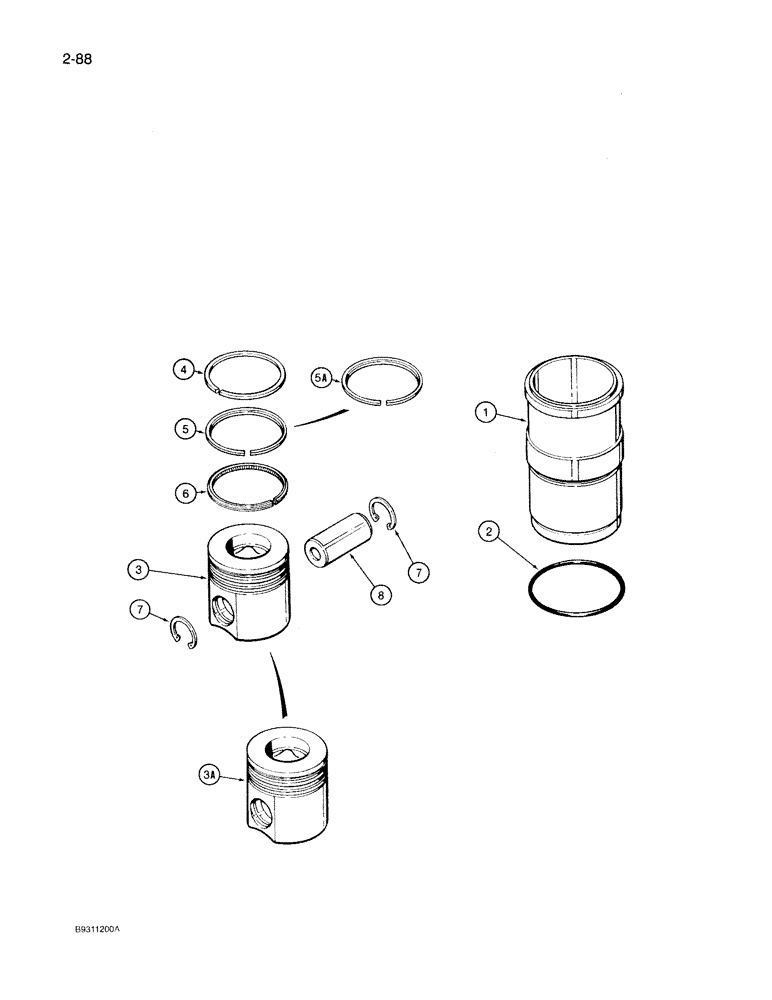

Запчасти Case IH 7130 (2-088) - PISTONS, 6T-830 ENGINE (02) - ENGINE

A77598

CYLINDER

KIT piston and sleeve, includes piston stamped 8749, no longer available, Order: P/N A77747 kit, shown below, prior to Engine Serial Number 44536857, Includes: Ref. 1-8, Serial Range: -44536857

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE piston, prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sleeve, pistons prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

A77599

KIT

piston, standard, includes piston stamped 8749, no longer available, Order: P/N A77771 piston kit, shown below, prior to Engine Serial Number 44536857, Includes: Ref. 3-6, Serial Range: -44536857

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON cylinder, stamped 8749, prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

A77562

PISTON RING SET

KIT piston ring, used with piston stamped 8749, prior to Engine Serial Number 44536857, Includes: Ref. 4-6, Serial Range: -44536857

1шт.

4

NSS

NOT SOLD SEPARAT

RING compression, top, pistons prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

5

NSS

NOT SOLD SEPARAT

RING rectangular, compression, middle, pistons prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

6

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces P/N J901996 ring, pistons prior to engine s/n 44536857 1.75", Int, #175, Serial Range: -44536857

2шт.

8

J901597

PIN

piston, prior to Engine Serial Number 44536857, Serial Range: -44536857

1шт.

A77747

PACKAGE

KIT piston and sleeve, includes piston stamped 9928, Engine Serial Number 44536857 through 44706125, Includes: Ref. 1 thru 8, Serial Range: 44536857-44706125

6шт.

A77772

PACKAGE, REPAIR

KIT piston and sleeve, includes piston stamped 9564 or 3163, Engine Serial Number 44536857 through 44706125, Includes: Ref. 1-8, Serial Range: 44536857-44706125

6шт.

Piston Pin J901597 Ref. 8 is NOT included in kit P/N A77772

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE piston, Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sleeve, pistons Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

A77745

PACKAGE

KIT piston, standard, includes piston stamped 9928, no longer available, Order: P/N A77771 kit, Engine Serial Number 44536857 through 44706125, Includes: Ref. 3A thru 6, Serial Range: 44536857-44706125

1шт.

A77771

PISTON ASSY.

KIT piston, standard, includes piston stamped 9564 or 3163, Engine Serial Number 44536857 through 44706125, Includes: Ref. 3A thru 6, Serial Range: 44536857-44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON cylinder, stamped 9928, Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON cylinder, stamped 9564 or 3163, Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

A77744

PACKAGE

KIT piston ring, used with pistons stamped 9928, 9564, or 3163, Engine Serial Number 44536857 through 44706125, Includes: Ref. 4-6, Serial Range: 44536857-44706125

1шт.

4

NSS

NOT SOLD SEPARAT

RING compression, top, pistons Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING keystone with reverse twist, compression, middle, pistons Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces P/N J901996 ring, pistons engine s/n 44536857 through 44706125 1.75", Int, #175, Serial Range: 44536857-44706125

2шт.

8

J901597

PIN

piston, Engine Serial Number 44536857 through 44706125, Serial Range: 44536857-44706125

1шт.
