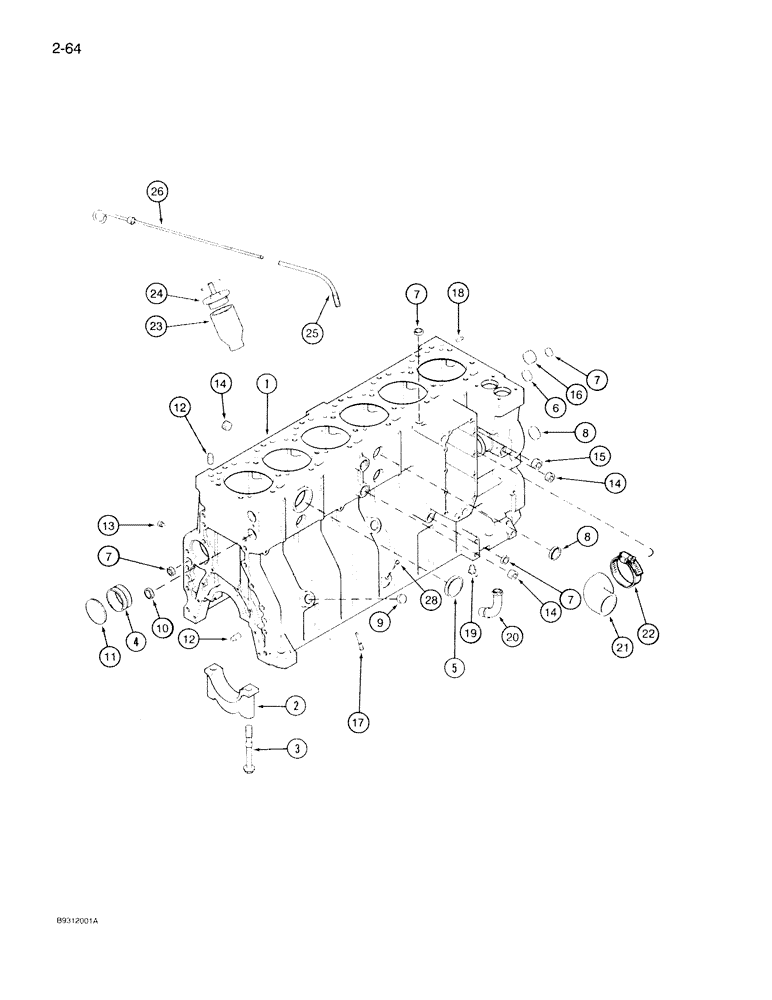

Запчасти Case IH 7130 (2-064) - CYLINDER BLOCK, 6T-830 ENGINE, BLOCK W/12 PISTON COOLING NOZZLES, ENGINE S/N 44487830 THRU 44706125 (02) - ENGINE

1989007C1

ENGINE ASSEMBLY

ENGINE ASSY.6T-830, complete, 7130 tractor, includes all parts except starter, alternater, fan, fan belt, air cleaner muffler & exhaust pipe, uses oil filter and cooler shown in Fig. 2-044, for service order: P/N 1989098C2 basic engine shown in Fig. 2-068

1шт.

1989007C2

ENGINE ASSEMBLY

ENGINE ASSY 6T-830, complete, 7130 tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses oil filter and cooler shown on Figure 2-046, for service order 1989098C2 basic engine shown on Fig 2-068

1шт.

AR174398

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174398

CORE-BASIC ENGINE

Return Number. KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

1989098C1

BASIC ENGINE

ENGINE ASSEMBLY basic, new, no longer available, order 1989098C2 basic engine shown on Figure 2-068

1шт.

P/N 1989098C1 includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors & lines, front crank pulley, belt tensioner & turbocharger, engine S/N 44536857 thru 44706125, uses Ref. 1 sleeve & pistons stamped 9928, 9564, or 3163, shown on Figure 2-088

1шт.

J921057

CRANKCASE

BLOCK ASSY, short, engine, new, includes stripped block, pistons, connecting rods & bearings, crankshaft & bearings, uses Ref. 1 sleeve & pistons stamped 8749, 9928, 9564, or 3163, in Fig. 2-088, Includes: Ref. 1 thru 9 in this figure

1шт.

P/N J921057 is no longer available, for service order J921843 on Fig 2-068

1шт.

JR921843

ENGINE, EXCHANGE

Block Assembly, Short, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly

1шт.

JC921057

CORE-SHORT ENGINE

Return Part Number, Use This Part Number To Return Short Block Core For Credit When Using a Remanufactured Assembly

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY stripped, engine, Includes: Ref. 2-9

1шт.

Order Ref. 10 thru 20 when ordering P/N JR920036 block assembly or P/N J920036 stripped block.

1шт.

1

JR920036

CRANKCASE

Block Assembly, Stripped, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly

1шт.

1

JC919374

CORE-ENGINE

Return Part Number, Use This Part Number To Return Stripped Core For Credit When Using a Remanufactured Assembly

1шт.

2

J917313

BEARING CAP

CAP bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, , Main bearing cap to block Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

camshaft, See Figure 2-058, Ref. 6

7шт.

5

A77782

PLUG

expansion, 58 mm OD, Replaces: P/N J900965 plug

1шт.

6

A77586

PLUG

expansion, (28.9 mm)

1шт.

7

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

expansion, 35 mm OD

4шт.

9

A77439

PLUG

expansion, 22 mm OD

1шт.

A77716

BLOCK

KIT block hardware, Includes: Ref. 10-20, no longer available, order components separately

1шт.

Order Ref. 10 thru 20 when ordering P/N JR920036 block assembly or P/N J920036 stripped block.

1шт.

10

A77530

PLUG

expansion, 30 mm OD

2шт.

11

J901969

PLUG

expansion, 69 mm OD

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

dowel

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

6шт.

14

A77429

PLUG

hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

hex socket, 1 inch PT

1шт.

17

J919003

NOZZLE INJECTION

NOZZLE cooling, piston

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE drain, coolant

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbo oil drain

1шт.

21

J920762

ELBOW

HOSE elbow, water, Replaces: P/N J909389 hose

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP adjustable, hose, coolant, 1-13/16 - 2-3/4

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

filler, oil

1шт.

24

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

oil dipstick

1шт.

26

J908094

DIPSTICK

oil

1шт.

27

A77595

KIT

engine block heater, not shown, See Figure 2-060 for component parts

1шт.

28

J900955

PLUG

10 mm, left hand or right hand dipstick hole, if used

1шт.
