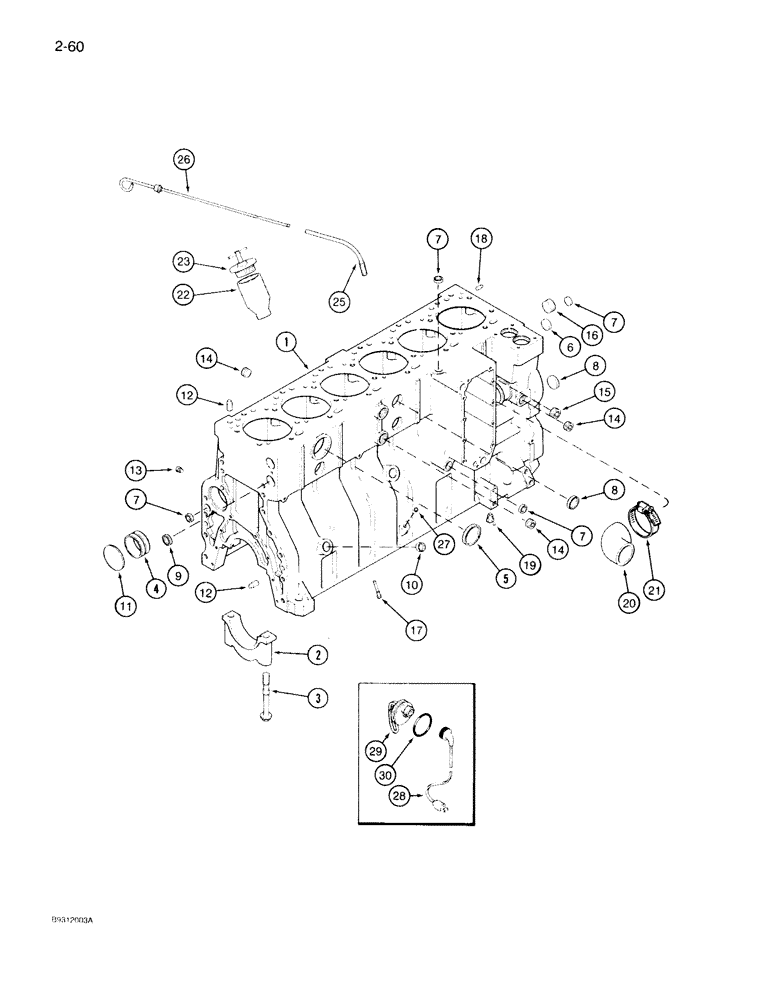

Запчасти Case IH 7130 (2-060) - CYLINDER BLOCK, 6T-830 ENGINE, BLOCK W/6 PISTON COOLING NOZZLES, PRIOR TO ENGINE S/N 44487830 (02) - ENGINE

A174182

ENGINE ASSEMBLY

complete, 7130 Tractor, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses Ref. 1 sleeve, and Ref. 3 piston, shown on Figure 2-088

1шт.

For service order 1989098C2 basic engine, shown on Figure 2-068

1шт.

AR174398

REMAN-BASIC ENGINE

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors & lines, front crank pulley, belt tensioner & turbocharger

1шт.

AC174398

CORE-BASIC ENGINE

Return Number

1шт.

87448699

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Number, Short Block, For N.A. Only

1шт.

JR912531

ENGINE, EXCHANGE

BLOCK ASSEMBLY short, engine, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC912531

CORE-SHORT ENGINE

RETURN NUMBER engine short block, use this part number to return block core for credit when using a remanufactured assembly

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 thru 8

1шт.

P/N J912531 is no longer available. Order J921057 short block and A77716 kit, shown on Figure 2-064, J921067 oil pump and J918532 plunger, shown on Figure 2-048 and (14) J917728 bolts and (12) J917729 bolts shown on Figure 2-054

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY cylinder, stripped, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER stripped block assembly, use this part number to return block core for credit when using a remanufactured assembly

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY cylinder, stripped, Includes: Ref. 2 thru 8

1шт.

P/N J911898 is no longer available. For service order (1) J920036 stripped block assembly and A77716 kit, shown on Figure 2-064, (1) J921067 oil pump and J918532 plunger, shown on Figure 2-048, (14) J917728 bolts and (12) J917729 bolts, shown on Figure 2-054

1шт.

2

J905397

CAP

bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

main bearing cap to block, special

14шт.

4

J901685

BUSHING

camshaft, See Figure 2-58, Ref. 6

7шт.

5

A77782

PLUG

expansion, 58 mm O.D., Replaces: P/N J900965 plug

1шт.

6

A77586

PLUG

expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

expansion, 35 mm O.D.

3шт.

J909415

KIT

block hardware, Includes: Ref. 9 thru 19, no longer available, order component parts separately

1шт.

9

A77530

PLUG

expansion, 30 mm O.D.

2шт.

10

A77439

PLUG

expansion, 22 mm O.D.

1шт.

11

J901969

PLUG

expansion, 69 mm O.D.

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

dowel

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

6шт.

14

A77429

PLUG

hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

hex socket, 1 inch PT

1шт.

17

J905928

NOZZLE INJECTION

NOZZLE cooling, piston

6шт.

18

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE 1/4 inch PT

1шт.

20

J920762

ELBOW

HOSE elbow, water, Replaces: P/N J909389 hose

1шт.

21

J918521

HOSE CLAMP,59mm - 83mm

CLAMP hose, coolant, 1-13/16 - 2-3/4, Replaces: P/N 214-261 clamp

1шт.

22

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

filler, oil

1шт.

23

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

oil dipstick

1шт.

26

J908094

DIPSTICK

oil

1шт.

27

J900955

PLUG

10 mm, left hand or right hand dipstick hole, if used

1шт.

A77595

KIT

engine block heater, Includes: Ref. 28-30

1шт.

P/N J905113 and P/N 196466A1 are 6ft. long. For 1ft. long cord, Order: P/N A44813.

1шт.

28

J905113

CABLE

heater, 6 feet

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

30

J910517

O-RING

seal

1шт.
