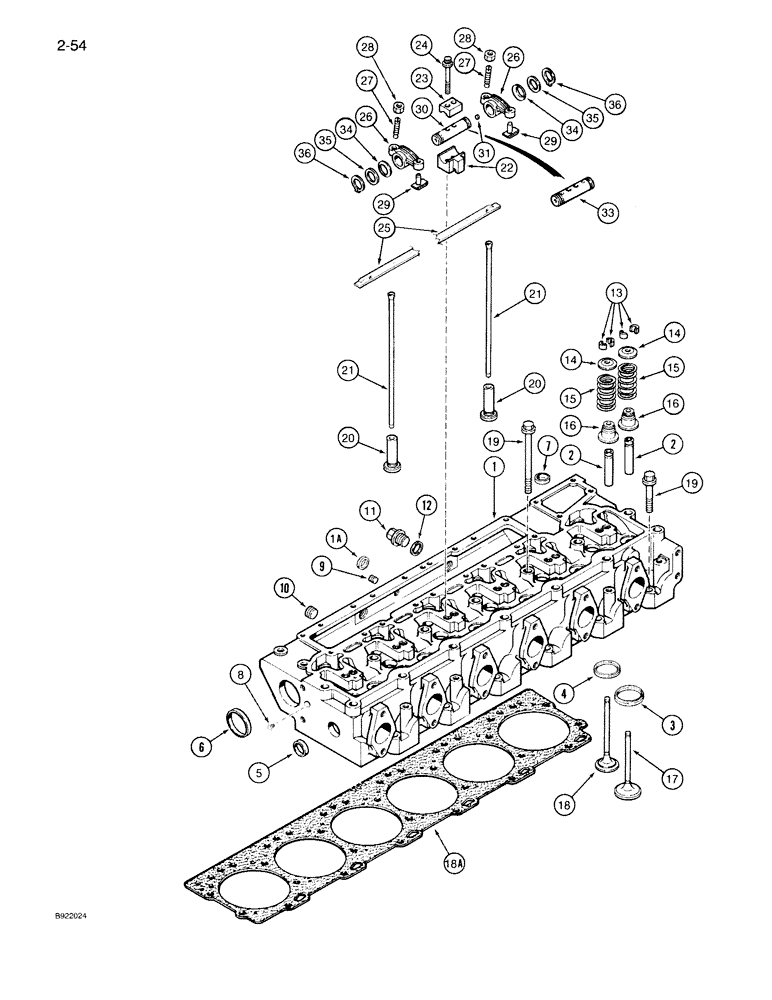

Запчасти Case IH 7130 (2-054) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, new, with valves, 7130 and 7140 tractors, Replaces: P/N J913111 and J917768 head assembly, Includes: Ref. 1 thru 18A

1шт.

JR925644

REMAN-CYLINDER HEAD

Head Assembly Cylinder, Remanufactured, 7130 and 7140Tractor Only, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly, Replaces P/N JR913111 Head Assembly

1шт.

JC913111

HEAD (CYLINDER)

Return Part Number Use This Part Number To Return Head Core For Credit When Using A Remanufactured Assembly, 7130 And 7140 Tractor Only

1шт.

JR922052

REMAN-CYLINDER HEAD

Head Assembly Cylinder, Remanufactured, 7150 Tractor Only, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly, Replaces P/N JR916464 Head Assembly

1шт.

JC916464

HEAD

Return Part Number Use This Part Number To Return Head Core For Credit When Using A Remanufactured Assembly, 7150 Tractor Only

1шт.

JR968930

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

JC968930

CORE-CYLINDER HEAD

Return Part Number

1шт.

J922052

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, new, with valves, 7150 tractor, Replaces: P/N J916464 head assembly, Includes: Ref. 1-18A

1шт.

JR936293

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

JC936293

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, without valves, 7130 and 7140 tractors, Replaces: P/N J911287 head assembly, Includes: Ref. 1A thru 7

1шт.

1

J922587

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, without valves, 7150 tractor, Replaces: P/N J919920 head assembly, Includes: Ref. 1A- 7

1шт.

1a

J912900

PLUG

PLUG expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE stem, valve, Replaces: P/N J901187 guide

12шт.

3

J908830

INSERT

INSERT seat, intake valve

6шт.

3

J914839

INSERT

INSERT seat, intake valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J904716

INSERT

INSERT seat, exhaust valve

6шт.

4

J914836

INSERT

INSERT seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

5

A77530

PLUG

PLUG expansion, 30 mm O.D.

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm O.D., Replaces: P/N J900965 plug

2шт.

7

A77590

PLUG

PLUG expansion, 28,7 mm

5шт.

8

A77534

PLUG

PLUG hex, 1/16 inch PT

1шт.

9

A77428

PLUG

PLUG hex, 1/4 inch PT

1шт.

10

A77429

PLUG

PLUG hex socket, 1/2 inch PT

2шт.

11

J904386

PLUG

PLUG hex flange, 22 mm

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, plug

2шт.

13

J901177

VALVE

KEEPER valve

24шт.

14

J912976

RETAINER

RETAINER valve spring

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE

12шт.

16

J915707

SEAL

SEAL intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE VALVE intake, Replaces: P/N J902253 and P/N J915506 valve

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE exhaust, Replaces: P/N J902254 valve

6шт.

18a

J921850

GASKET

GASKET cylinder head

1шт.

19

J907233

BOLT

BOLT cylinder head, 150 mm long, prior to Engine Serial Number 44487830

14шт.

19

J917728

BOLT

BOLT cylinder head, 160 mm long, Engine Serial Number 44487830 and after

14шт.

19

J907234

BOLT

BOLT cylinder head, 70 mm long, prior to Engine Serial Number 44487830

12шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT cylinder head, 80 mm long, Engine Serial Number 44487830 and after

12шт.

20

J907240

TAPPET

TAPPET valve, push rod

12шт.

21

J905194

PUSH ROD

ROD push, rocker arm

12шт.

22

J905870

SUPPORT

SUPPORT shaft, rocker arm

6шт.

23

J901693

CLAMP

CLAMP retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

25

J919677

TUBE

MANIFOLD oil, rocker arm, Replaces: P/N J910911 manifold

1шт.

26

J901717

ROCKER

ARM ASSEMBLY rocker, Includes: Ref. 27-29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

NUT hex, jam, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT rocker

1шт.

30

J915415

SHAFT

SHAFT rocker, no longer available, Order: P/N J919435 shaft, Ref. 33

6шт.

31

J907555

PLUG

PLUG rocker arm shaft, use with P/N J915415 rocker shaft Ref. 30 only

12шт.

33

J919435

SHAFT

SHAFT rocker, Replaces: P/N J915415 shaft and P/N J907555 plug

6шт.

34

J906100

SPRING CUP

WASHER spring

12шт.

35

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

WASHER flat, end

12шт.

36

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
