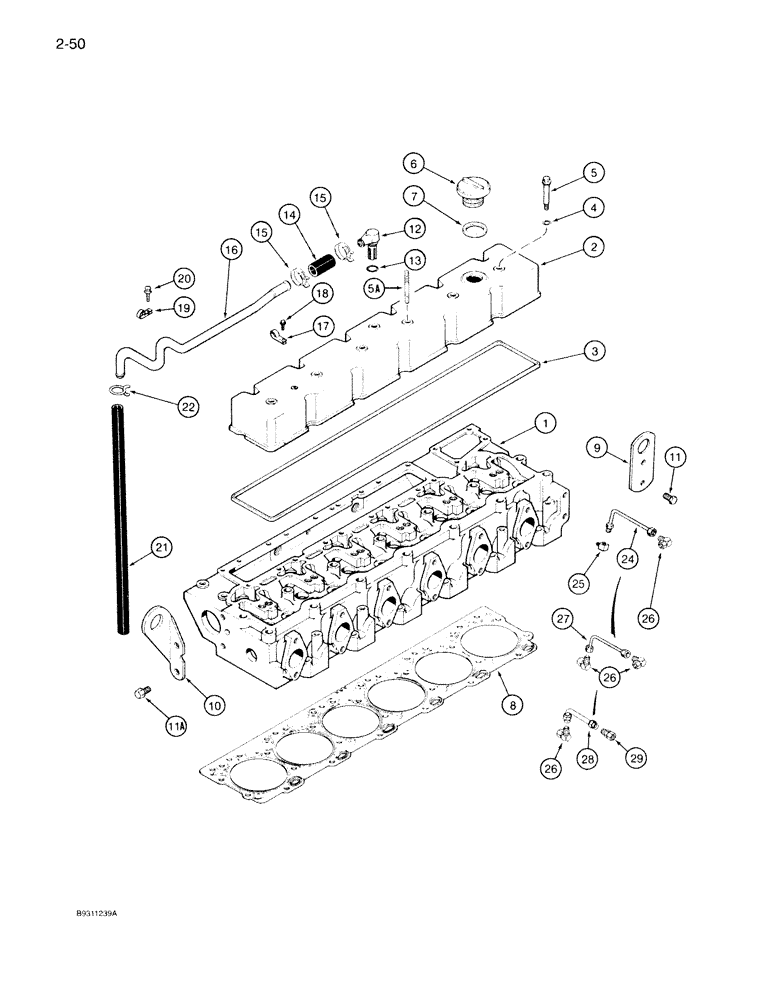

Запчасти Case IH 7130 (2-050) - CYLINDER HEAD COVER, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, See Figure 2-054 for correct assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL cover

1шт.

4

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, sealing, Replaces: P/N J910824 O-ring

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT hex, special, Replaces: P/N J901838 bolt, (6) used on 7130 and 7140 tractor, (5) used on 7150 tractor

5-6шт.

5a

J922639

STUD

valve cover and tube, wastegate actuator mounting, 7150 tractor only

1шт.

6

J902468

FILLER CAP,Male

CAP filler, oil

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING cap sealing

1шт.

8

J921850

GASKET

cylinder head, standard, Replaces: P/N J911342 and P/N J921216 gaskets

1шт.

8

J921852

GASKET

cylinder head, 0.27 mm thicker, Replaces: P/N J908119 and P/N J914305 gaskets

1шт.

8

J921853

GASKET

cylinder head, 0.48 mm thicker, Replaces: P/N J908120 and P/N J914306 gaskets

1шт.

9

J907861

LIFTING EYE

BRACKET lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

12

J920497

ELBOW

CONNECTOR vent, Replaces: P/N J906794 connector

1шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.

14

J915040

HOSE

breather tube to connector, Replaces: P/N J915040 hose

1шт.

15

J918163

CLIP

CLAMP spring type

1шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW self tapping, special, 8 x 15 mm

1шт.

19

A77538

CLIP

P style, tube retaining

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

21

A77717

HOSE

breather, tube end, Replaces: P/N A77717 hose

1шт.

22

J918163

CLIP

CLAMP hose

2шт.

24

J912802

TUBE,6.35 mm OD x 127.9 mm L

vent, air, no longer available, Order: (1) P/N J918167 tube, Ref. 27 and (2) P/N 222-42 elbow, Ref. 26

1шт.

25

A77535

ELBOW UNION

ELBOW 90°, adapter, used with P/N J912802 tube, Ref. 24

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

90°, compression, 1/4 tube O.D. x 1/8 inch PT

1-2шт.

27

J918167

TUBE,6.35 mm OD x 117.5 mm L

vent, air, prior to Engine Serial Number 44808257

1шт.

28

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent, air, Engine Serial Number 44808257 and after

1шт.

29

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER compression, 1/4 tube O.D. x 1/8 inch PT, tube to thermostat housing, Engine Serial Number 44808257 and after

1шт.
