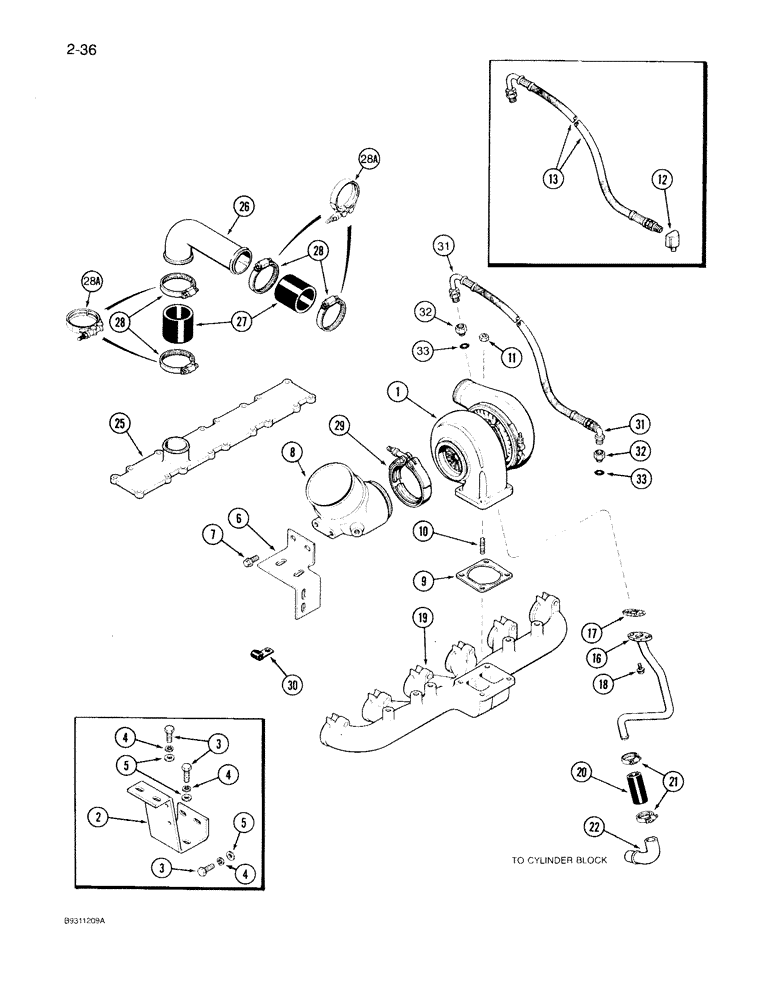

Запчасти Case IH 7130 (2-036) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY engine, See Figure 2-040 for correct assembly and component parts

1шт.

2

1289168C2

BRACKET

turbo elbow, Serial Range: prior-P.I.N.JJA0033579

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

3

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

4

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

6

1340700C1

BRACKET

turbo elbow, P.I.N. JJA0033579 and after

1шт.

7

905-10025

BOLT,Hex Flg, M10 x 25mm

hex flange, 10 - 1.5 x 25 mm

2шт.

8

A184232

ELBOW UNION

ELBOW turbocharger

1шт.

9

J911941

GASKET

mounting, turbocharger

1шт.

10

J905417

STUD

mounting

4шт.

11

J901961

NUT

hex, special

4шт.

12

A77588

ELBOW

adapter, 90°

1шт.

Prior to Engine Serial Number 44487830

1шт.

13

J909545

HOSE

Supply, Oil

1шт.

Prior to Engine Serial Number 44487830

1шт.

16

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

drain, oil, Replaces: P/N J913396 tube

1шт.

17

J914388

GASKET

drain tube

1шт.

18

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm

2шт.

19

J906720

MANIFOLD

exhaust, See Figure 2-032

1шт.

20

J903745

LARGE HOSE

HOSE tube, drain

1шт.

21

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

25

J906737

COVER ASSY

COVER manifold, intake, See Figure 2-032

1шт.

26

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

air, crossover

1шт.

27

J916529

TRANSMISSION SLEEVE

HOSE tube, air, Replaces: P/N J904422 hose

2шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adj, 2-1/16 to 3 inch dia, no longer used, Order: Ref. 28A, P/N J923580 clamp

4шт.

28a

J923580

CLAMP

adjustable, hose retaining, Replaces: P/N 214-261 clamp

4шт.

29

A170807

CLAMP,102mm ID

elbow

1шт.

30

362667R1

CLIP

retainer, cable

1шт.

31

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply, Replaces J913759

1шт.

Engine Serial Number 44487830 and after

1шт.

32

J919687

HYD CONNECTOR

ADAPTER female, Replaces: P/N J916857 adapter, Includes: Ref. 33

2шт.

Engine Serial Number 44487830 and after

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
