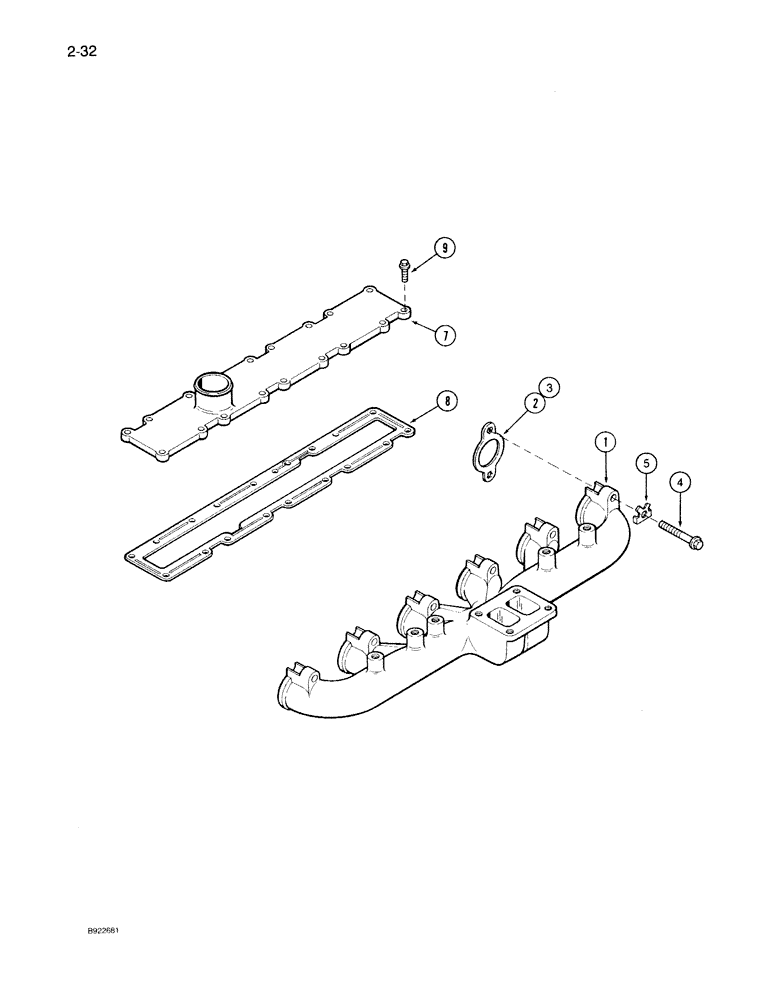

Запчасти Case IH 7130 (2-032) - MANIFOLDS, 6T-830 ENGINE (02) - ENGINE

1

J906720

MANIFOLD

exhaust

1шт.

2

J911942

GASKET

manifold, exhaust, 1.27 - 1.4 mm thick, no longer used, Order: Ref. 3, P/N J921787 gasket

6шт.

3

J921787

GASKET

manifold, exhaust, 1.0 mm thick

6шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.50 x 70 mm, exhaust

12шт.

5

J914708

LOCKING PLATE

PLATE locking, manifold bolt, exhaust

12шт.

A77611

MANIFOLD

KIT intake manifold, Includes: Ref. 7-8

1шт.

7

J906737

COVER ASSY

COVER manifold, intake

1шт.

8

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold cover to cylinder head Hex Flg Hd, M8 x 1.25 x 25

18шт.
