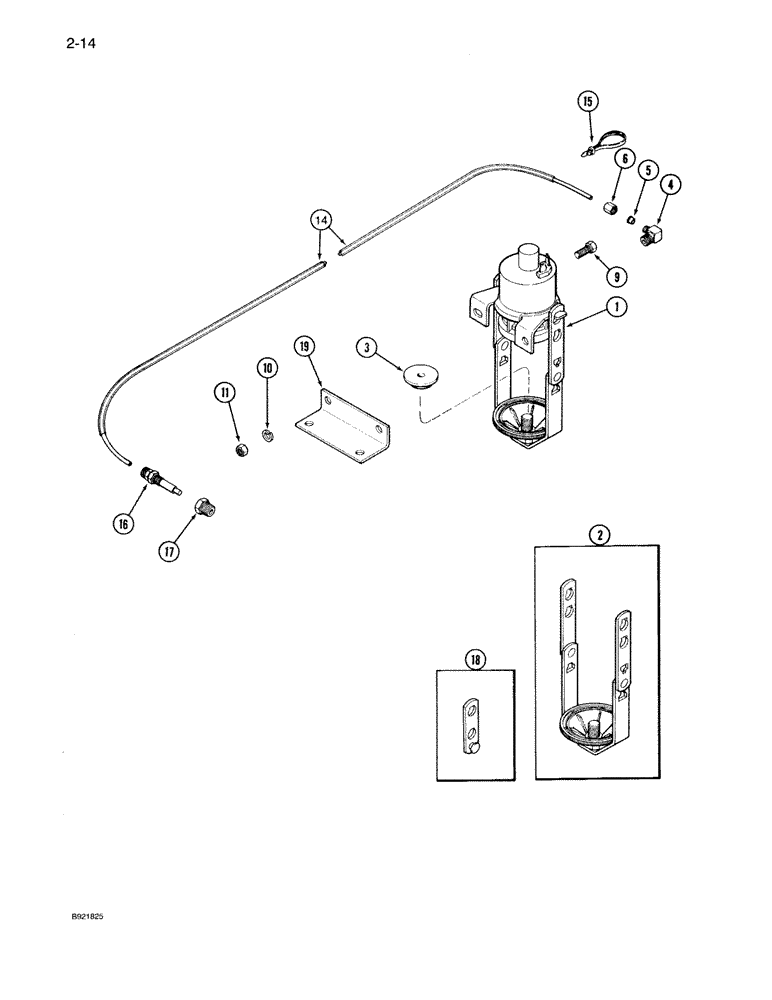

Запчасти Case IH 7130 (2-014) - ETHER STARTING SYSTEM (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY ether start, Includes: Ref. 2-6

1шт.

2

D77648

BAIL

HANGER ether container

1шт.

3

1963571C1

GASKET

GASKET injector solenoid, 19/32 inch diameter hole

1шт.

3

395686R1

GASKET

injector solenoid, 15/64 inch diameter hole if equipped

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8" tube 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

14

A149932

TUBE

TUBE ether, 2006 mm (79 inch) long

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.

16

A172900

NOZZLE CAP

NOZZLE atomizer

1шт.

17

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

pipe, 1/4 male x 1/8 inch female, brass, Replaces: P/N 221-84 reducer

1шт.

18

R30812

LINK

hanger extension

2шт.

19

1960785C2

SUPPORT

BRACKET ether mounting, Replaces: P/N 1960785C1

1шт.
