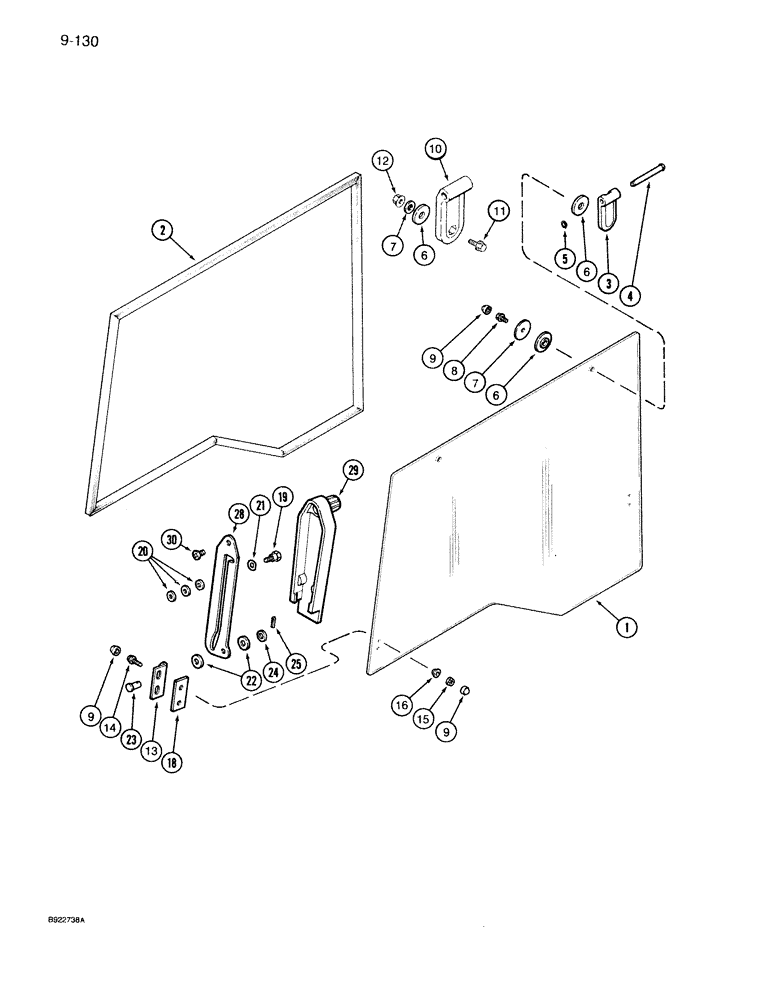

Запчасти Case IH 7130 (9-130) - CAB RIGHT SIDE WINDOW ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

96671C3

GLASS

- window, right side, Replaces: 96671C2

1шт.

2

1987247C1

SEAL

- window, Replaces: 97072C2

1шт.

3

97166C1

HINGE

- window, no longer available, order 1999808C1, 107135A1, and 97005C1, Ref. 10-12

2шт.

4

K303517

PIN

- 97166C1 or 1999808C1 hinge

2шт.

5

31355R1

RING, SNAP,M8, Ext

RING - retainer, hinge pin

2шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

2-4шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- flat special, 6 mm

2шт.

8

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

- hex flange lock, 6 x 12 mm, if used

2шт.

9

K651962

CAP

- plastic if equipped

1шт.

10

1999808C1

HINGE

- window

2шт.

11

107135A1

BOLT

BOLT - hex flange, 6 x 25 mm

2шт.

12

97005C1

FLANGE NUT

- hex flange, self-locking, 6 mm

2шт.

13

1954284C1

BRACKET

- pivot, sector

2шт.

14

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange lock, 6 x 20 mm

4шт.

15

97005C1

FLANGE NUT

- hex flange lock, 6 mm

4шт.

16

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

- bolt

4шт.

18

109587C2

PAD

- bracket

2шт.

19

1954283C1

BOLT (SPREADER),Hex, M6 x 1 x 25mm

BOLT - hex shoulder, 6 x 25 mm

2шт.

20

1954279C1

WASHER

- flat, 7 x 16 x 2 mm

6шт.

21

96849C2

WASHER

- spring, curved

4шт.

22

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

- flat, sector

4шт.

23

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis, 5/16 x 23/32 inch

2шт.

24

1954280C1

WASHER,8.74mm ID x 17.48mm OD x 1.65mm Thk

- flat, pivot

2шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

28

96810C5

ARM

- sector, window

2шт.

29

1954277C1

COVER ASSY

COVER - arm, latch

2шт.

30

175-466

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- Phillips truss head, 5/16 NC x 5/8 inch

2шт.
