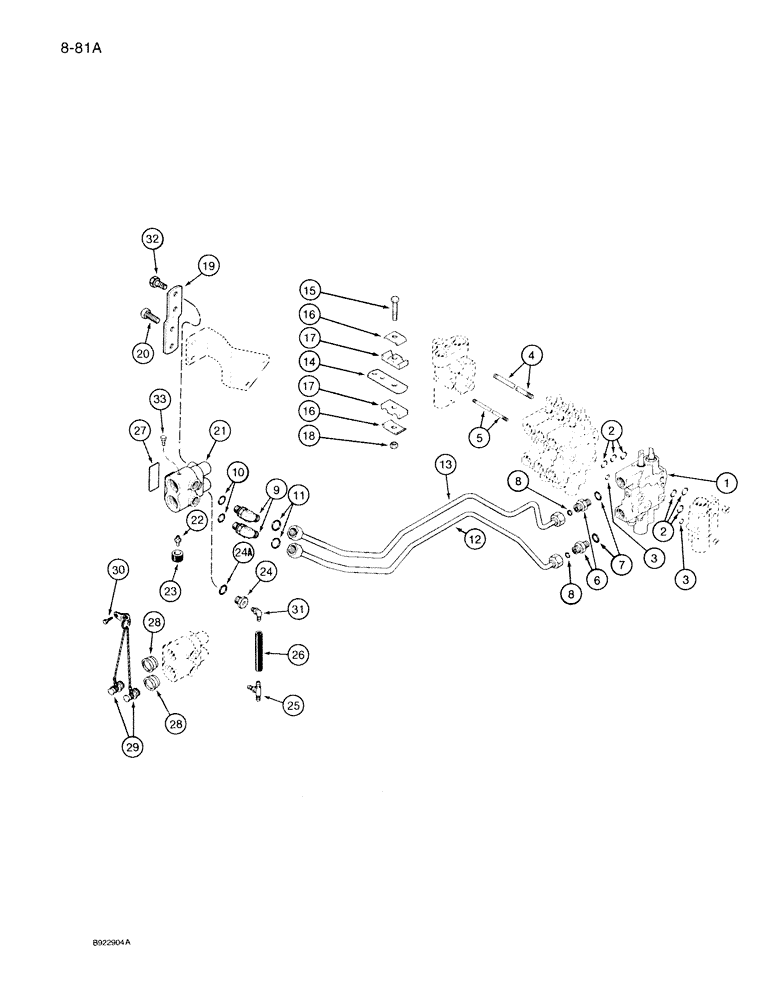

Запчасти Case IH 7130 (8-081A) - FOURTH CIRCUIT REMOTE HYDRAULICS, TRANSMISSION S/N AJB0060500 AND AFTER (08) - HYDRAULICS

1

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - fourth remote, See Figures 8-064 - 8-066, Replaces: P/N 1980450C5

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

4

1986938C1

STUD

- valve, 12 x 312 mm, class 10.9

2шт.

5

1334613C2

STUD

- valve, 10 x 312 mm, class 10.9

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 7-8 1"-14 ORFS x 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90° adjustable, 7/8 x 1 inch thread, Includes: Ref. 10-11

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

12

102221A1

TUBE,0.625" OD, 929, 258 mm Length

- raise, fourth valve

1шт.

13

102222A1

TUBE,0.625" OD, 925, 205 mm Length

- drop, fourth valve

1шт.

14

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

15

815-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

16

486004R1

CLAMP

- tube

2шт.

17

224968C2

STRIP

CLAMP - isomount strip

2шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10

1шт.

19

120012C1

SUPPORT

- coupler

1шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm, At third circuit coupler

2шт.

21

103866A2

COUPLING

COUPLER ASSEMBLY - quick, See Figure 8-068, Replaces: P/N 103866A1

1шт.

22

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

1шт.

23

1272764C1

SEAL

SEAL - drain

1шт.

24

1334586C1

PLUG

ADAPTER - drain coupler, special, Includes: Ref. 24A

1шт.

24a

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

25

1289480C1

TEE

- hose, 1/8 PT x 1/4 x 1/4 inch barbed end, at third circuit coupler

1шт.

26

1289484C1

HOSE

- 1/4 (6.3) x 4-9/16 inch (115 mm) long, drain, elbow to tee, cut from 427683C2 shown below

1шт.

Located at third circuit coupler, move to fourth circuit coupler when adding fourth circuit.

1шт.

27

1334584C3

DECAL

- coupler, shown on Figure 9-158

1шт.

28

103871A1

CAP

SOCKET - dust plug

2шт.

29

109021A2

PLUG

- dust, coupler, Replaces: P/N 109021A1

1шт.

30

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

31

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- 90°, special

1шт.

Located at third circuit coupler, move to fourth circuit coupler when adding fourth circuit.

1шт.

32

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

Located at third circuit coupler, move to fourth circuit coupler when adding fourth circuit.

1шт.

33

221-849

PLUG,Hex Soc, 1/8"-27

- hex, 1/8 inch PT

1шт.

Located at third circuit coupler, move to fourth circuit coupler when adding fourth circuit.

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - 1/4 (6.3) x 600 inch, (15240 mm) long

1шт.
