Запчасти Case IH 7130 (8-074) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

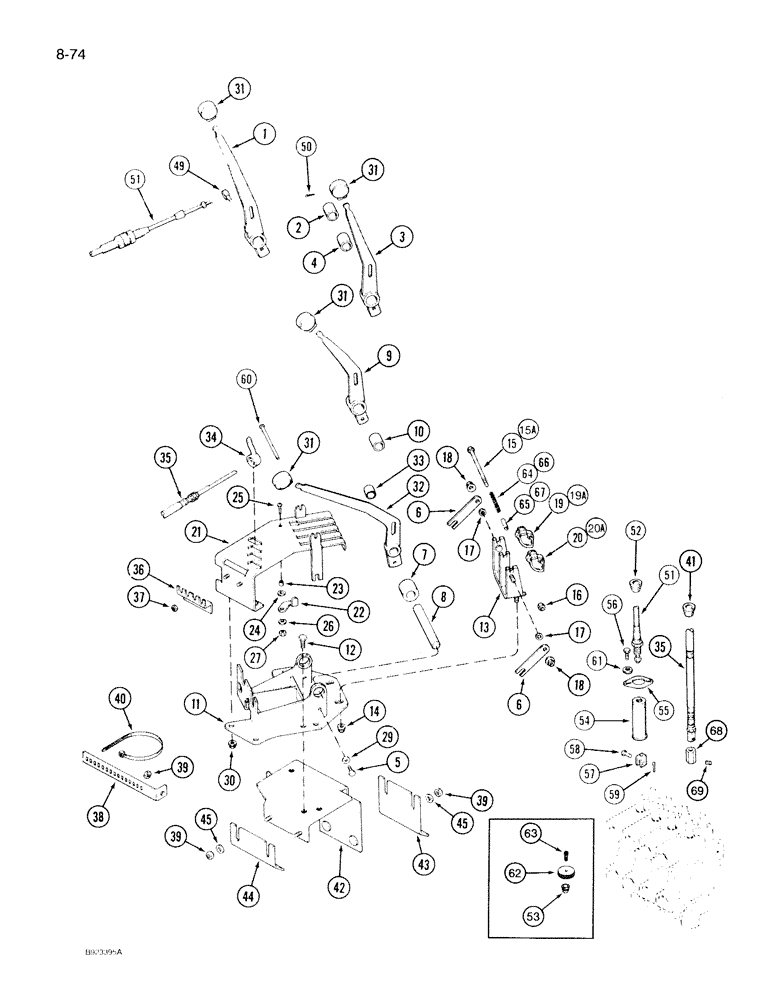

Схема запчастей Case IH 7130 - (8-074) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS
7
42
3
19
44
55
11
52
37
31
62
39
63
2
19a
67
6
30
18
38
43
57
65
35
13
9
66
23
68
17
25
8
54
60
69
45
51
59
61
22
31
50
12
35
15a
21
6
39
34
16
20
24
32
15
56
18
31
5
33
45
31
26
29
51
1
53
27
64
14
36
41
39
4
49
58
20a
17
40
10

Артикул

Название

Примечание

Количество

1

96780C4

LEVER

ASSEMBLY - control, first remote, Includes: Ref. 2

1шт.

2

676862R1

BUSHING

- pivot

1шт.

3

96782C2

LEVER

ASSEMBLY - control, second remote, Includes: Ref. 4

1шт.

4

676862R1

BUSHING

- pivot

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

6

1975755C1

LARGE PLATE

STRAP - tie, retainer

2шт.

7

1276364C1

SPACER

HUB - long two used on two circuit

1шт.

8

96778C1

SHAFT

- pivot

1шт.

9

96784C2

LEVER

ASSEMBLY - control, third remote, Includes: Ref. 10

1шт.

10

676862R1

BUSHING

- pivot

1шт.

11

96544C2

SUPPORT ASSY.

SUPPORT - pivot Replaces: P/N 96544C1

1шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

13

96713C4

BRACKET

- lockout, float

1шт.

14

825-2308

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

15

426-484

BOLT,Hex, 1/4" - 20 x 5-1/4", Gr 8

- hex, 1/4 NC x 5-1/4 inch, if used

1шт.

15a

826-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

- hex, 8 - 1.25 x 140 mm, class 10.9, if used

1шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

- hex, flange, 6 mm

2шт.

19

96955C4

LEVER

- lockout first and second remote, used with 1/4 inch diameter bolt, Ref.15, if used

2шт.

19a

1990729C1

LEVER

- lockout first and second remote, used with 8 mm diameter bolt, Ref. 15A, if used

2шт.

20

1283461C4

LEVER

- lockout third and fourth remote, used with 1/4 inch diameter bolt, Ref. 15, if used

2шт.

20a

1990730C1

LEVER

- lockout third and fourth remote, used with 8 mm diameter bolt, Ref. 15A, if used

2шт.

21

96746C3

PLATE ASSY.

PLATE - sector valve

1шт.

22

96851C2

LEVER

- neutral, lockout

1шт.

23

96963C2

SPACER

- lever

1шт.

24

1251730C2

LOCK WASHER

- friction

1шт.

25

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

BOLT - hex, 4 x 20 mm

1шт.

26

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

1шт.

27

1975719C1

LOCK NUT,M4 x .7, Cl 8

NUT - hex, 4 mm

1шт.

29

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

31

D135387

GRIP

KNOB - lever, remote, black

4шт.

32

96786C2

LEVER

ASSEMBLY - control, fourth remote, Includes: Ref. 33

1шт.

33

676862R1

BUSHING

- pivot

1шт.

34

96816C3

KNOB

- control, flow

4шт.

35

96711C3

CABLE

ASSEMBLY - control, Includes Ref. 68 and 69

4шт.

REF. 35 & RELATED SERVICE BULLETIN: THIS INFO FROM S/B NTR SB 063 89 MAY BE MIS-LEADING CONCERNING THE JAM NUT. IT REFERENCES A LOCK NUT, 129-163. 129-163 IS .375-24 THREAD. PRINT REVISION "H" SAYS THE JAM NUT NOW BECOMES A SIZE OF .375 - 32 UNEF THREAD. FOR THIS CABLE ASSY, THE NUTS THAT MAY BE NEEDED ARE EITHER NT639 / NT640. IT IS BELIEVED THAT THE NT639 IS FOR THE .375-32. THE .375 - 32 IS AN ODD SIZE AND IS HARD TO ACQUIRE. CASE DOES NOT OFFER THIS SIZE.

1шт.

36

96761C1

SUPPORT ASSY.

SUPPORT - cable, flow control, if used

1шт.

37

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

If used M6 x 1, Flg, Cl 8

2шт.

38

96954C1

BRACKET

- cable, flow control, if used

1шт.

39

825-1408

NUT,M8, Cl 8

10шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

41

96990C1

GROMMET

- cable

1шт.

42

1283976C3

PLATE ASSY.

PLATE - support, valve

1шт.

43

1283978C1

BRACKET

- mounting, front

1шт.

44

1283979C1

BRACKET

- mounting, rear

1шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

49

1990625C1

ADAPTER,9.53mm OD x 23.01mm L

- cable, end, Replaces: P/N 1276365C1, adapter

4шт.

50

732-2016

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm

4шт.

51

96481C2

CABLE

ASSEMBLY - control, valve, Includes: Ref. 52

2шт.

52

96989C2

GROMMET

- cable

5шт.

53

96987C1

GROMMET

- cable

2-4шт.

54

1340478C1

HOUSING

- support, cable

4шт.

55

1280055C1

FLANGE

- housing

4шт.

56

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, 6 x 14 mm, class 10.9

6шт.

57

96790C2

CLEVIS COUPLING

CLEVIS - cable

4шт.

58

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis

4шт.

59

732-2012

COTTER PIN,M2 x 12

4шт.

60

96829C1

AXLE PIN

PIN - lock, neutral

1шт.

61

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

62

1340223C1

KNOB

- control, flow Tractors without in-cab flow control

2-4шт.

63

484-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, No. 10 NF x 5/8 inch

2-4шт.

64

1975730C1

SPRING

- 7 x 9 x 22 mm free length, float lockout, 2 used with three and four circuit used with 1/4 inch diameter bolt, Ref. 15 if used

1шт.

65

1975732C1

SPACER

- 7 x 10 x 23 mm, lockout, three circuit only, used with 1/4 inch diameter bolt, if used

1шт.

66

1999714C1

SPRING

- 10 x 12 x 25 free length, float lockout, used with 8 mm diameter bolt, Ref. 15A, if used

1шт.

67

1999713C1

SPACER

- 9 x 11 x 23 mm, lockout, three circuit only, used with 8 mm diameter bolt, if used

1шт.

68

1955422C1

FITTING

- 96711C3 cable end, used with Ref. 69 set screw

2-4шт.

69

84-1104

SET SCREW,#10 - 32 x 1/4"

SCREW - set, hex socket, No. 10 NF x 1/4 inch, cup point

2-4шт.

Выбрано товаров: 69
