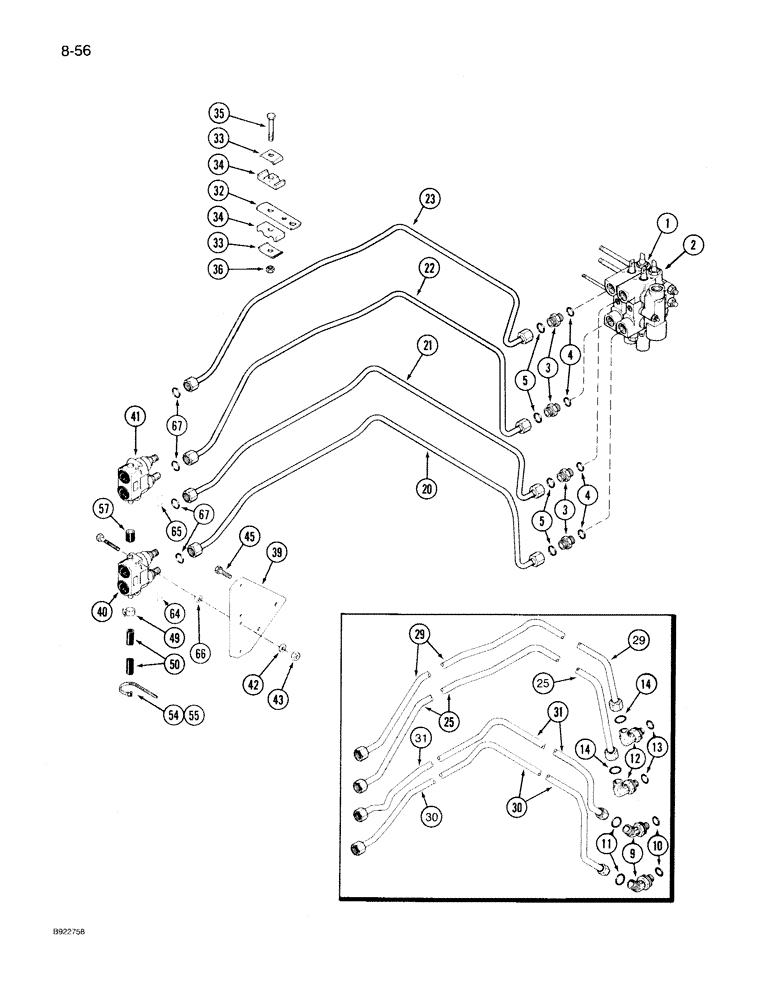

Запчасти Case IH 7130 (8-056) - FIRST AND SECOND CIRCUIT REMOTE HYDRAULICS, TRANSMISSION S/N AJB0018756 THROUGH AJB0060499 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, first circuit, See Figures 8-060 - 8-062

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - control, second circuit, See Figures 8-064 - 8-066

1шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 4-5 1"-14 ORFS x 7/8"-14 ORB

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

9

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45°, adj, 7/8 x 1 inch thread if equipped, Includes: Ref. 10-11

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90°, adj, 7/8 x 1 inch thread if equipped, Includes: Ref. 13-14

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

1348305C1

HYD TUBE,0.625" OD, 769.3, 587 mm Length

TUBE -raise, second valve, Replaces: P/N 1348303C1

1шт.

21

1348306C1

HYD TUBE,0.625" OD, 764.3, 566.5 mm Length

TUBE - drop, second valve, Replaces: P/N 1348304C1

1шт.

22

1348303C1

HYD TUBE,0.625 mm OD, 763, 522.5 mm Length

TUBE - raise, first valve, Replaces: P/N 1348305C1

1шт.

23

1348304C1

HYD TUBE,0.625" OD, 769.3, 225 mm Length

TUBE - drop, first valve, Replaces: P/N 1348306C1

1шт.

25

1340618C1

TUBE,0.625" OD, 762.5, 514.1 mm Length

- raise, first valve if equipped

1шт.

29

1340617C1

TUBE,0.625" OD, 762.5, 514.5 mm Length

- drop, first valve if equipped

1шт.

30

1340620C1

TUBE

- raise, second valve if equipped

1шт.

31

1340619C1

TUBE,0.625" OD, 751.3,566.5 mm Length

- drop, second valve if equipped

1шт.

32

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

33

486004R1

CLAMP

- tube

2шт.

34

224968C2

STRIP

- isomount, tube

2шт.

35

828-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

- hex, 8 x 65 mm, class 10.9

1шт.

35

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

hex, 8 x 70 mm

1шт.

36

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm

1шт.

39

1340625C1

SUPPORT

BRACKET - mounting, coupler

1шт.

40

REF

INSTRUCTION

COUPLER ASSEMBLY - first circuit, See Figure 8-068

1шт.

41

REF

INSTRUCTION

COUPLER ASSEMBLY - second circuit, See Figure 8-068

1шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

44

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.50 x 70 mm

4шт.

45

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

49

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

1шт.

50

1342156C1

HOSE

- drain, coupler, 510 mm

1шт.

54

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie

1шт.

55

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

57

1342159C1

HOSE

- drain, short, 20 mm

1шт.

64

1334581C2

DECAL

- coupler, first, shown on Figure 9-158

1шт.

65

1334582C2

DECAL

- coupler, second, shown on Figure 9-158

1шт.

66

1342182C1

SPACER

- coupler

4шт.

67

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
