Запчасти Case IH 7130 (8-050) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

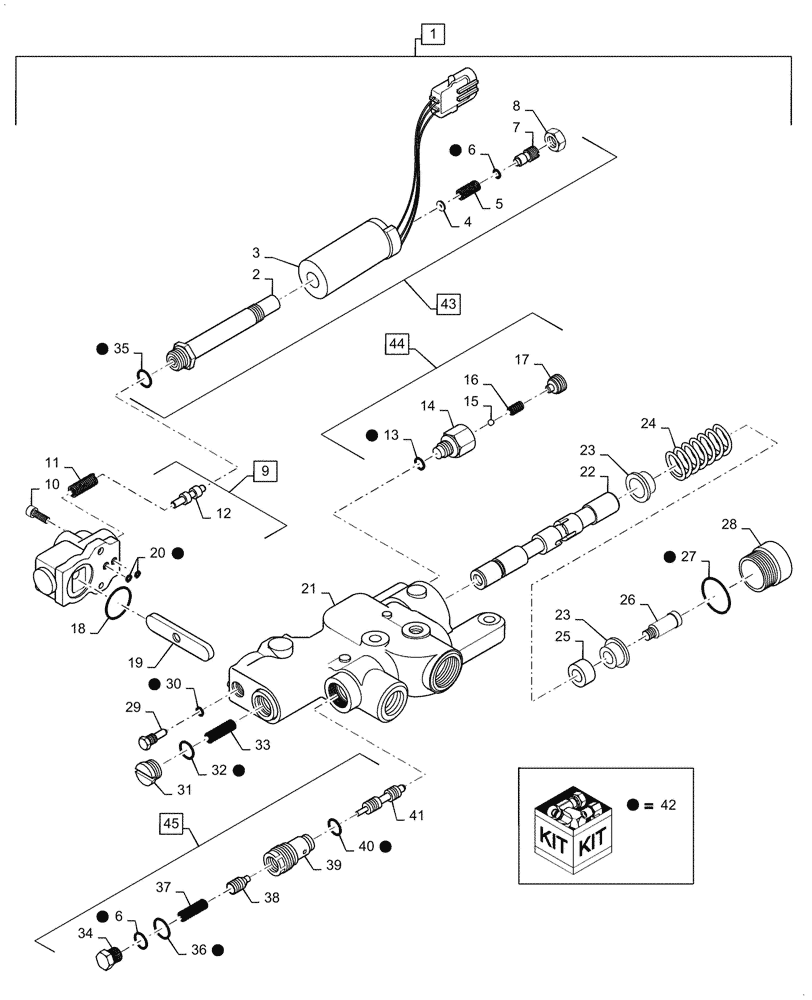

Схема запчастей Case IH 7130 - (8-050) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS
42
6
42
26
16
40
24
23
42
5
37
33
42
17
42
6
28
42
42
19
36
23
20
3
10
18
2
34
42
14
11
30
15
35
32
43
38
12
13
42
27
45
42
8
31
4
42
21
7
22
29
44
25
39
9
42
1
41

Артикул

Название

Примечание

Количество

1

92949C5

VALVE

Hitch Draft Control, Incl 2 - 45

1шт.

2

NSS

NOT SOLD SEPARAT

CORE, Solenoid, Incl in 43

1шт.

3

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY, Solenoid, Incl in 43

1шт.

Internal washer NSS

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, Flat, Incl in 43

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING, Solenoid, Incl in 43

1шт.

6

A47983

O-RING,2.38mm Thk x 18.82mm ID

2шт.

7

NSS

NOT SOLD SEPARAT

PLUG, Adjustment, Incl in 43

1шт.

8

NSS

NOT SOLD SEPARAT

NUT, 7/16" NF Hex Jam, Incl in 43

1шт.

9

1986877C1

PACKAGE

BODY, Solenoid Mounting; Incl 12, 18, 20

1шт.

10

1971618C1

SCREW

2шт.

11

1971620C1

SPRING

Pivot Lever

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL, Incl in 9

1шт.

13

N6617

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

BODY, Plug, Incl in 44

1шт.

15

211-1007

BALL,7/32" Dia

Chrome Alloy Steel

1шт.

16

1971612C1

VALVE SPRING

Sensing Plug

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG, Sensing Check; Incl in 44

1шт.

18

1971617C1

O-RING

1-3/16 ID x 1/16 inch

1шт.

19

1971609C1

LEVER

Pivot

1шт.

20

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

BODY, Valve; Incl in 1

1шт.

There used to be a plug that fit in the far end. The plug is P/N 1971622C1 and the O-ring is P/N 1971623C1.

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL, Valve; Incl in 1

1шт.

23

1971599C1

WASHER

Special Deep

2шт.

24

1971621C1

SPRING

Valve Spool

1шт.

25

1971619C1

SPACER

Valve Spool

1шт.

26

1971615C2

SCREW

Spool, Incl 27

1шт.

27

238-5125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

28

1971616C1

END ASSY.

Cap Assy, End

1шт.

29

1971603C1

PLUG

Pivot, Incl 30

1шт.

30

1971604C1

O-RING

15/64 ID x 1/16 inch

1шт.

31

1971614C1

PLUG

Slotted, Incl 32

1шт.

32

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

33

1971620C1

SPRING

Pivot Lever

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY, Lockout, Load Check, Incl in 45

1шт.

35

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

36

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING, Poppet, Incl in 45

1шт.

38

NSS

NOT SOLD SEPARAT

POPPET, Lockout Plunger, Incl in 45

1шт.

39

NSS

NOT SOLD SEPARAT

BODY, Lockout Plunger, Incl in 45

1шт.

40

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

41

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY, Lockout, Incl in 45

1шт.

42

1971624C2

SEAL KIT

Valve, Incl 6, 13, 18, 20, 27, 30, 32, 35, 36, 40

1шт.

43

1346208C1

SOLENOID

Coil and Core Assy, Incl 2 - 8, 35

1шт.

44

1971611C1

PLUG

Sensing Check, Incl 13 - 17

1шт.

45

1346209C1

PACKAGE

KIT, Lockout, Load Check; Incl 6, 34, 36 - 41

1шт.

Выбрано товаров: 47
