Запчасти Case IH 7130 (8-044) - HITCH CONTROL (08) - HYDRAULICS

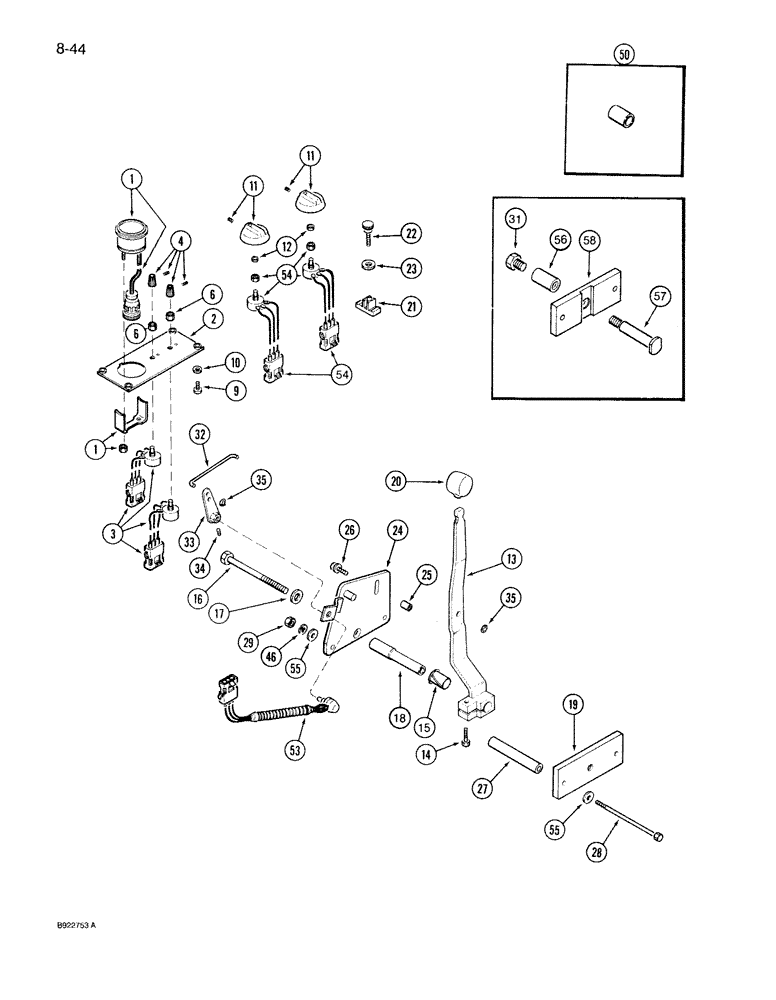

Схема запчастей Case IH 7130 - (8-044) - HITCH CONTROL (08) - HYDRAULICS
53
22
35
10
56
20
21
11
16
13
54
1
15
2
11
46
12
35
33
4
28
18
19
9
31
34
24
23
6
14
29
27
58
57
1
25
3
54
55
26
17
55
6
50
32

Артикул

Название

Примечание

Количество

1

1983331C1

GAUGE

- display, seven segment

1шт.

2

1546482C1

PLATE ASSY.

PLATE - panel, plastic, Replaces: P/N A186066 metal plate

1шт.

3

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge 10,000 Ohm, 8V

2шт.

4

A186263

KNOB

Speed, Drop and Hitch

2шт.

6

A186265

NUT

- retainer

2шт.

9

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- pan head slotted machine, No. 10 NF x 1/2 inch

4шт.

10

495-31022

WASHER,#10

4шт.

11

96729C1

KNOB

- lever, draft and sensing

2шт.

11

1977591C1

KNOB

- lever, sensing used on 4-Post ROPS

1шт.

12

97121C1

FRICTION WASHER

- friction

2шт.

13

1280384C3

HANDLE

ASSEMBLY - hitch position control

1шт.

14

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

15

1283599C1

BUSHING,19.08mm ID x 28.58mm OD x 28.57mm L

- pivot, lever

1шт.

16

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

1шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

18

1340476C2

SPACER

- pivot support

1шт.

19

1340477C1

LARGE PLATE

PLATE - pivot support

1шт.

20

A177435

BALL KNOB

KNOB - lever

1шт.

21

1259806C1

BAR

- stop-handle

1шт.

22

96860C1

KNOB

- bar, stop

1шт.

23

1971243C1

WASHER

- nylon

1шт.

24

96667C1

PLATE ASSY.

PLATE - support

1шт.

25

96679C1

STOP

- handle

1шт.

26

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 x 20 mm, polyseal

1шт.

27

96681C1

SPACER

- plate

2шт.

28

827-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 10.9

- hex, 8 x 160 mm

2шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

31

326-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 8

- hex, 5/8 NC x 3/4 inch

1шт.

32

96677C1

ROD

- control

1шт.

33

96673C4

LEVER ASSY.

LEVER - control, Replaces: P/N 96673C3

1шт.

34

877-1046

SET SCREW,M4 x 6mm

SCREW - headless socket, 4 x 6 mm

1шт.

35

96686C1

RING

- retaining

2шт.

46

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

50

97203C2

SPACER

- pivot without hitch

1шт.

53

111448A1

POTENTIOMETER,5000 Ohm, 8V

Gauge Position, Replaces A186003 5000 Ohm, 8V

2шт.

54

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge, Load and Travel 10,000 Ohm, 8V

2шт.

55

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

56

96680C1

SPACER

- pivot if equipped

1шт.

57

1280374C1

BOLT,Shldr, 5/8" - 11 x 109.80mm, Gr 8

BOLT - shoulder if equipped

1шт.

58

1280393C1

PLATE ASSY.

PLATE - support, outside if equipped

1шт.

Выбрано товаров: 40
