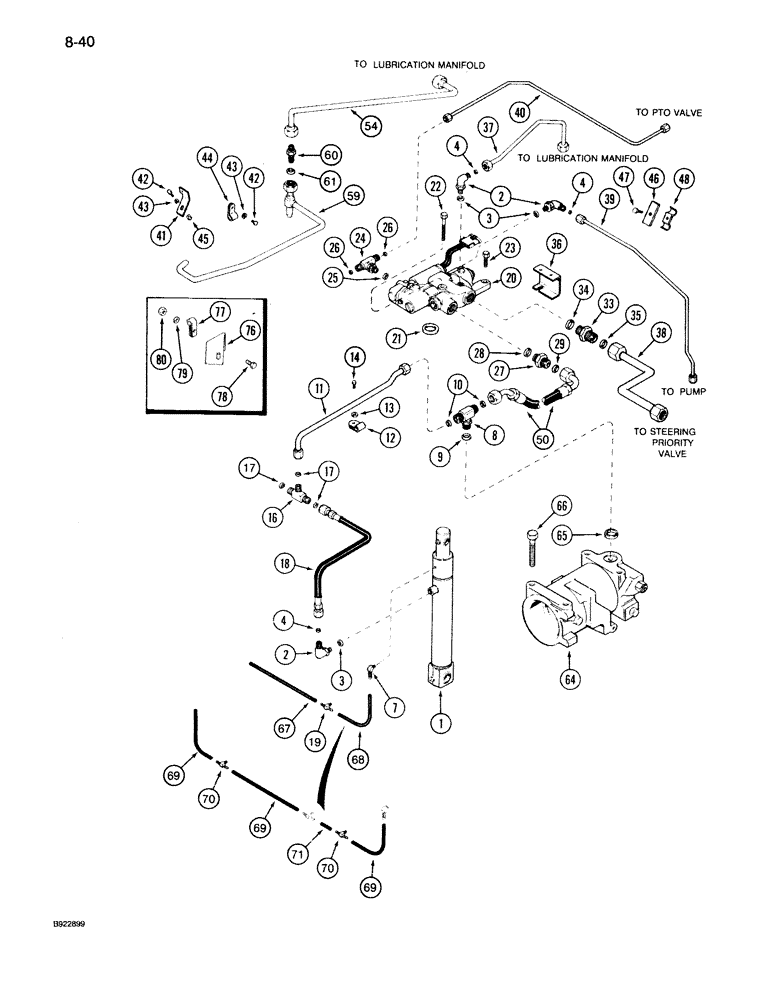

Запчасти Case IH 7130 (8-040) - THREE POINT HITCH HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, See Figure 8-046

2шт.

2

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90°, adjustable, 9/16 x 11/16 inch thread, Includes: Refs. 3-4

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

7

401967R1

ELBOW

- 90 degree, 1/8 PT x 1/4 inch barb end

2шт.

8

201-403

TEE,1"-14 x 7/8"-14 Br, ORFS

Adjustable, Includes Ref. 9 & 10 1"-14 x 7/8"-14 Br, ORFS

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

2шт.

11

1968035C1

HYD TUBE,0.5" OD

TUBE - booster, hitch

1шт.

12

S77322

CLAMP

- tube retaining

1шт.

13

95-81070

WASHER,.344" x 3/4" x .120"

1шт.

14

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

16

201-409

TEE,13/16"-16 ORFS

- 13/16-16 inch face seal branch x face seal x face seal, Includes: Ref. 17

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

3шт.

18

1342161C1

HOSE ASSY.,9.53mm ID x 736.6mm L, SAE 100R2

HOSE - cylinder, assist, One Straight End and One 45 Degree End

2шт.

18

1334429C1

HOSE ASSY.,9.53mm ID x 482.6mm L, SAE 100R2

HOSE - cylinder, assist, Two Straight End

2шт.

19

1269180C1

FITTING

TEE - hydraulic, 1/4 x 1/4 barb end x 1/8 inch PT

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - control, hitch, See Figure 8-050

1шт.

21

238-5125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

- 1-5/16 ID x 3/32 inch wide

1шт.

22

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

with hitch Hex, M10 x 80, 8.8

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Without hitch Hex, M10 x 20, 8.8, Full Thd

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

24

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

- adj, 7/16 x 9/16 x 9/16 inch thread with MFD, Includes: Ref. 25-26

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

2шт.

27

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 28-29 1"-14 ORFS x 7/8"-14 ORB

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

33

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 34-35 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

36

1289467C1

BRACKET

- support, tube with hitch

1шт.

36

1334651C1

BRACKET

- support, tube without hitch

1шт.

37

1968015C1

HYD TUBE

TUBE - return, valve

1шт.

37

1342145C1

TUBE

- return, valve Transmission Serial Number AjB0044915 and After.

1шт.

38

1289198C1

HYD TUBE

TUBE - inlet, valve

1шт.

39

1289368C4

HYD TUBE,0.375" OD, 406.6, 293.7 mm Length

TUBE - signal, Replaces: P/N 1289368C3

1шт.

40

1289364C1

HYD TUBE

TUBE - pressure, pilot

1шт.

41

1289228C1

BRACKET

- support, tube

1шт.

42

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Replaces P/N 413-58, 1/2" long bolt Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

299400C1

CLAMP

- tube

1шт.

45

329-105

NUT,5/16"-18, G8

1шт.

46

1968092C1

LARGE PLATE

CLAMP - tube

2шт.

47

615-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

48

1968090C1

CLAMP

- tube, pilot

1шт.

50

1342116C1

HOSE,12.7mm ID x 476.25mm L, SAE 100R2

- supply, cylinder

1шт.

54

1968049C1

HYD TUBE

TUBE - lube cylinder external

1шт.

Prior to Transmission S/N AJB0055133

1шт.

54

1349444C1

HYD TUBE,0.375" OD, 518, 61 mm Length

TUBE - lubrication, draft cylinder

1шт.

Transmission S/N AJB0055133 and after

1шт.

59

1289207C1

HYD TUBE

TUBE - lube, internal

1шт.

Prior to Transmission S/N AJB0055133

1шт.

59

1342864C2

TUBE,499.2, 135 mm Length

- lube, internal

1шт.

Transmission S/N AJB0055133 and after

1шт.

60

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

ADAPTER - straight, 13/16 inch thread, Includes: Ref. 61

1шт.

Prior to Transmission S/N AJB0055133

1шт.

60

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 3/8 inch thread, Includes: Ref. 61

1шт.

Transmission S/N AJB0055133 and after

1шт.

61

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

64

REF

INSTRUCTION

CYLINDER ASSEMBLY - control, hitch, See Figure 8-048

1шт.

65

1957863C1

SEALING RING,30.79mm ID x 36.12mm OD x 3.05mm Thk

RING - seal

1шт.

66

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

2шт.

66

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

67

NSS

NOT SOLD SEPARAT

HOSE - drain, 330 mm, cut from P/N 427683C2, shown below

3шт.

Prior to transmission S/N AJB0060500

1шт.

68

NSS

NOT SOLD SEPARAT

HOSE - drain, 510 mm, cut from P/N 427683C2, shown below

1шт.

Prior to transmission S/N AJB0060500

1шт.

69

1334641C1

HOSE,6.35 mm ID x 330.00 mm

- 1/4-6.3 x 13 inch (330 mm) long, cut from P/N 427683C2, shown below

3шт.

Transmission S/N AJB0060500 and after

1шт.

70

1289479C1

TEE

- hose, barbed

2шт.

71

1289484C1

HOSE

- 1/4-6.3 x 4-9/16 inch, (115 mm) long, cut from P/N 427683C2, shown below

1шт.

Transmission S/N AJB0060500 and after

1шт.

75

1289479C1

TEE

- hose, barbed

1шт.

76

1345983C1

SUPPORT

BRACKET - hose if equipped

1шт.

77

1345984C1

CLAMP

- hose if equipped

1шт.

78

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

if equipped Hex, M8 x 25, 10.9, Full Thd

1шт.

79

895-10008

WASHER,M8 x 16 x 1.6

- flat, 8 mm if equipped

2шт.

80

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10, If equipped

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - 1/4-6.3 ID x 600 inch, (15240 mm) long

1шт.
