Запчасти Case IH 7130 (8-020) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE (08) - HYDRAULICS

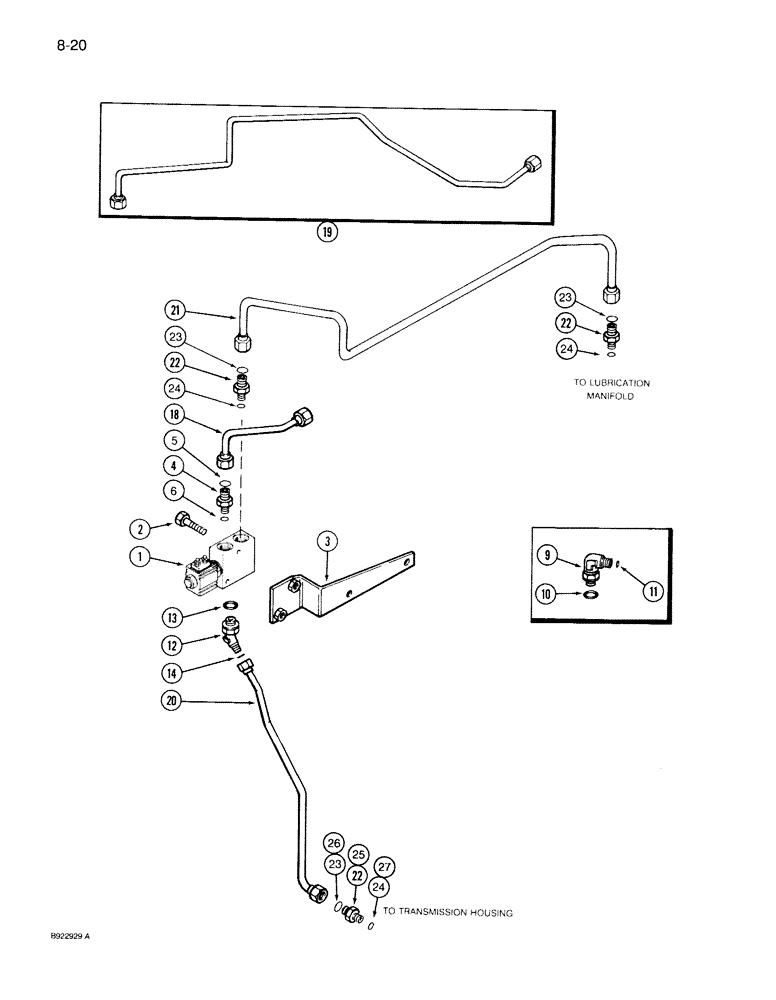

Схема запчастей Case IH 7130 - (8-020) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE (08) - HYDRAULICS
1
25
23
4
19
21
22
27
3
23
10
18
5
12
2
20
24
24
9
24
13
11
14
6
22
26
23
22

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, See Figure 8-024

1шт.

2

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

if equipped Hex, M6 x 35, 8.8

2шт.

3

1289347C1

BRACKET

- mounting valve if equipped

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 5-6 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90°, 11/16-16 face x 9/16-18 inch adj O-ring, Includes: Ref. 10-11

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45°, 11/16-16 face x 9/16-18 inch adj O-ring, Includes: Ref. 13-14

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

1289343C1

HYD TUBE

TUBE - supply, valve with hitch

1шт.

19

1978464C1

HYD TUBE

TUBE - supply without hitch

1шт.

20

1289345C1

HYD TUBE

TUBE - pressure, valve

1шт.

21

1348291C1

HYD TUBE,0.375" OD, 540.3, 172 mm Length

TUBE - valve return, Replaces: 1289344C1

1шт.

22

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 23-24 11/16"-16 ORFS x 9/16"-18 ORB

2-3шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 26-27 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
