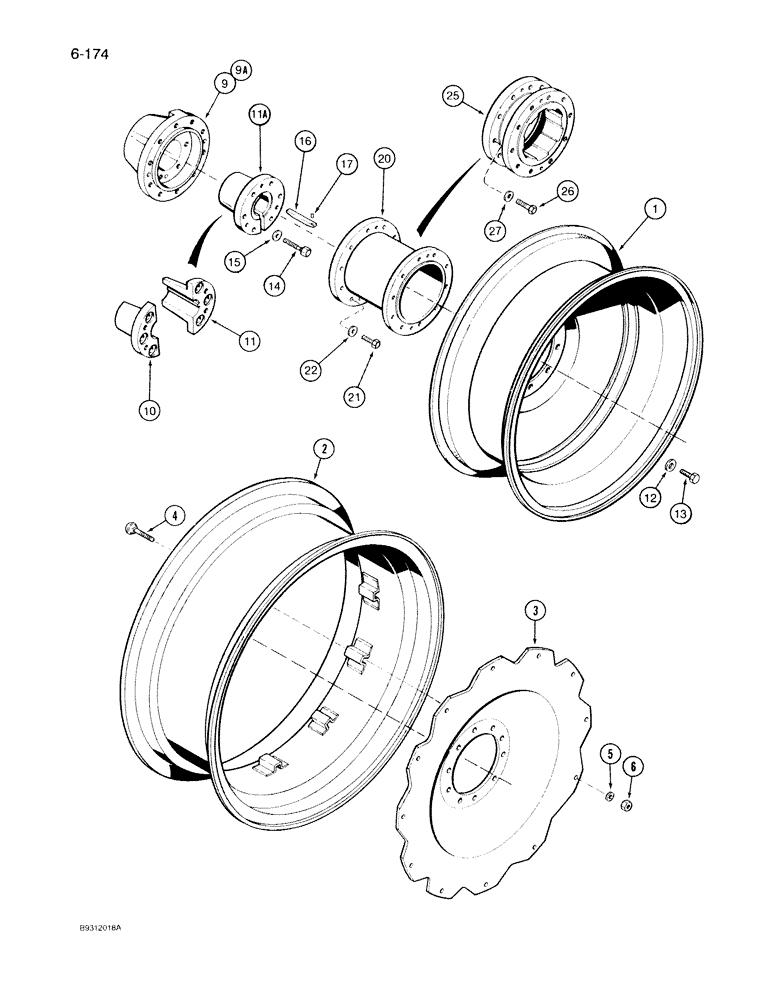

Запчасти Case IH 7130 (6-174) - STEEL DUAL WHEELS, 38, 42 AND 46 INCH RIMS (06) - POWER TRAIN

A67729

WHEEL ASSY.

WHEEL ATTACHMENT - dual, Machinery Item, Includes: Ref. 1 P/N 1334330C1 and Ref. 2 thru 6

1шт.

1

1334330C1

WHEEL

- rear, steel, For 18.4-38 tire

2шт.

A67731

WHEEL ASSY.

WHEEL ATTACHMENT - dual, Machinery Item, Includes: Ref. 1 P/N 1334331C1 and Ref. 2 thru 6

1шт.

1

1334331C1

RIM

WHEEL - rear, steel, For 20.8-38 tire

2шт.

A67791

WHEEL ASSY.

WHEEL ATTACHMENT - dual, Machinery Item, Includes: Ref. 1 P/N 1334332C1 and Ref. 2 thru 6

1шт.

1

1334332C1

RIM

WHEEL - rear, steel, For 18.4-42 tire

2шт.

A67934

RIM

WHEEL ATTACHMENT - dual, Machinery Item, Includes: Ref. 1 P/N 1334333C1 and Ref. 2 thru 6

1шт.

1

1334333C1

RIM

WHEEL - rear, steel, For 20.8-42 tire

2шт.

A67947

WHEEL ASSY.

WHEEL ATTACHMENT - daul, Machinery Item, Includes: Ref. 1 P/N 1348319C1 and Ref. 2 thru 6

1шт.

1

1348319C1

WHEEL ASSY.

WHEEL - rear, steel, For 18.4-46 tire

2шт.

1340519C1

WHEEL ATTACHMENT - dual, Machinery Item, Includes: Ref. 1 P/N 123408A1 and Ref. 2 thru 6

1шт.

1

123408A1

RIM

WHEEL - rear, steel, For 14.9-46 tire

2шт.

1340519C1

WHEEL ATTACHMENT - dual, Machinery Item, Includes: steel rear wheel assembly for 14.9-46 tires and Ref. 2 thru 6

1шт.

1978546C1

WHEEL ASSY.

WHEEL ASSEMBLY - rear, steel, For 14.9-46 tire

2шт.

2

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

3

NSS

NOT SOLD SEPARAT

DISK - wheel

1шт.

4

433-1072

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 4-1/2 inch

12шт.

5

NSS

NOT SOLD SEPARAT

WASHER - flat, hardened, 21/32 x 1-5/16 x 3/16 inch

12шт.

6

425-1010

NUT,5/8"-11, G5

12шт.

A67687

HUB

ATTACHMENT - wheel, 10 bolt, Machinery Item, Includes: Ref. 9-17

1шт.

9

A180916

HUB

- wheel, used with split bushings

2шт.

9a

1348204C1

HUB

- wheel, used with one piece bushing

2шт.

10

1334526C2

BUSHING

- wheel, 4 inch ID, two piece, plain half

2шт.

11

1334525C2

BUSHING

- wheel, keyed, 4 inch ID, two piece, keyed half

2шт.

11a

1289233C1

HUB

BUSHING - wheel, 4 inch ID, one piece, if used

2шт.

12

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

20шт.

13

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, Grade 8

20шт.

14

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing

12шт.

15

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

12шт.

16

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

17

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

A67939

COUPLING

SPACER KIT - dual wheel, 13 inch, Machinery Item, Used with 120 inch axles only, Includes: Ref. 20-22

1шт.

20

1342141C1

SPACER

- dual wheel

2шт.

21

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

20шт.

22

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

20шт.

A187233

HUB

SPACER KIT - dual wheel, 5 inch, Machinery Item, Includes: Ref. 25-27

1шт.

25

1342168C1

HUB

SPACER - wheel, rear

2шт.

26

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

2шт.

27

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

20шт.
