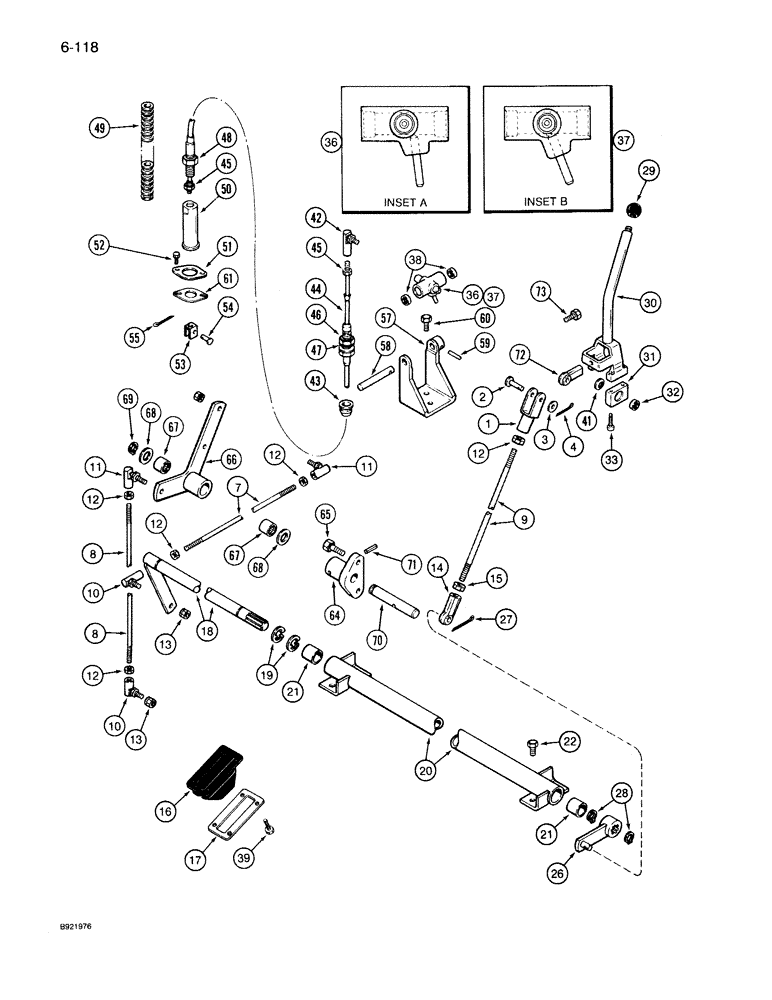

Запчасти Case IH 7130 (6-118) - TRANSMISSION SHIFT CONTROL, PRIOR TO P.I.N. JJA0018865 (06) - POWER TRAIN

1

96462C1

CLEVIS COUPLING

CLEVIS - link, speed link

1шт.

2

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN - clevis, 3/8 x 1-13/32 inch

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

4

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

7

1283924C1

ROD

- link, speed link No. 2

1шт.

8

1283926C1

ROD

- link, speed link No. 3

1шт.

9

1283924C1

ROD

- link, speed link No. 4

1шт.

10

118601C1

BALL JOINT

JOINT ASSEMBLY - ball

2шт.

11

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ASSEMBLY - ball

2шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

5шт.

On the illustration, Ref. 12, at the top of rod, should be Ref. 15.

1шт.

13

131-1133

NUT,3/8"-24, GC

NUT - hex lock, 3/8 inch NF

4шт.

14

1283151C1

END ASSY.,3/8" - 24, LH Threads

END ASSEMBLY - ball joint, speed link No. 1

1шт.

15

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

3шт.

16

96843C2

BOOT

- speed shaft

1шт.

17

96807C1

PLATE ASSY.

FLANGE - boot

1шт.

18

96545C2

SHAFT

- speed

1шт.

19

373522R1

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

2шт.

20

96549C1

BRACKET

HUB ASSEMBLY - support, shaft, Includes: Ref. 21

1шт.

21

1267723C1

BUSHING

- hub

2шт.

22

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

26

96588C1

LEVER

- speed

1шт.

27

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

28

24577R1

SNAP RING,#84, Ext

Ring, Snap, #84, Ext

2шт.

29

1280096C1

KNOB

- handle

1шт.

30

96487C4

HANDLE

- control, shift

1шт.

31

96580C3

BEARING HOUSING

BLOCK ASSEMBLY - bearing, Includes: Ref. 32

2шт.

32

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

1шт.

33

96637C1

HEX SOC SCREW,M4 x 35mm

BOLT - hex socket, 4 x 35 mm

4шт.

36

1340024C2

TRUNNION

ASSEMBLY - pivot, Used on 4-speed-reverse tractors only, See Inset A, Includes: Ref. 38, Replaces: P/N 1340024C1

1шт.

Ref. 36 - Has been upgraded to 1340024C2, which includes 124591A1 Hardened Pin.

1шт.

37

96489C4

TRUNNION

ASSEMBLY - pivot, Used on 2-speed-reverse tractors only, See Inset B, Includes: Ref. 38

1шт.

38

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

- housing

2шт.

39

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

41

96982C1

WASHER

- curved handle

2шт.

42

281800C2

BALL JOINT

JOINT ASSEMBLY - ball

1шт.

43

96988C1

GROMMET

- cable

1шт.

44

96612C1

CABLE ASSY.

CABLE ASSEMBLY - shift, forward/neutral/reverse, Includes: Ref. 45-48

1шт.

45

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

46

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

47

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

48

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

49

118156C1

CONDUIT

- cable

1шт.

50

1340478C1

HOUSING

- support, cable

1шт.

51

1280055C1

FLANGE

- housing

1шт.

52

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, 6 mm - 1.00 x 16 mm, class 10.9

2шт.

53

96790C2

CLEVIS COUPLING

CLEVIS - cable

1шт.

54

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis

1шт.

55

932766R1

COTTER PIN,M2 x 12

PIN - cotter, 2 x 12 mm

1шт.

57

96582C1

SUPPORT ASSY.

SUPPORT - handle, shift

1шт.

58

96585C1

SHAFT

- trunnion

1шт.

59

30266R1

PIN,M4 x 20, Coiled

- coiled spring, 4 x 20 mm

1шт.

60

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

61

97238C1

SPACER

- flange, housing

1шт.

64

96992C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - bell crank

1шт.

65

30665R2

BOLT,Hvy Hex, M10 x 1.5 x 30mm, Cl 10.9

- hex flange, 10 x 30 mm

2шт.

66

1283930C1

LEVER

ASSEMBLY - bell crank, Includes: Ref. 67

1шт.

67

97002C1

BEARING CUP,Needle, 19.05mm ID x 25.4mm OD x 20.62mm W

- needle

2шт.

68

1251551C1

WASHER

- flat, shaft

2шт.

69

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

70

1283945C1

SHAFT

- bell crank

1шт.

71

30394R1

LOCK PIN,M6 x 50, Slotted

PIN - slotted spring, 6 x 50 mm

1шт.

72

97202C1

BALL JOINT

END - rod

1шт.

73

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

- hex, 3/8 NF x 7/8 inch

1шт.
