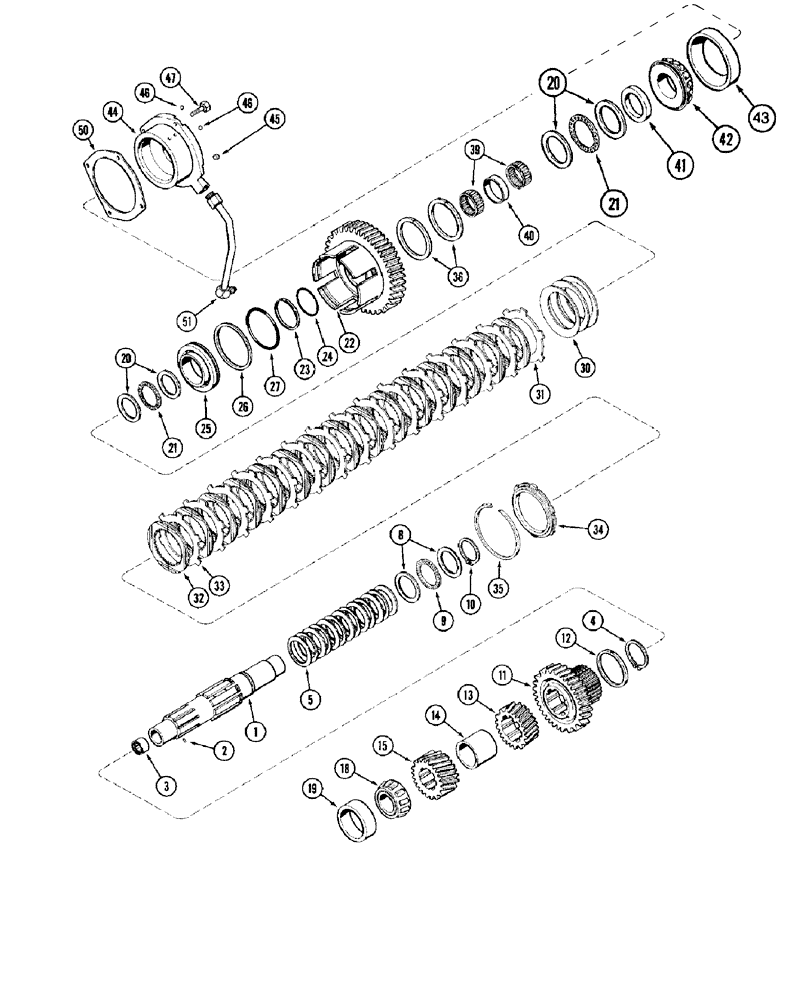

Запчасти Case IH 7130 (6-106) - TRANSMISSION, RANGE COUNTERSHAFT (06) - POWER TRAIN

1

1954059C2

SHAFT

ASSEMBLY - counter, Includes: Ref. 2

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

Replaces: 20747R1 3/32" x 5/16", Coiled

3шт.

3

1277191C1

NEEDLE BEARING

ASSEMBLY - roller

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

RING - retainer, external

1шт.

5

1286012C2

BELLEVILLE WASHER

- return, Belleville

13шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, needle, 2.50 inch ID

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle, 2.50 inch ID

1шт.

10

583564R1

SNAP RING,#250, 2.356, Ext

RING - retainer

1шт.

11

1285978C1

PINION

GEAR - driven, medium range, 39 tooth

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

1шт.

13

1285980C1

PINION

GEAR - driven, high range, 24 tooth

1шт.

14

1286041C2

SPACER

- gear, Replaces: P/N 1286041C1

1шт.

15

1285990C1

PINION

GEAR - driver, constant mesh, 23T

1шт.

18

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

CONE - bearing

1шт.

19

84987C1

BEARING ASSY

CUP - bearing

1шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, needle, 2.25 inch ID

4шт.

Ref. 20 and 21 - the quantities are correct but the illustratioin is wrong. Another Ref. 21 thrust bearing and two Ref. 20's thrust washers should be shown between Ref. 41 and 39. See illustration in the 7200 series parts book.

1шт.

21

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

BEARING ASSEMBLY - thrust, needle, 2.25 inch ID

2шт.

Ref. 20 and 21 - the quantities are correct but the illustratioin is wrong. Another Ref. 21 thrust bearing and two Ref. 20's thrust washers should be shown between Ref. 41 and 39. See illustration in the 7200 series parts book.

1шт.

22

1285968C3

GEAR

- driven, low range

1шт.

1285968C3 subs to gear 297134A1 and seal ring 297418A2. However, seal ring 1286028C2 is also used with this gear. There are two stepped seal ring grooves on the gear. The teflon rings go in the shallow groove and the steel rings go in the deep grooves. See section 6008 of MX Magnum service manual for additional information.

1шт.

23

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

- driven, low range

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, low

1шт.

25

1285999C2

PISTON ASSY.

PISTON - clutch, low

1шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, low

1шт.

30

93129C1

BELLEVILLE WASHER

- Belleville, cushion

3шт.

31

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, spring

1шт.

32

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction

15шт.

33

92934C2

DISC

- separator, clutch

14шт.

34

1342645C2

CLUTCH DISC

DISC - backing, clutch, Replaces: P/N 1285994C1

1шт.

35

1285996C1

SNAP RING,151mm OD, Internal

RING - retaining, plate

1шт.

36

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

- gear, low range

2шт.

39

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING ASSEMBLY - needle, caged

2шт.

40

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

- bearing

1шт.

41

1286038C1

SPACER

- bearing, front

1шт.

42

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

CONE - bearing

1шт.

43

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - bearing

1шт.

44

1286119C2

CAGE

ASSEMBLY - bearing

1шт.

Prior to Transmission S/N AJB0055133

1шт.

44

1342622C1

BEARING HOUSING

CAGE ASSEMBLY - bearing, Includes: Ref. 45-46

1шт.

Transmission S/N AJB0055133 and after

1шт.

45

1286084C1

PIN,12.02mm OD x 11mm L

- dowel, 12 x 11 mm

1шт.

46

30725R1

BALL,7mm Dia

- steel, 7 mm diameter, If equipped

1шт.

NEED TO ORDER 2 BALLS, 30725R1, EVEN THOUGH IT ONLY SPECIFIES 1. ECN C910353 DELETES THESE ALL TOGETHER ON THE LATER 7200 MODELS

1шт.

47

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

4шт.

93277C1

SHIM KIT

- cage, Includes: Ref. 50

1шт.

50

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

Cage, 2 in kit 0.08mm Thk

1шт.

50

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

Cage, 2 in kit 0.10mm Thk

1шт.

50

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

Cage, 2 in kit 0.13mm Thk

1шт.

50

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

Cage, 2 in kit 0.30mm Thk

1шт.

50

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

Cage, 2 in kit 0.76mm Thk

1шт.

51

1286087C1

TUBE

- rear, low clutch

1шт.
