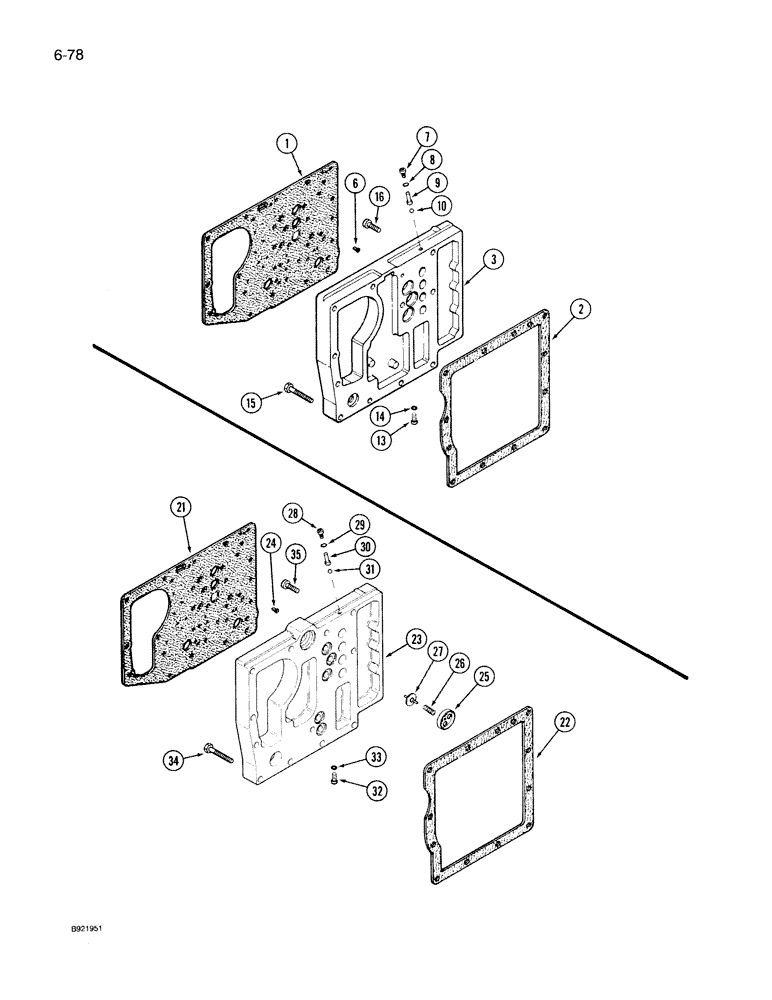

Запчасти Case IH 7130 (6-078) - TRANSMISSION CONTROL VALVE ASSEMBLY, MOUNTING PLATE, FOUR SPEED REVERSE VALVES (06) - POWER TRAIN

1

1349012C2

GASKET

- body plate to mounting plate; W/O Reduced Shift Lever Effort Kit

1шт.

1

1994583C2

GASKET,0.53mm Thk

- body plate to mounting plate: W/ Reduced Shift Lever Effort Kit and all 7100 Tractors After S/N AJB0059984

1шт.

2

144143C2

GASKET,0.79mm Thk

- mounting plate to clutch housing

1шт.

3

1981290C1

PLATE ASSY.

PLATE ASSEMBLY - mounting, Includes: Ref. 6-10

1шт.

6

133519C1

SCREEN

- filter

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 8 Hex Soc, 3/8"-24 ORB

1шт.

Prior to Transmission S/N AJB0055133

1шт.

8

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

9

47-212

RIVET,FH, 1/8" x 3/4"

- flat head steel, 1/8 x 3/4 inch

1шт.

Prior to Transmission S/N AJB0055133

1шт.

10

511-1060

BALL,6mm Dia

Steel, Replaces 30935R1 6mm Dia

1шт.

Prior to Transmission S/N AJB0055133

1шт.

13

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 14 Hex Soc, 3/8"-24 ORB

1шт.

Prior to Transmission S/N AJB0055133

1шт.

14

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.

16

905261R1

HEX SOC SCREW,M10 x 40mm, Cl 12.9

BOLT - hex socket, 10 x 40 mm, Grade 12.9

2шт.

21

1349012C2

GASKET

- body plate to mounting plate, prior to transmission S/N AJB0059984

1шт.

21

1994583C2

GASKET,0.53mm Thk

- body plate to mounting plate, transmission S/N AJB059984 and after

1шт.

22

144143C2

GASKET,0.79mm Thk

- mounting plate to clutch housing

1шт.

Transmission S/N AJB0055133 and after

1шт.

1994609C2

LARGE PLATE

PLATE ASSEMBLY - mounting, Includes: Ref. 23-31

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

Transmission S/N AJB0055133 and after

1шт.

24

133519C1

SCREEN

- filter

1шт.

Transmission S/N AJB0055133 and after

1шт.

25

1981235C1

PLUG

- valve, poppet

1шт.

Transmission S/N AJB0055133 and after

1шт.

26

1975424C1

SPRING

- check valve

1шт.

Transmission S/N AJB0055133 and after

1шт.

27

1975438C1

VALVE

- check

1шт.

Transmission S/N AJB0055133 and after

1шт.

28

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 29 Hex Soc, 3/8"-24 ORB

2шт.

Transmission S/N AJB0055133 and after

1шт.

30

47-212

RIVET,FH, 1/8" x 3/4"

- flat head steel, 1/8 x 3/4 inch

1шт.

Transmission S/N AJB0055133 and after

1шт.

31

511-1060

BALL,6mm Dia

Replaces 30935R1 6mm Dia

1шт.

Transmission S/N AJB0055133 and after

1шт.

32

76349

PLUG,9/16" - 18 ORB

3шт.

Transmission S/N AJB0055133 and after

1шт.

34

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 x 55 mm, class 10.9

4шт.

Transmission S/N AJB0055133 and after

1шт.

35

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW, , Replaces 905261R1 Hex Soc Hd, M10 x 40, 12.9

1шт.

1543342C2

CONVERSION PACKAGE

KIT - low effort shift, Includes: P/N 1994609C2

1шт.

Prior to Transmission S/N AJB0055133

1шт.

Transmission S/N AJB0055133 and after

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Transmission S/N AJB0055133 and after

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

Transmission S/N AJB0055133 and after

1шт.
