Запчасти Case IH 7130 (6-054) - TRANSMISSION, INTERNAL CONTROL (06) - POWER TRAIN

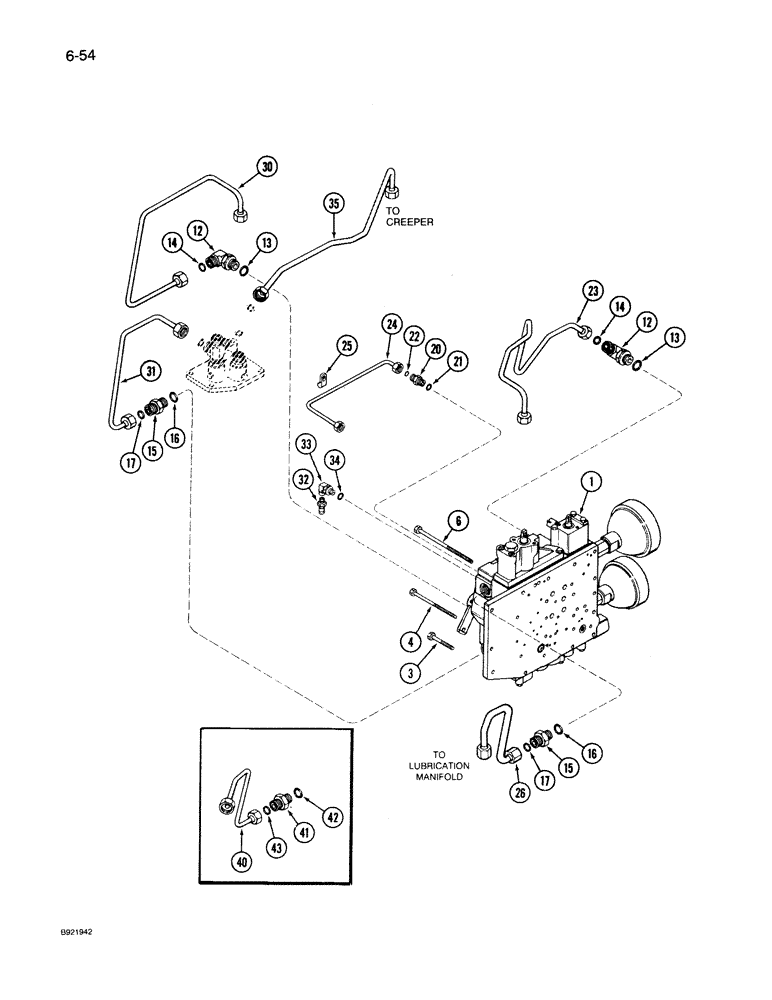

Схема запчастей Case IH 7130 - (6-054) - TRANSMISSION, INTERNAL CONTROL (06) - POWER TRAIN
31
20
1
42
12
35
16
24
34
43
33
14
16
17
25
22
3
15
40
13
13
30
12
26
17
6
21
23
41
4
32
14
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control without creeper See Figures 6-058, 6-078, prior to Transmission Serial Number AJB0055133

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - control with creeper See Figures 6-058, 6-078, prior to Transmission Serial Number AJB0055133

1шт.

3

REF

INSTRUCTION

BOLT - hex, 10 x 65 mm See Figure 6-076, 6-094, prior to Transmission Serial Number AJB0055133

3шт.

4

REF

INSTRUCTION

BOLT - hex, 8 x 120 mm, class 10.9 See Figure 6-076, 6-094, prior to Transmission Serial Number AJB0055133

3шт.

4

REF

INSTRUCTION

BOLT - hex, 8 x 140 mm, class 10.9 See Figure 6-076, 6-094, prior to Transmission Serial Number AJB0055133

8шт.

6

REF

INSTRUCTION

BOLT - hex, 10 x 175 mm See Figure 6-076, 6-094, prior to Transmission Serial Number AJB0055133

2шт.

12

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90°, 1-14 face x 7/8-14 inch adj O-ring, prior to Transmission Serial Number AJB0055133, Includes: Ref. 13, 14

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end, Prior to Transmission S/N AJB0055133

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

1шт.

15

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Prior to Transmission S/N AJB0055133, Includes Ref. 16, 17 1"-14 ORFS x 7/8"-14 ORB

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end, Prior to Transmission S/N AJB0055133

1шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

1шт.

20

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - short, With creeper, prior to Transmission Serial Number AJB0055133, Incl Ref. 21, 22 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -012, 90 Duro, .364" ID x .070" Thk

1шт.

23

1968016C2

HYD TUBE

TUBE - inlet, valve, prior to Transmission Serial Number AJB0055133

1шт.

24

1968170C1

HYD TUBE

TUBE - jumper with creeper, prior to Transmission Serial Number AJB0055133

1шт.

25

299407C1

CLAMP

- tube, prior to Transmission Serial Number AJB0055133

1шт.

26

1348287C1

HYD TUBE,0.625" OD, 399.7, 343.5 mm Length

TUBE - clutch, master, prior to Transmission Serial Number AJB0055133

1шт.

30

1968018C1

HYD TUBE

TUBE - clutch, odd, prior to Transmission Serial Number AJB0055133

1шт.

31

1968019C1

HYD TUBE

TUBE - clutch, even, prior to Transmission Serial Number AJB0055133

1шт.

32

H434164

COUPLING

COUPLER - quick disconnect, prior to Transmission Serial Number AJB0055133

1шт.

33

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

- 90°, 7/16-20 adj O-ring boss x 1/8 inch fem PT, prior to Transmission Serial Number AJB0055133, Includes: Ref. 34

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Prior to transmission s/n AJB0055133

1шт.

35

1968006C1

TUBE

- lubrication, creeper drive, prior to Transmission Serial Number AJB0055133

1шт.

40

1968017C2

HYD TUBE

TUBE - clutch, master, prior to Transmission Serial Number AJB0044915, Serial Range: -AJB0044915

1шт.

41

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Prior to Transmission S/N AJB0044915, Includes Ref. 42, 43 1"-14 ORFS x 7/8"-14 ORB, Serial Range: -AJB0044915

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Prior to Transmission S/N AJB0044915, Serial Range: -AJB0044915

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

prior to Transmission S/N AJB0044915 -016, 90 Duro, .614" ID x .070" Thk, Serial Range: -AJB0044915

1шт.

Выбрано товаров: 29
