Запчасти Case IH 7130 (6-008) - TRANSMISSION SPEED, INPUT SHAFT WITHOUT CREEPER, PRIOR TO TRANSMISSION S/N AJB0051028 (06) - POWER TRAIN

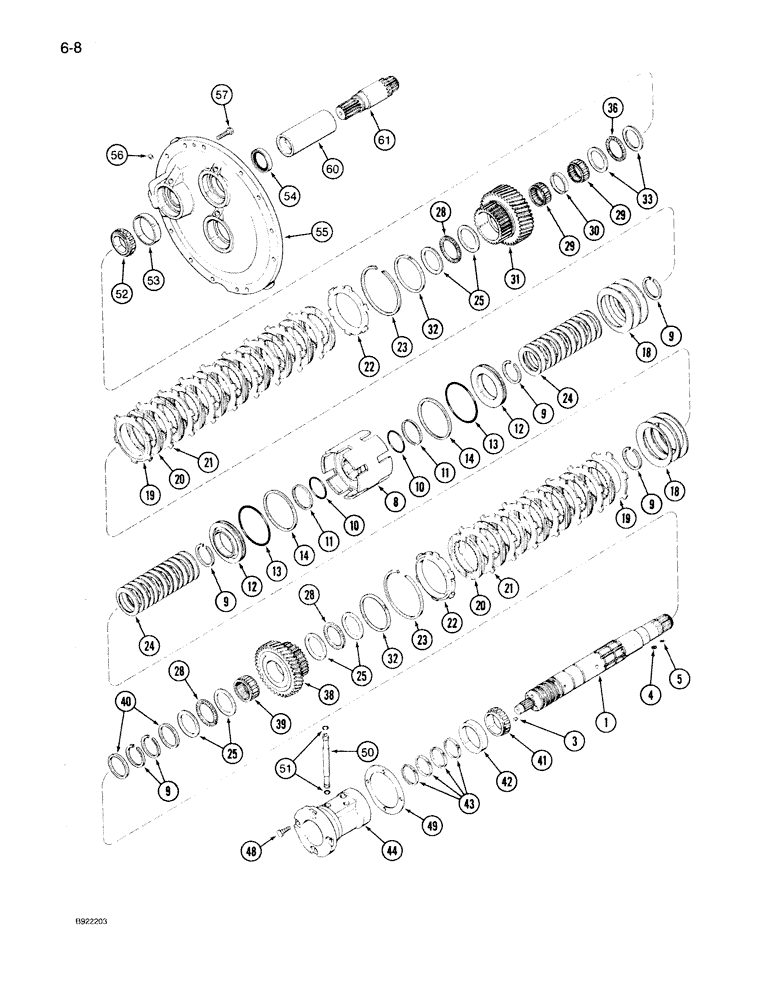

Схема запчастей Case IH 7130 - (6-008) - TRANSMISSION SPEED, INPUT SHAFT WITHOUT CREEPER, PRIOR TO TRANSMISSION S/N AJB0051028 (06) - POWER TRAIN
9
20
19
9
44
13
42
61
18
10
4
20
9
14
23
12
10
29
24
9
21
55
52
3
12
43
24
23
28
49
29
32
19
5
18
38
32
50
25
39
1
31
14
48
56
36
25
33
28
60
54
40
21
11
28
30
22
13
9
41
51
8
25
57
22
53
11

Артикул

Название

Примечание

Количество

1

1963893C1

SHAFT

ASSEMBLY - input, Includes: Ref. 3-5

1шт.

3

1286085C1

LARGE PIN,10.02mm OD x 11mm L

PIN - dowel

4шт.

4

1963888C1

PIN,12.7mm OD x 14mm L

- slotted spring

2шт.

5

20747R1

PIN,3/32" x 5/16", Coiled

5шт.

8

1342496C1

CLUTCH HOUSING

CARRIER - clutch, Replaces: P/N 1285964C1

1шт.

1342496C1 odd/even clutch carrier, requires 7 friction plates and a thicker backing plate P/N 1342854C2, 16.45 mm.

1шт.

1285964C1 clutch carrier was changed to a 1285964C2. The C2 is a direct fit and will contain the same number of plates as the C1. No other parts are required when subbing to the C2 carrier. If the present sub from the 1285964C1 to the 1342496C1 is used, a new even gear 1342495C1 is also required, otherwise the lube seal in the even gear will not engage into the clutch backing plate.

1шт.

1342496C1 carrier was first used when the number of friction plates were reduced from 9 to 7 in the even clutch. The prior carrier 1285964C1 uses 9 plates in the even clutch and 7 in the odd. Both 1285964C1 and 1342496C1 have 2 holes per clutch serviced for a total of 4 holes. 93304C2 is the current carrier and has one hole per clutch serviced for a total of 2 holes and is 4.88" tall. All three numbers are good part numbers. The 1342496C1 has a total of 4 holes and is 4.88" tall. The 1285964C1 has a to

1шт.

9

93350C1

RING

- retaining, external

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, low clutch inner

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

- piston, clutch

2шт.

12

1285998C1

PISTON

- clutch, shift

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, low clutch outer

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston, shift

2шт.

18

93129C1

BELLEVILLE WASHER

- Belleville, cushion, clutch

6шт.

19

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, spring

2шт.

20

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction Replaces: P/N 92935C4

14шт.

21

92934C2

DISC

- separator, clutch

14шт.

22

1285994C1

CLUTCH DISC

DISC - backing, clutch

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

RING - retainer, plate

2шт.

24

1286012C2

BELLEVILLE WASHER

- Belleville, piston return

26шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, bearing

6шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING ASSEMBLY - needle, caged

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

- bearing, input

1шт.

31

1285988C1

GEAR WHEEL

GEAR - second, fourth and sixth 37 teeth

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, bearing

2шт.

36

K620185

THRUST BEARING

BEARING ASSEMBLY - thrust, needle

1шт.

38

1285985C1

GEAR

GEAR - odd/even clutch and fifth 34 teeth

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING ASSEMBLY - needle, caged

1шт.

40

1286039C1

SPACER

- bearing

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

CONE ASSEMBLY - bearing

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

CUP - bearing

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

- seal, input shaft

5шт.

44

1963895C1

CAGE

- bearing, input

1шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

4шт.

94654C1

SHIM

KIT - bearing, Includes: Ref. 49

1шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

Bearing, 2 in kit 0.080mm Thk

1шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

Bearing, 2 in kit 0.100mm Thk

1шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

Bearing, 2 in kit 0.130mm Thk

1шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

Bearing, 2 in kit 0.300mm Thk

1шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

Bearing, 2 in kit 0.760mm Thk

1шт.

50

1286059C1

TUBE,19.05 mm OD, 138.7 mm Length

- lube

3шт.

51

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

6шт.

52

627639R1

BEARING ASSY,50.01mm ID x 20.64mm W

CONE ASSEMBLY - bearing

1шт.

53

ST970

BEARING SET,88.92mm OD x 16.56mm W

CUP - bearing

1шт.

54

389407R2

OIL SEAL,46.86mm ID x 66.78mm OD x 8.33mm Thk

shaft, input, shaft dia. is 1-7/8", OD is 2-5/8"

1шт.

55

1286118C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - bearing, front, Includes: Ref. 56

1шт.

56

20229R1

DOWEL,1/2" x 1/2"

PIN - dowel, 1/2 x 1/2 inch

8шт.

57

30044R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 x 40 mm

11шт.

60

92874C2

SPLINED COUPLING,13T

COUPLING - shaft input

1шт.

61

92875C2

SHAFT

- driven, damper

1шт.

Выбрано товаров: 53
