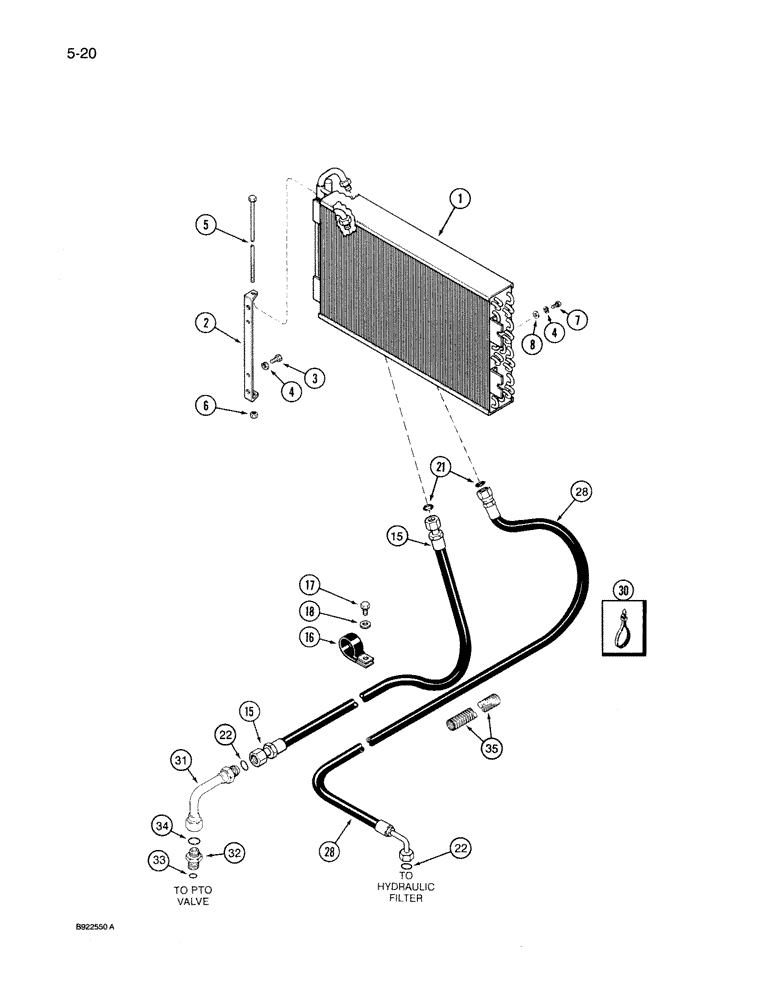

Запчасти Case IH 7130 (5-020) - HYDRAULIC OIL COOLER, P.I.N. JJA0027701 AND AFTER (05) - STEERING

1

1348392C1

COOLER, OIL

COOLER hydraulic oil, Replaces: P/N A189495

1шт.

2

A160194

SUPPORT

BRACKET pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

103632A1

BOLT

BOLT hex, 1/4 NC x 12-3/4 inch

1шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

15

1340524C1

HOSE ASSY.,19.05mm ID x 2781mm L, SAE 100R2

HOSE cooler supply

1шт.

16

28009R1

CLAMP

closed

1шт.

17

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 x 16 mm

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

28

1348339C1

HOSE ASSY.,19.05mm ID x 3226mm L, SAE 100R1

HOSE cooler return; One Straight End, One 90 Dgr End

1шт.

P.I.N. JJA0039446 and After.

1шт.

28

1348296C1

HOSE ASSY.,19.05mm ID x 3429mm L, SAE 100R2

HOSE cooler return; Straight Ends

1шт.

P.I.N. JJA0027701 through JJA0039445.

1шт.

30

306132C1

CABLE TIE,14.5" L

STRAP tie, nylon, 14 inch

1шт.

31

1348391C1

HYD TUBE,0.75" OD, 106.1, 85 mm Length

TUBE cooler supply

1шт.

P.I.N. JJA0039446 and After.

1шт.

32

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Refs. 33-34 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

1334593C3

TUBE,31.8 mm ID, 36.8 mm OD, 500 mm Length

TUBING corrugated

1шт.
