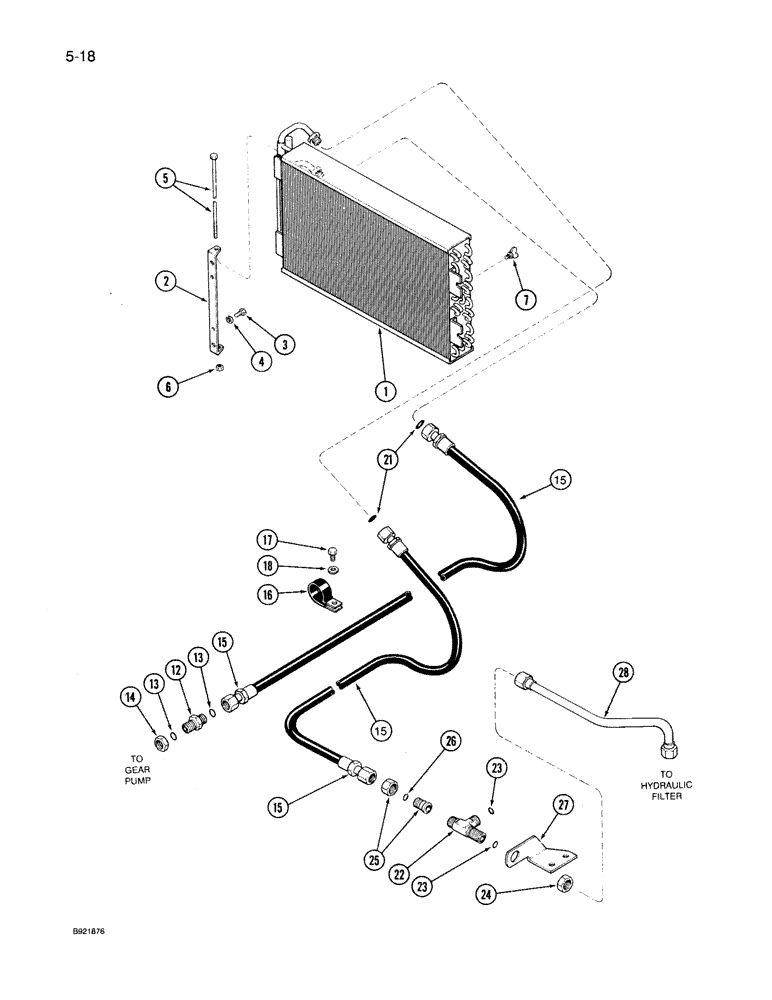

Запчасти Case IH 7130 (5-018) - HYDRAULIC OIL COOLER, PRIOR TO P.I.N. JJA0027701 (05) - STEERING

1

A184765

COOLER ASSY.

COOLER oil

1шт.

2

A160194

SUPPORT

BRACKET pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

413-4204

BOLT,Hex, 1/4" - 20 x 12-3/4", Gr 5

hex, 1/4 NC x 12-3/4 inch

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

thumb, Serial Range: cooler-radiator

2шт.

12

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

CONNECTOR straight, 1-14 inch thread, Includes: Ref.13

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

201-919

BHD LOCK NUT,1" - 14

NUT, Blkhd, 1"-14

1шт.

15

1334213C1

HOSE ASSY.,15.88mm ID x 2870.2mm L, SAE 100R2

HOSE cooler

2шт.

16

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

retaining, hose

1шт.

17

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 x 16 mm

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

21

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

2шт.

22

201-400

TEE,1 3/16"-12, Blkhd, Br, ORFS

1-3/16-12 inch thread, Includes: Ref. 23

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

24

218-1249

BHD LOCK NUT,1-3/16" - 12

NUT, LOCK, Blkhd, 1 3/16"-12

2шт.

25

201-124

REDUCER,1"-14 Male x 1 3/16"-16 Fem, ORFS

hose, Includes: Ref. 26

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

1289464C1

BRACKET

support

1шт.

28

1289465C1

HYD TUBE

TUBE return, cooler

1шт.
