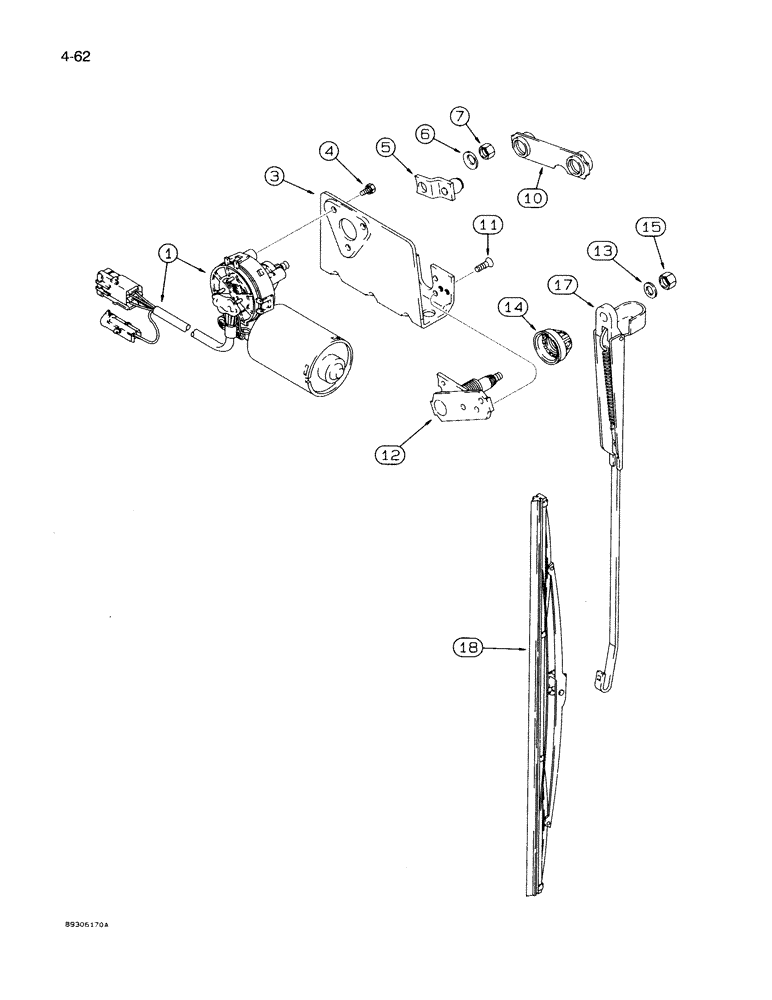

Запчасти Case IH 7130 (4-062) - WINDSHIELD WIPER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A186171

WIPER MOTOR

WIPER ASSEMBLY, windshield, Includes: Refs. 1-12

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR ASSEMBLY, wiper 12V

1шт.

3

N8359

SUPPORT

BRACKET wiper

1шт.

4

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW ASSEMBLY, mounting

3шт.

5

N8360

SUPPORT

ARM drive

1шт.

6

N8361

SPRING WASHER

spring, retaining

1шт.

7

L112090

NUT

hex, 8 mm, retaining

1шт.

10

N8358

LINK

LINK pivot, wiper

1шт.

11

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

bracket

1шт.

12

N14112

SHAFT

wiper, with pivot

1шт.

13

L112089

WASHER

wave

1шт.

14

L112081

CAP

wiper

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

17

A186222

WIPER ARM,Single, 475mm L

ARM wiper

1шт.

18

132024A1

WIPER BLADE

BLADE wiper arm

1шт.

18

132025A1

WIPER BLADE

BLADE windshield wiper refill

1шт.

197560C2

COVER windshield wiper arm

1шт.

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

895-1106

WASHER

1шт.
