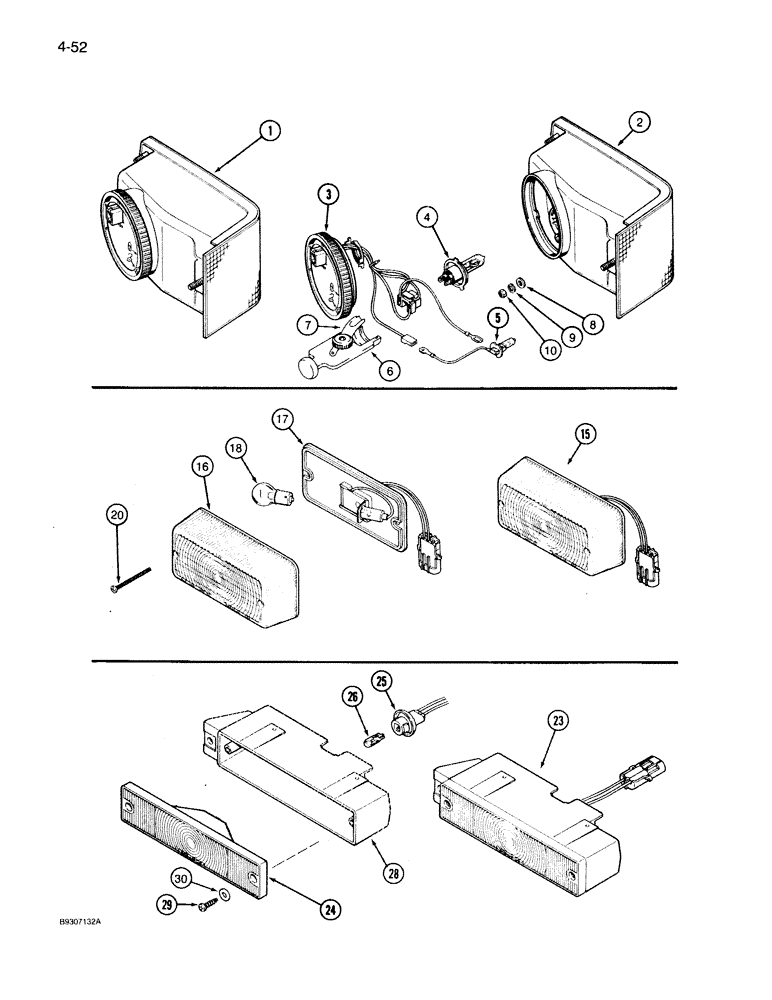

Запчасти Case IH 7130 (4-052) - LAMP ASSEMBLIES, HEAD LAMP, FLASHER WARNING LAMP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

91971C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY, head, left, Includes: Ref. 2 thru 5

1шт.

1

91972C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY, head, right, shown, Includes: Ref. 2 thru 5

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY, head lamp, left

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY, head lamp, right, shown

1шт.

3

1964759C1

COVER ASSY

COVER access

1шт.

4

91967C1

BULB

light, H4

1шт.

P/N 1983288C1, Clip to hold in Bulb, Ref. 4

1шт.

5

92242C1

BULB

light, H3

1шт.

Ref. 5 Includes the Bulb & Pigtail

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Head lamp assembly 1/4", SAE

6шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Head lamp assembly 1/4"

6шт.

10

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC, head lamp assembly

6шт.

15

92185C1

LIGHT ASSY.

LAMP ASSEMBLY, warning, flasher, Includes: Ref. 16 thru 18

4шт.

16

130883C1

LENS

lamp, warning

1шт.

17

NSS

NOT SOLD SEPARAT

BASE lamp

1шт.

18

A41264

BULB,#1156, 12V

Light #1156, 12V

1шт.

20

1276059C1

SELF-TAP SCREW,Pan HD, #10 - 16 x 3"

SCREW pan head, No. 10-16 x 2-1/2 inch long, Flasher warning lamp assembly

8шт.

P/N 1974614C2 is 2.25" long with 10-24 thread.

1шт.

23

A186202

LAMP

ASSEMBLY, tail, , Includes: Ref. 24 thru 26

2шт.

24

NSS

NOT SOLD SEPARAT

LENS lamp, tail

1шт.

25

A186201

WIRE HARNESS

SOCKET bulb

1шт.

26

D71346

TAIL LAMP,12V

BULB light, No. 168

1шт.

28

1283837C1

HOUSING

tail lamp, assembly

1шт.

29

1283774C1

SELF-TAP SCREW,Hi-Lo, Hex Wshr Hd, #8 - 18 x 3/4", Blunt Pt

hex washer head, No. 8 x 3/4 inch, tail lamp assembly

4шт.

30

495-31022

WASHER,#10

Tail lamp assembly #10

4шт.
